TCS9.53-26

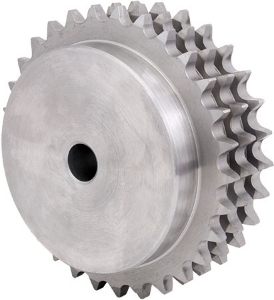

Ondrives Precision Gears and Gearboxes Part number TCS9.53-26

TCS9.53-26

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 3/8" (9.525mm) Pitch (ISO 06B-3), 1/4" (6.35mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS9.53-26 Ondrives Precision Gears and Gearboxes Part number TCS9.53-26

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]26
ISO No.06B-3
Pitch/Lead9.525
Tip Diameter [de]82.7
Ref. Diameter [dp]79.02
Hub Diameter [BD]67
Bore Diameter [di]16
Sprocket Width [E]40
Mass [kg]1.17
