TCS19.05-39

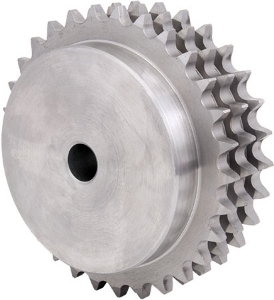

Ondrives Precision Gears and Gearboxes Part number TCS19.05-39

TCS19.05-39

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 3/4" (19.05mm) Pitch (ISO 12B-3), 12.07mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS19.05-39 Ondrives Precision Gears and Gearboxes Part number TCS19.05-39

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]39
ISO No.12B-3
Pitch/Lead19.05
Tip Diameter [de]244.9
Ref. Diameter [dp]236.75
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg17.57

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]39
ISO No.12B-3
Pitch/Lead19.05
Tip Diameter [de]244.9
Ref. Diameter [dp]236.75
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]70
Mass kg17.57
