TCS19.05-15

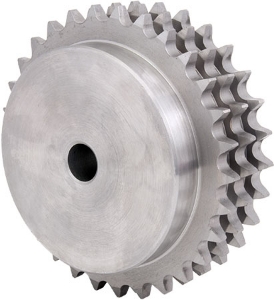

Ondrives Precision Gears and Gearboxes Part number TCS19.05-15

TCS19.05-15

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 3/4" (19.05mm) Pitch (ISO 12B-3), 12.07mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS19.05-15 Ondrives Precision Gears and Gearboxes Part number TCS19.05-15

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]15
ISO No.12B-3
Pitch/Lead19.05
Tip Diameter [de]99.8
Ref. Diameter [dp]91.63
Hub Diameter [BD]71
Bore Diameter [di]20
Sprocket Width [E]70
Mass [kg]2.47
