PSG5.0-20H

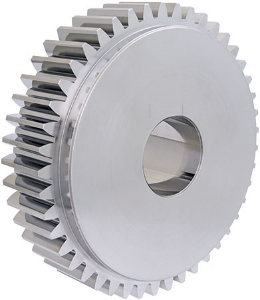

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG5.0-20H

5.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn5
Pressure Angle20°
No. of Teeth [z]20
Torque T₂ [Nm] n1 100 r/min823
Ref. Diameter [d]100
Tip Diameter [da]110
Bore Diameter [di] H720
Hub Diameter [BD]70
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²4.13 x 10-3
Mass [kg]3.199

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn5
Pressure Angle20°
No. of Teeth [z]20
Torque T₂ [Nm] n1 100 r/min823
Ref. Diameter [d]100
Tip Diameter [da]110
Bore Diameter [di] H720
Hub Diameter [BD]70
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²4.13 x 10-3
Mass [kg]3.199
