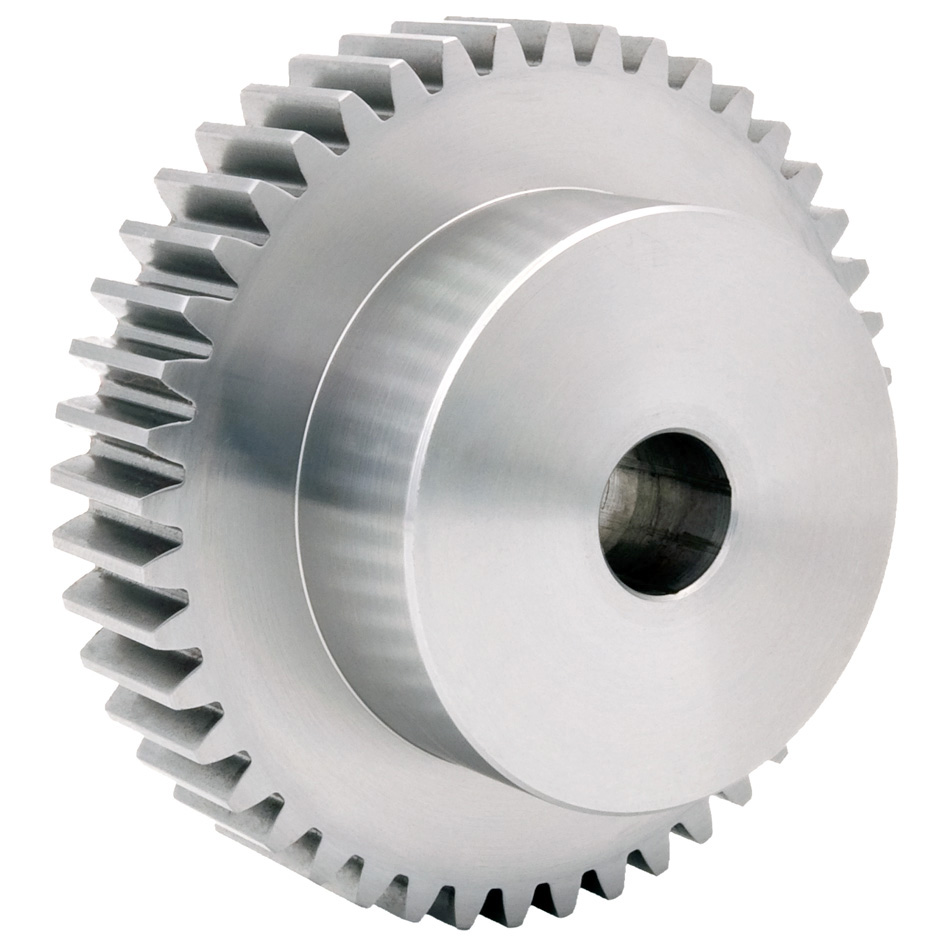

Precision Spur Gears
Precision Spur Gears
Ondrives is a UK based manufacturer of Precision Gears
Sku (Part No.) | Normal Module mn | No. of Teeth [z] | Bore Diameter [di] H7 | Torque T₂ [Nm] n1 100 r/min | Material |
---|---|---|---|---|---|
PSG0.5-18 | 0.5 | 18 | 3 | 0.25 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-19 | 0.5 | 19 | 4 | 0.27 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-20 | 0.5 | 20 | 4 | 0.36 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-21 | 0.5 | 21 | 4 | 0.37 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-22 | 0.5 | 22 | 4 | 0.39 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-23 | 0.5 | 23 | 4 | 0.41 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-24 | 0.5 | 24 | 5 | 0.43 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-25 | 0.5 | 25 | 5 | 0.44 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-26 | 0.5 | 26 | 5 | 0.54 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-27 | 0.5 | 27 | 5 | 0.57 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-28 | 0.5 | 28 | 5 | 0.59 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-29 | 0.5 | 29 | 6 | 0.61 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-30 | 0.5 | 30 | 6 | 0.69 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-32 | 0.5 | 32 | 6 | 0.74 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-35 | 0.5 | 35 | 6 | 0.81 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-38 | 0.5 | 38 | 6 | 0.87 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-40 | 0.5 | 40 | 6 | 1.18 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-42 | 0.5 | 42 | 6 | 1.24 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-45 | 0.5 | 45 | 6 | 1.32 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-48 | 0.5 | 48 | 6 | 1.41 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-50 | 0.5 | 50 | 6 | 1.74 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-52 | 0.5 | 52 | 6 | 1.81 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-55 | 0.5 | 55 | 6 | 1.92 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-58 | 0.5 | 58 | 6 | 2.02 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-60 | 0.5 | 60 | 6 | 2.49 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-62 | 0.5 | 62 | 8 | 2.57 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-65 | 0.5 | 65 | 8 | 2.7 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-68 | 0.5 | 68 | 8 | 2.82 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-70 | 0.5 | 70 | 8 | 2.91 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-72 | 0.5 | 72 | 8 | 2.99 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-75 | 0.5 | 75 | 8 | 3.11 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-78 | 0.5 | 78 | 8 | 3.24 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-80 | 0.5 | 80 | 8 | 3.71 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-82 | 0.5 | 82 | 8 | 3.81 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-85 | 0.5 | 85 | 8 | 3.95 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-90 | 0.5 | 90 | 8 | 4.18 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-95 | 0.5 | 95 | 8 | 4.41 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-100 | 0.5 | 100 | 10 | 4.75 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-105 | 0.5 | 105 | 10 | 4.99 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-110 | 0.5 | 110 | 10 | 5.22 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-115 | 0.5 | 115 | 10 | 5.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-120 | 0.5 | 120 | 10 | 5.7 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-130 | 0.5 | 130 | 10 | 6.17 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-140 | 0.5 | 140 | 10 | 6.65 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-150 | 0.5 | 150 | 10 | 7.28 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-160 | 0.5 | 160 | 10 | 7.76 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-170 | 0.5 | 170 | 10 | 8.25 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-180 | 0.5 | 180 | 14 | 8.73 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-190 | 0.5 | 190 | 14 | 9.22 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-200 | 0.5 | 200 | 14 | 9.8 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-210 | 0.5 | 210 | 14 | 10.29 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-220 | 0.5 | 220 | 16 | 10.78 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-230 | 0.5 | 230 | 16 | 11.27 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-240 | 0.5 | 240 | 16 | 11.76 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-250 | 0.5 | 250 | 16 | 12.25 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.5-18H | 0.5 | 18 | 3 | 0.93 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-19H | 0.5 | 19 | 4 | 0.98 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-20H | 0.5 | 20 | 4 | 1.11 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-21H | 0.5 | 21 | 4 | 1.16 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-22H | 0.5 | 22 | 4 | 1.22 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-23H | 0.5 | 23 | 4 | 1.27 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-24H | 0.5 | 24 | 5 | 1.33 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-25H | 0.5 | 25 | 5 | 1.38 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-26H | 0.5 | 26 | 5 | 1.44 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-27H | 0.5 | 27 | 5 | 1.5 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-28H | 0.5 | 28 | 5 | 1.55 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-29H | 0.5 | 29 | 6 | 1.61 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-30H | 0.5 | 30 | 6 | 1.65 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-32H | 0.5 | 32 | 6 | 1.76 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-35H | 0.5 | 35 | 6 | 1.93 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-38H | 0.5 | 38 | 6 | 2.09 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-40H | 0.5 | 40 | 6 | 2.45 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-42H | 0.5 | 42 | 6 | 2.57 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-45H | 0.5 | 45 | 6 | 2.75 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-48H | 0.5 | 48 | 6 | 2.94 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-50H | 0.5 | 50 | 6 | 3.32 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-52H | 0.5 | 52 | 6 | 3.45 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-55H | 0.5 | 55 | 6 | 3.65 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-58H | 0.5 | 58 | 6 | 3.85 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-60H | 0.5 | 60 | 6 | 4.15 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-62H | 0.5 | 62 | 8 | 4.29 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-65H | 0.5 | 65 | 8 | 4.5 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-68H | 0.5 | 68 | 8 | 4.7 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-70H | 0.5 | 70 | 8 | 4.84 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-72H | 0.5 | 72 | 8 | 4.98 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-75H | 0.5 | 75 | 8 | 5.19 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-78H | 0.5 | 78 | 8 | 5.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-80H | 0.5 | 80 | 8 | 5.8 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-82H | 0.5 | 82 | 8 | 5.95 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-85H | 0.5 | 85 | 8 | 6.16 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-90H | 0.5 | 90 | 8 | 6.53 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-95H | 0.5 | 95 | 8 | 6.89 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-100H | 0.5 | 100 | 10 | 7.42 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-105H | 0.5 | 105 | 10 | 7.79 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-110H | 0.5 | 110 | 10 | 8.16 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-115H | 0.5 | 115 | 10 | N/A | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-120H | 0.5 | 120 | 10 | 8.9 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-130H | 0.5 | 130 | 10 | 9.65 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-140H | 0.5 | 140 | 10 | 10.39 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-150H | 0.5 | 150 | 10 | 11.37 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-160H | 0.5 | 160 | 10 | 12.13 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-170H | 0.5 | 170 | 10 | 12.89 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-180H | 0.5 | 180 | 14 | 13.64 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-190H | 0.5 | 190 | 14 | 14.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-200H | 0.5 | 200 | 14 | 15.32 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-210H | 0.5 | 210 | 14 | 16.08 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-220H | 0.5 | 220 | 16 | 16.85 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-230H | 0.5 | 230 | 16 | 17.62 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-240H | 0.5 | 240 | 16 | 18.38 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-250H | 0.5 | 250 | 16 | 19.15 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.5-18S | 0.5 | 18 | 3 | 0.15 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-19S | 0.5 | 19 | 4 | 0.16 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-20S | 0.5 | 20 | 4 | 0.21 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-21S | 0.5 | 21 | 4 | 0.22 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-22S | 0.5 | 22 | 4 | 0.23 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-23S | 0.5 | 23 | 4 | 0.25 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-24S | 0.5 | 24 | 5 | 0.26 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-25S | 0.5 | 25 | 5 | 0.27 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-26S | 0.5 | 26 | 5 | 0.33 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-27S | 0.5 | 27 | 5 | 0.34 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-28S | 0.5 | 28 | 5 | 0.35 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-29S | 0.5 | 29 | 6 | 0.36 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-30S | 0.5 | 30 | 6 | 0.41 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-32S | 0.5 | 32 | 6 | 0.44 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-35S | 0.5 | 35 | 6 | 0.48 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-38S | 0.5 | 38 | 6 | 0.52 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-40S | 0.5 | 40 | 6 | 0.71 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-42S | 0.5 | 42 | 6 | 0.74 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-45S | 0.5 | 45 | 6 | 0.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-48S | 0.5 | 48 | 6 | 0.85 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-50S | 0.5 | 50 | 6 | 1.05 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-52S | 0.5 | 52 | 6 | 1.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-55S | 0.5 | 55 | 6 | 1.15 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-58S | 0.5 | 58 | 6 | 1.21 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-60S | 0.5 | 60 | 6 | 1.49 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-62S | 0.5 | 62 | 8 | 1.54 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-65S | 0.5 | 65 | 8 | 1.62 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-68S | 0.5 | 68 | 8 | 1.69 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-70S | 0.5 | 70 | 8 | 1.74 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-72S | 0.5 | 72 | 8 | 1.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-75S | 0.5 | 75 | 8 | 1.87 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-78S | 0.5 | 78 | 8 | 1.94 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-80S | 0.5 | 80 | 8 | 2.55 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-82S | 0.5 | 82 | 8 | 2.61 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-85S | 0.5 | 85 | 8 | 2.71 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-90S | 0.5 | 90 | 8 | 2.87 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-95S | 0.5 | 95 | 8 | 3.03 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-100S | 0.5 | 100 | 10 | 3.84 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-105S | 0.5 | 105 | 10 | 4.04 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-110S | 0.5 | 110 | 10 | 4.23 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-115S | 0.5 | 115 | 10 | 4.42 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-120S | 0.5 | 120 | 10 | 4.61 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-130S | 0.5 | 130 | 10 | 5 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-140S | 0.5 | 140 | 10 | 5.38 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-150S | 0.5 | 150 | 10 | 7.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-160S | 0.5 | 160 | 10 | 8.3 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-170S | 0.5 | 170 | 10 | 8.82 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-180S | 0.5 | 180 | 14 | 9.34 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-190S | 0.5 | 190 | 14 | 9.86 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-200S | 0.5 | 200 | 14 | 11.61 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-210S | 0.5 | 210 | 14 | 12.19 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-220S | 0.5 | 220 | 16 | 12.77 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-230S | 0.5 | 230 | 16 | 13.35 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-240S | 0.5 | 240 | 16 | 13.93 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-250S | 0.5 | 250 | 16 | 14.51 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.5-18SL | 0.5 | 18 | 3 | 0.12 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-19SL | 0.5 | 19 | 4 | 0.12 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-20SL | 0.5 | 20 | 4 | 0.17 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-21SL | 0.5 | 21 | 4 | 0.17 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-22SL | 0.5 | 22 | 4 | 0.18 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-23SL | 0.5 | 23 | 4 | 0.19 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-24SL | 0.5 | 24 | 5 | 0.2 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-25SL | 0.5 | 25 | 5 | 0.21 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-26SL | 0.5 | 26 | 5 | 0.25 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-27SL | 0.5 | 27 | 5 | 0.26 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-28SL | 0.5 | 28 | 5 | 0.27 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-29SL | 0.5 | 29 | 6 | 0.28 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-30SL | 0.5 | 30 | 6 | 0.32 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-32SL | 0.5 | 32 | 6 | 0.34 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-35SL | 0.5 | 35 | 6 | 0.38 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-38SL | 0.5 | 38 | 6 | 0.41 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-40SL | 0.5 | 40 | 6 | 0.55 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-42SL | 0.5 | 42 | 6 | 0.58 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-45SL | 0.5 | 45 | 6 | 0.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-48SL | 0.5 | 48 | 6 | 0.66 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-50SL | 0.5 | 50 | 6 | 0.81 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-52SL | 0.5 | 52 | 6 | 0.85 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-55SL | 0.5 | 55 | 6 | 0.9 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-58SL | 0.5 | 58 | 6 | 0.94 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-60SL | 0.5 | 60 | 6 | 1.16 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-62SL | 0.5 | 62 | 8 | 1.2 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-65SL | 0.5 | 65 | 8 | 1.26 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-68SL | 0.5 | 68 | 8 | 1.32 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-70SL | 0.5 | 70 | 8 | 1.36 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-72SL | 0.5 | 72 | 8 | 1.39 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-75SL | 0.5 | 75 | 8 | 1.45 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-78SL | 0.5 | 78 | 8 | 1.51 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-80SL | 0.5 | 80 | 8 | 1.98 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-82SL | 0.5 | 82 | 8 | 2.03 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-85SL | 0.5 | 85 | 8 | 2.11 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-90SL | 0.5 | 90 | 8 | 2.23 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-95SL | 0.5 | 95 | 8 | 2.36 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-100SL | 0.5 | 100 | 10 | 2.99 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-105SL | 0.5 | 105 | 10 | 3.14 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-110SL | 0.5 | 110 | 10 | 3.29 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-115SL | 0.5 | 115 | 10 | 3.44 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-120SL | 0.5 | 120 | 10 | 3.59 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-130SL | 0.5 | 130 | 10 | 3.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-140SL | 0.5 | 140 | 10 | 4.19 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-150SL | 0.5 | 150 | 10 | 6.06 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-160SL | 0.5 | 160 | 10 | 6.46 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-170SL | 0.5 | 170 | 10 | 6.86 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-180SL | 0.5 | 180 | 14 | 7.27 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-190SL | 0.5 | 190 | 14 | 7.67 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-200SL | 0.5 | 200 | 14 | 9.03 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-210SL | 0.5 | 210 | 14 | 9.48 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-220SL | 0.5 | 220 | 16 | 9.93 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-230SL | 0.5 | 230 | 16 | 10.38 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-240SL | 0.5 | 240 | 16 | 10.83 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-250SL | 0.5 | 250 | 16 | 11.29 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.5-18TI | 0.5 | 18 | 3 | 0.08 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-19TI | 0.5 | 19 | 4 | 0.08 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-20TI | 0.5 | 20 | 4 | 0.11 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-21TI | 0.5 | 21 | 4 | 0.11 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-22TI | 0.5 | 22 | 4 | 0.12 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-23TI | 0.5 | 23 | 4 | 0.12 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-24TI | 0.5 | 24 | 5 | 0.13 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-25TI | 0.5 | 25 | 5 | 0.13 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-26TI | 0.5 | 26 | 5 | 0.16 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-27TI | 0.5 | 27 | 5 | 0.17 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-28TI | 0.5 | 28 | 5 | 0.18 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-29TI | 0.5 | 29 | 6 | 0.18 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-30TI | 0.5 | 30 | 6 | 0.21 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-32TI | 0.5 | 32 | 6 | 0.22 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-35TI | 0.5 | 35 | 6 | 0.24 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-38TI | 0.5 | 38 | 6 | 0.26 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-40TI | 0.5 | 40 | 6 | 0.35 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-42TI | 0.5 | 42 | 6 | 0.37 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-45TI | 0.5 | 45 | 6 | 0.4 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-48TI | 0.5 | 48 | 6 | 0.42 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-50TI | 0.5 | 50 | 6 | 0.52 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-52TI | 0.5 | 52 | 6 | 0.54 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-55TI | 0.5 | 55 | 6 | 0.58 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-58TI | 0.5 | 58 | 6 | 0.61 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-60TI | 0.5 | 60 | 6 | 0.75 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-62TI | 0.5 | 62 | 8 | 0.77 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-65TI | 0.5 | 65 | 8 | 0.81 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-68TI | 0.5 | 68 | 8 | 0.85 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-70TI | 0.5 | 70 | 8 | 0.87 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-72TI | 0.5 | 72 | 8 | 0.9 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-75TI | 0.5 | 75 | 8 | 0.93 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-78TI | 0.5 | 78 | 8 | 0.97 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-80TI | 0.5 | 80 | 8 | 1.11 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-82TI | 0.5 | 82 | 8 | 1.14 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-85TI | 0.5 | 85 | 8 | 1.18 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-90TI | 0.5 | 90 | 8 | 1.25 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-95TI | 0.5 | 95 | 8 | 1.32 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-100TI | 0.5 | 100 | 10 | 1.42 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-105TI | 0.5 | 105 | 10 | 1.5 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-110TI | 0.5 | 110 | 10 | 1.57 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-115TI | 0.5 | 115 | 10 | 1.64 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-120TI | 0.5 | 120 | 10 | 1.71 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-130TI | 0.5 | 130 | 10 | 1.85 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-140TI | 0.5 | 140 | 10 | 1.99 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-150TI | 0.5 | 150 | 10 | 2.18 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-160TI | 0.5 | 160 | 10 | 2.33 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-170TI | 0.5 | 170 | 10 | 2.47 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-180TI | 0.5 | 180 | 14 | 2.62 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-190TI | 0.5 | 190 | 14 | 2.76 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-200TI | 0.5 | 200 | 14 | 2.94 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-210TI | 0.5 | 210 | 14 | 3.09 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-220TI | 0.5 | 220 | 16 | 3.24 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-230TI | 0.5 | 230 | 16 | 3.38 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-240TI | 0.5 | 240 | 16 | 3.53 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-250TI | 0.5 | 250 | 16 | 3.68 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.5-18DL | 0.5 | 18 | 3 | 0.17 | Delrin POM |
PSG0.5-19DL | 0.5 | 19 | 4 | 0.18 | Delrin POM |
PSG0.5-20DL | 0.5 | 20 | 4 | 0.2 | Delrin POM |
PSG0.5-21DL | 0.5 | 21 | 4 | 0.21 | Delrin POM |
PSG0.5-22DL | 0.5 | 22 | 4 | 0.23 | Delrin POM |
PSG0.5-23DL | 0.5 | 23 | 4 | 0.24 | Delrin POM |
PSG0.5-24DL | 0.5 | 24 | 5 | 0.26 | Delrin POM |
PSG0.5-25DL | 0.5 | 25 | 5 | 0.27 | Delrin POM |
PSG0.5-26DL | 0.5 | 26 | 5 | 0.29 | Delrin POM |
PSG0.5-27DL | 0.5 | 27 | 5 | 0.3 | Delrin POM |
PSG0.5-28DL | 0.5 | 28 | 5 | 0.31 | Delrin POM |
PSG0.5-29DL | 0.5 | 29 | 6 | 0.33 | Delrin POM |
PSG0.5-30DL | 0.5 | 30 | 6 | 0.35 | Delrin POM |
PSG0.5-32DL | 0.5 | 32 | 6 | 0.37 | Delrin POM |
PSG0.5-35DL | 0.5 | 35 | 6 | 0.42 | Delrin POM |
PSG0.5-38DL | 0.5 | 38 | 6 | 0.46 | Delrin POM |
PSG0.5-40DL | 0.5 | 40 | 6 | 0.5 | Delrin POM |
PSG0.5-42DL | 0.5 | 42 | 6 | 0.53 | Delrin POM |
PSG0.5-45DL | 0.5 | 45 | 6 | 0.57 | Delrin POM |
PSG0.5-48DL | 0.5 | 48 | 6 | 0.62 | Delrin POM |
PSG0.5-50DL | 0.5 | 50 | 6 | 0.65 | Delrin POM |
PSG0.5-52DL | 0.5 | 52 | 6 | 0.68 | Delrin POM |
PSG0.5-55DL | 0.5 | 55 | 6 | 0.73 | Delrin POM |
PSG0.5-58DL | 0.5 | 58 | 6 | 0.78 | Delrin POM |
PSG0.5-60DL | 0.5 | 60 | 6 | 0.81 | Delrin POM |
PSG0.5-62DL | 0.5 | 62 | 8 | 0.84 | Delrin POM |
PSG0.5-65DL | 0.5 | 65 | 8 | 0.88 | Delrin POM |
PSG0.5-68DL | 0.5 | 68 | 8 | 0.93 | Delrin POM |
PSG0.5-70DL | 0.5 | 70 | 8 | 0.96 | Delrin POM |
PSG0.5-72DL | 0.5 | 72 | 8 | 0.99 | Delrin POM |
PSG0.5-75DL | 0.5 | 75 | 8 | 1.04 | Delrin POM |
PSG0.5-78DL | 0.5 | 78 | 8 | 1.09 | Delrin POM |
PSG0.5-80DL | 0.5 | 80 | 8 | 1.12 | Delrin POM |
PSG0.5-82DL | 0.5 | 82 | 8 | 1.15 | Delrin POM |
PSG0.5-85DL | 0.5 | 85 | 8 | 1.2 | Delrin POM |
PSG0.5-90DL | 0.5 | 90 | 8 | 1.28 | Delrin POM |
PSG0.5-95DL | 0.5 | 95 | 8 | 1.36 | Delrin POM |
PSG0.5-100DL | 0.5 | 100 | 10 | 1.43 | Delrin POM |
PSG0.5-105DL | 0.5 | 105 | 10 | 1.51 | Delrin POM |
PSG0.5-110DL | 0.5 | 110 | 10 | 1.59 | Delrin POM |
PSG0.5-115DL | 0.5 | 115 | 10 | 1.66 | Delrin POM |
PSG0.5-120DL | 0.5 | 120 | 10 | 1.74 | Delrin POM |
PSG0.5-130DL | 0.5 | 130 | 10 | 1.9 | Delrin POM |
PSG0.5-140DL | 0.5 | 140 | 10 | 2.06 | Delrin POM |
PSG0.5-150DL | 0.5 | 150 | 10 | 2.22 | Delrin POM |
PSG0.5-160DL | 0.5 | 160 | 10 | 2.38 | Delrin POM |
PSG0.5-170DL | 0.5 | 170 | 10 | 2.54 | Delrin POM |
PSG0.5-180DL | 0.5 | 180 | 14 | 2.7 | Delrin POM |
PSG0.5-190DL | 0.5 | 190 | 14 | 2.86 | Delrin POM |
PSG0.5-200DL | 0.5 | 200 | 14 | 3.02 | Delrin POM |
PSG0.5-210DL | 0.5 | 210 | 14 | 3.19 | Delrin POM |
PSG0.5-220DL | 0.5 | 220 | 16 | 3.35 | Delrin POM |
PSG0.5-230DL | 0.5 | 230 | 16 | 3.51 | Delrin POM |
PSG0.5-240DL | 0.5 | 240 | 16 | 3.67 | Delrin POM |
PSG0.5-250DL | 0.5 | 250 | 16 | 3.83 | Delrin POM |
PSG0.5-18PK | 0.5 | 18 | 3 | 0.23 | PEEK GF30® |
PSG0.5-19PK | 0.5 | 19 | 4 | 0.25 | PEEK GF30® |
PSG0.5-20PK | 0.5 | 20 | 4 | 0.27 | PEEK GF30® |
PSG0.5-21PK | 0.5 | 21 | 4 | 0.29 | PEEK GF30® |
PSG0.5-22PK | 0.5 | 22 | 4 | 0.31 | PEEK GF30® |
PSG0.5-23PK | 0.5 | 23 | 4 | 0.33 | PEEK GF30® |
PSG0.5-24PK | 0.5 | 24 | 5 | 0.35 | PEEK GF30® |
PSG0.5-25PK | 0.5 | 25 | 5 | 0.37 | PEEK GF30® |
PSG0.5-26PK | 0.5 | 26 | 5 | 0.39 | PEEK GF30® |
PSG0.5-27PK | 0.5 | 27 | 5 | 0.41 | PEEK GF30® |
PSG0.5-28PK | 0.5 | 28 | 5 | 0.43 | PEEK GF30® |
PSG0.5-29PK | 0.5 | 29 | 6 | 0.45 | PEEK GF30® |
PSG0.5-30PK | 0.5 | 30 | 6 | 0.47 | PEEK GF30® |
PSG0.5-32PK | 0.5 | 32 | 6 | 0.51 | PEEK GF30® |
PSG0.5-35PK | 0.5 | 35 | 6 | 0.57 | PEEK GF30® |
PSG0.5-38PK | 0.5 | 38 | 6 | 0.63 | PEEK GF30® |
PSG0.5-40PK | 0.5 | 40 | 6 | 0.68 | PEEK GF30® |
PSG0.5-42PK | 0.5 | 42 | 6 | 0.72 | PEEK GF30® |
PSG0.5-45PK | 0.5 | 45 | 6 | 0.78 | PEEK GF30® |
PSG0.5-48PK | 0.5 | 48 | 6 | 0.84 | PEEK GF30® |
PSG0.5-50PK | 0.5 | 50 | 6 | 0.89 | PEEK GF30® |
PSG0.5-52PK | 0.5 | 52 | 6 | 0.93 | PEEK GF30® |
PSG0.5-55PK | 0.5 | 55 | 6 | 0.99 | PEEK GF30® |
PSG0.5-58PK | 0.5 | 58 | 6 | 1.06 | PEEK GF30® |
PSG0.5-60PK | 0.5 | 60 | 6 | 1.1 | PEEK GF30® |
PSG0.5-62PK | 0.5 | 62 | 8 | 1.14 | PEEK GF30® |
PSG0.5-65PK | 0.5 | 65 | 8 | 1.21 | PEEK GF30® |
PSG0.5-68PK | 0.5 | 68 | 8 | 1.27 | PEEK GF30® |
PSG0.5-70PK | 0.5 | 70 | 8 | 1.31 | PEEK GF30® |
PSG0.5-72PK | 0.5 | 72 | 8 | 1.35 | PEEK GF30® |
PSG0.5-75PK | 0.5 | 75 | 8 | 1.42 | PEEK GF30® |
PSG0.5-78PK | 0.5 | 78 | 8 | 1.48 | PEEK GF30® |
PSG0.5-80PK | 0.5 | 80 | 8 | 1.53 | PEEK GF30® |
PSG0.5-82PK | 0.5 | 82 | 8 | 1.57 | PEEK GF30® |
PSG0.5-85PK | 0.5 | 85 | 8 | 1.63 | PEEK GF30® |
PSG0.5-90PK | 0.5 | 90 | 8 | 1.74 | PEEK GF30® |
PSG0.5-95PK | 0.5 | 95 | 8 | 1.85 | PEEK GF30® |
PSG0.5-100PK | 0.5 | 100 | 10 | 1.95 | PEEK GF30® |
PSG0.5-105PK | 0.5 | 105 | 10 | 2.06 | PEEK GF30® |
PSG0.5-110PK | 0.5 | 110 | 10 | 2.16 | PEEK GF30® |
PSG0.5-115PK | 0.5 | 115 | 10 | 2.27 | PEEK GF30® |
PSG0.5-120PK | 0.5 | 120 | 10 | 2.38 | PEEK GF30® |
PSG0.5-130PK | 0.5 | 130 | 10 | 2.59 | PEEK GF30® |
PSG0.5-140PK | 0.5 | 140 | 10 | 2.81 | PEEK GF30® |
PSG0.5-150PK | 0.5 | 150 | 10 | 3.02 | PEEK GF30® |
PSG0.5-160PK | 0.5 | 160 | 10 | 3.24 | PEEK GF30® |
PSG0.5-170PK | 0.5 | 170 | 10 | 3.46 | PEEK GF30® |
PSG0.5-180PK | 0.5 | 180 | 14 | 3.68 | PEEK GF30® |
PSG0.5-190PK | 0.5 | 190 | 14 | 3.9 | PEEK GF30® |
PSG0.5-200PK | 0.5 | 200 | 14 | 4.12 | PEEK GF30® |
PSG0.5-210PK | 0.5 | 210 | 14 | 4.35 | PEEK GF30® |
PSG0.5-220PK | 0.5 | 220 | 16 | 4.57 | PEEK GF30® |
PSG0.5-230PK | 0.5 | 230 | 16 | 4.78 | PEEK GF30® |
PSG0.5-240PK | 0.5 | 240 | 16 | 5 | PEEK GF30® |
PSG0.5-250PK | 0.5 | 250 | 16 | 5.22 | PEEK GF30® |
PSG1.0-15 | 1 | 15 | 5 | 1.47 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-16 | 1 | 16 | 5 | 1.57 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-17 | 1 | 17 | 5 | 1.67 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-18 | 1 | 18 | 5 | 1.76 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-19 | 1 | 19 | 5 | 1.86 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-20 | 1 | 20 | 5 | 2.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-21 | 1 | 21 | 5 | 2.6 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-22 | 1 | 22 | 5 | 2.73 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-23 | 1 | 23 | 5 | 2.85 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-24 | 1 | 24 | 6 | 2.97 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-25 | 1 | 25 | 6 | 3.1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-26 | 1 | 26 | 6 | 3.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-27 | 1 | 27 | 6 | 3.94 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-28 | 1 | 28 | 6 | 4.08 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-29 | 1 | 29 | 8 | 4.23 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-30 | 1 | 30 | 8 | 4.81 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-32 | 1 | 32 | 8 | 5.13 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-35 | 1 | 35 | 8 | 5.61 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-38 | 1 | 38 | 10 | 6.09 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-40 | 1 | 40 | 10 | 8.19 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-42 | 1 | 42 | 10 | 8.6 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-45 | 1 | 45 | 10 | 9.22 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-48 | 1 | 48 | 10 | 9.83 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-50 | 1 | 50 | 10 | 12.15 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-52 | 1 | 52 | 10 | 12.63 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-55 | 1 | 55 | 10 | 13.36 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-58 | 1 | 58 | 10 | 14.09 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-60 | 1 | 60 | 10 | 17.35 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-62 | 1 | 62 | 10 | 17.92 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-65 | 1 | 65 | 10 | 18.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-68 | 1 | 68 | 10 | 19.66 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-70 | 1 | 70 | 10 | 20.24 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-72 | 1 | 72 | 10 | 20.81 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-75 | 1 | 75 | 10 | 21.68 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-78 | 1 | 78 | 10 | 22.55 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-80 | 1 | 80 | 10 | 29.61 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-82 | 1 | 82 | 10 | 30.35 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-85 | 1 | 85 | 10 | 31.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-90 | 1 | 90 | 10 | 33.31 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-95 | 1 | 95 | 10 | 35.16 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-100 | 1 | 100 | 14 | 37.99 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-105 | 1 | 105 | 14 | 39.89 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-110 | 1 | 110 | 14 | 41.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-115 | 1 | 115 | 14 | 43.69 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-120 | 1 | 120 | 14 | 45.59 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.0-15H | 1 | 15 | 5 | 5.39 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-16H | 1 | 16 | 5 | 5.75 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-17H | 1 | 17 | 5 | 6.11 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-18H | 1 | 18 | 5 | 6.47 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-19H | 1 | 19 | 5 | 6.83 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-20H | 1 | 20 | 5 | 8.85 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-21H | 1 | 21 | 5 | 9.29 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-22H | 1 | 22 | 5 | 9.73 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-23H | 1 | 23 | 5 | 10.18 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-24H | 1 | 24 | 6 | 10.62 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-25H | 1 | 25 | 6 | 11.06 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-26H | 1 | 26 | 6 | 11.52 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-27H | 1 | 27 | 6 | 11.96 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-28H | 1 | 28 | 6 | 12.41 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-29H | 1 | 29 | 8 | 12.85 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-30H | 1 | 30 | 8 | 13.21 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-32H | 1 | 32 | 8 | 14.09 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-35H | 1 | 35 | 8 | 15.41 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-38H | 1 | 38 | 10 | 16.73 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-40H | 1 | 40 | 10 | 19.59 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-42H | 1 | 42 | 10 | 20.57 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-45H | 1 | 45 | 10 | 22.04 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-48H | 1 | 48 | 10 | 23.51 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-50H | 1 | 50 | 10 | 26.57 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-52H | 1 | 52 | 10 | 27.64 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-55H | 1 | 55 | 10 | 29.23 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-58H | 1 | 58 | 10 | 30.82 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-60H | 1 | 60 | 10 | 33.2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-62H | 1 | 62 | 10 | 34.31 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-65H | 1 | 65 | 10 | 35.97 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-68H | 1 | 68 | 10 | 37.63 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-70H | 1 | 70 | 10 | 38.73 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-72H | 1 | 72 | 10 | 39.84 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-75H | 1 | 75 | 10 | 41.5 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-78H | 1 | 78 | 10 | 43.16 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-80H | 1 | 80 | 10 | 46.42 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-82H | 1 | 82 | 10 | 47.58 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-85H | 1 | 85 | 10 | 49.32 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-90H | 1 | 90 | 10 | 52.22 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-95H | 1 | 95 | 10 | 55.12 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-100H | 1 | 100 | 14 | 59.36 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-105H | 1 | 105 | 14 | 62.33 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-110H | 1 | 110 | 14 | 65.3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-115H | 1 | 115 | 14 | 68.27 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-120H | 1 | 120 | 14 | 71.24 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.0-15TI | 1 | 15 | 5 | 0.44 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-16TI | 1 | 16 | 5 | 0.47 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-17TI | 1 | 17 | 5 | 0.5 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-18TI | 1 | 18 | 5 | 0.53 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-19TI | 1 | 19 | 5 | 0.56 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-20TI | 1 | 20 | 5 | 0.74 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-21TI | 1 | 21 | 5 | 0.78 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-22TI | 1 | 22 | 5 | 0.82 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-23TI | 1 | 23 | 5 | 0.85 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-24TI | 1 | 24 | 6 | 0.89 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-25TI | 1 | 25 | 6 | 0.93 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-26TI | 1 | 26 | 6 | 1.14 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-27TI | 1 | 27 | 6 | 1.18 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-28TI | 1 | 28 | 6 | 1.22 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-29TI | 1 | 29 | 8 | 1.27 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-30TI | 1 | 30 | 8 | 1.44 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-32TI | 1 | 32 | 8 | 1.54 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-35TI | 1 | 35 | 8 | 1.68 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-38TI | 1 | 38 | 10 | 1.83 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-40TI | 1 | 40 | 10 | 2.46 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-42TI | 1 | 42 | 10 | 2.58 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-45TI | 1 | 45 | 10 | 2.77 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-48TI | 1 | 48 | 10 | 2.95 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-50TI | 1 | 50 | 10 | 3.64 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-52TI | 1 | 52 | 10 | 3.79 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-55TI | 1 | 55 | 10 | 4.01 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-58TI | 1 | 58 | 10 | 4.23 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-60TI | 1 | 60 | 10 | 5.2 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-62TI | 1 | 62 | 10 | 5.38 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-65TI | 1 | 65 | 10 | 5.64 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-68TI | 1 | 68 | 10 | 5.9 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-70TI | 1 | 70 | 10 | 6.07 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-72TI | 1 | 72 | 10 | 6.24 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-75TI | 1 | 75 | 10 | 6.5 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-78TI | 1 | 78 | 10 | 6.76 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-80TI | 1 | 80 | 10 | 8.88 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-82TI | 1 | 82 | 10 | 9.1 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-85TI | 1 | 85 | 10 | 9.44 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-90TI | 1 | 90 | 10 | 9.99 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-95TI | 1 | 95 | 10 | 10.55 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-100TI | 1 | 100 | 14 | 11.4 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-105TI | 1 | 105 | 14 | 11.97 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-110TI | 1 | 110 | 14 | 12.54 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-115TI | 1 | 115 | 14 | 13.11 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-120TI | 1 | 120 | 14 | 13.68 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.0-15S | 1 | 15 | 5 | 0.88 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-16S | 1 | 16 | 5 | 0.94 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-17S | 1 | 17 | 5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-18S | 1 | 18 | 5 | 1.06 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-19S | 1 | 19 | 5 | 1.12 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-20S | 1 | 20 | 5 | 1.49 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-21S | 1 | 21 | 5 | 1.56 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-22S | 1 | 22 | 5 | 1.64 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-23S | 1 | 23 | 5 | 1.71 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-24S | 1 | 24 | 6 | 1.78 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-25S | 1 | 25 | 6 | 1.86 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-26S | 1 | 26 | 6 | 2.27 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-27S | 1 | 27 | 6 | 2.36 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-28S | 1 | 28 | 6 | 2.45 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-29S | 1 | 29 | 8 | 2.54 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-30S | 1 | 30 | 8 | 2.89 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-32S | 1 | 32 | 8 | 3.08 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-35S | 1 | 35 | 8 | 3.37 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-38S | 1 | 38 | 10 | 3.66 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-40S | 1 | 40 | 10 | 4.92 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-42S | 1 | 42 | 10 | 5.16 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-45S | 1 | 45 | 10 | 5.53 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-48S | 1 | 48 | 10 | 5.9 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-50S | 1 | 50 | 10 | 7.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-52S | 1 | 52 | 10 | 7.58 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-55S | 1 | 55 | 10 | 8.02 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-58S | 1 | 58 | 10 | 8.45 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-60S | 1 | 60 | 10 | 10.41 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-62S | 1 | 62 | 10 | 10.75 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-65S | 1 | 65 | 10 | 11.27 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-68S | 1 | 68 | 10 | 11.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-70S | 1 | 70 | 10 | 12.14 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-72S | 1 | 72 | 10 | 12.49 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-75S | 1 | 75 | 10 | 13.01 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-78S | 1 | 78 | 10 | 13.53 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-80S | 1 | 80 | 10 | 17.76 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-82S | 1 | 82 | 10 | 18.21 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-85S | 1 | 85 | 10 | 18.87 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-90S | 1 | 90 | 10 | 19.98 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-95S | 1 | 95 | 10 | 21.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-100S | 1 | 100 | 14 | 23.75 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-105S | 1 | 105 | 14 | 24.93 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-110S | 1 | 110 | 14 | 26.12 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-115S | 1 | 115 | 14 | 27.31 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-120S | 1 | 120 | 14 | 28.49 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.0-15DL | 1 | 15 | 5 | 0.62 | Delrin POM |
PSG1.0-16DL | 1 | 16 | 5 | 0.71 | Delrin POM |
PSG1.0-17DL | 1 | 17 | 5 | 0.81 | Delrin POM |
PSG1.0-18DL | 1 | 18 | 5 | 0.92 | Delrin POM |
PSG1.0-19DL | 1 | 19 | 5 | 1.03 | Delrin POM |
PSG1.0-20DL | 1 | 20 | 5 | 1.16 | Delrin POM |
PSG1.0-21DL | 1 | 21 | 5 | 1.29 | Delrin POM |
PSG1.0-22DL | 1 | 22 | 5 | 1.43 | Delrin POM |
PSG1.0-23DL | 1 | 23 | 5 | 1.54 | Delrin POM |
PSG1.0-24DL | 1 | 24 | 6 | 1.63 | Delrin POM |
PSG1.0-25DL | 1 | 25 | 6 | 1.73 | Delrin POM |
PSG1.0-26DL | 1 | 26 | 6 | 1.83 | Delrin POM |
PSG1.0-27DL | 1 | 27 | 6 | 1.92 | Delrin POM |
PSG1.0-28DL | 1 | 28 | 6 | 2.02 | Delrin POM |
PSG1.0-29DL | 1 | 29 | 8 | 2.11 | Delrin POM |
PSG1.0-30DL | 1 | 30 | 8 | 2.21 | Delrin POM |
PSG1.0-32DL | 1 | 32 | 8 | 2.4 | Delrin POM |
PSG1.0-35DL | 1 | 35 | 8 | 2.68 | Delrin POM |
PSG1.0-38DL | 1 | 38 | 10 | 2.98 | Delrin POM |
PSG1.0-40DL | 1 | 40 | 10 | 3.18 | Delrin POM |
PSG1.0-42DL | 1 | 42 | 10 | 3.37 | Delrin POM |
PSG1.0-45DL | 1 | 45 | 10 | 3.66 | Delrin POM |
PSG1.0-48DL | 1 | 48 | 10 | 3.96 | Delrin POM |
PSG1.0-50DL | 1 | 50 | 10 | 4.17 | Delrin POM |
PSG1.0-52DL | 1 | 52 | 10 | 4.36 | Delrin POM |
PSG1.0-55DL | 1 | 55 | 10 | 4.66 | Delrin POM |
PSG1.0-58DL | 1 | 58 | 10 | 4.97 | Delrin POM |
PSG1.0-60DL | 1 | 60 | 10 | 5.17 | Delrin POM |
PSG1.0-62DL | 1 | 62 | 10 | 5.36 | Delrin POM |
PSG1.0-65DL | 1 | 65 | 10 | 5.66 | Delrin POM |
PSG1.0-68DL | 1 | 68 | 10 | 5.95 | Delrin POM |
PSG1.0-70DL | 1 | 70 | 10 | 6.15 | Delrin POM |
PSG1.0-72DL | 1 | 72 | 10 | 6.35 | Delrin POM |
PSG1.0-75DL | 1 | 75 | 10 | 6.65 | Delrin POM |
PSG1.0-78DL | 1 | 78 | 10 | 6.96 | Delrin POM |
PSG1.0-80DL | 1 | 80 | 10 | 7.16 | Delrin POM |
PSG1.0-82DL | 1 | 82 | 10 | 7.37 | Delrin POM |
PSG1.0-85DL | 1 | 85 | 10 | 7.67 | Delrin POM |
PSG1.0-90DL | 1 | 90 | 10 | 8.17 | Delrin POM |
PSG1.0-95DL | 1 | 95 | 10 | 8.67 | Delrin POM |
PSG1.0-100DL | 1 | 100 | 14 | 9.17 | Delrin POM |
PSG1.0-105DL | 1 | 105 | 14 | 9.66 | Delrin POM |
PSG1.0-110DL | 1 | 110 | 14 | 10.16 | Delrin POM |
PSG1.0-115DL | 1 | 115 | 14 | 10.66 | Delrin POM |
PSG1.0-120DL | 1 | 120 | 14 | 11.16 | Delrin POM |
PSG1.0-15PK | 1 | 15 | 5 | 0.7 | PEEK GF30® |
PSG1.0-16PK | 1 | 16 | 5 | 0.8 | PEEK GF30® |
PSG1.0-17PK | 1 | 17 | 5 | 0.92 | PEEK GF30® |
PSG1.0-18PK | 1 | 18 | 5 | 1.04 | PEEK GF30® |
PSG1.0-19PK | 1 | 19 | 5 | 1.17 | PEEK GF30® |
PSG1.0-20PK | 1 | 20 | 5 | 1.31 | PEEK GF30® |
PSG1.0-21PK | 1 | 21 | 5 | 1.46 | PEEK GF30® |
PSG1.0-22PK | 1 | 22 | 5 | 1.61 | PEEK GF30® |
PSG1.0-23PK | 1 | 23 | 5 | 1.78 | PEEK GF30® |
PSG1.0-24PK | 1 | 24 | 6 | 1.96 | PEEK GF30® |
PSG1.0-25PK | 1 | 25 | 6 | 2.15 | PEEK GF30® |
PSG1.0-26PK | 1 | 26 | 6 | 2.34 | PEEK GF30® |
PSG1.0-27PK | 1 | 27 | 6 | 2.55 | PEEK GF30® |
PSG1.0-28PK | 1 | 28 | 6 | 2.75 | PEEK GF30® |
PSG1.0-29PK | 1 | 29 | 8 | 2.88 | PEEK GF30® |
PSG1.0-30PK | 1 | 30 | 8 | 3.02 | PEEK GF30® |
PSG1.0-32PK | 1 | 32 | 8 | 3.27 | PEEK GF30® |
PSG1.0-35PK | 1 | 35 | 8 | 3.66 | PEEK GF30® |
PSG1.0-38PK | 1 | 38 | 10 | 4.06 | PEEK GF30® |
PSG1.0-40PK | 1 | 40 | 10 | 4.33 | PEEK GF30® |
PSG1.0-42PK | 1 | 42 | 10 | 4.59 | PEEK GF30® |
PSG1.0-45PK | 1 | 45 | 10 | 4.99 | PEEK GF30® |
PSG1.0-48PK | 1 | 48 | 10 | 5.4 | PEEK GF30® |
PSG1.0-50PK | 1 | 50 | 10 | 5.68 | PEEK GF30® |
PSG1.0-52PK | 1 | 52 | 10 | 5.95 | PEEK GF30® |
PSG1.0-55PK | 1 | 55 | 10 | 6.36 | PEEK GF30® |
PSG1.0-58PK | 1 | 58 | 10 | 6.77 | PEEK GF30® |
PSG1.0-60PK | 1 | 60 | 10 | 7.05 | PEEK GF30® |
PSG1.0-62PK | 1 | 62 | 10 | 7.31 | PEEK GF30® |
PSG1.0-65PK | 1 | 65 | 10 | 7.72 | PEEK GF30® |
PSG1.0-68PK | 1 | 68 | 10 | 8.12 | PEEK GF30® |
PSG1.0-70PK | 1 | 70 | 10 | 8.39 | PEEK GF30® |
PSG1.0-72PK | 1 | 72 | 10 | 8.66 | PEEK GF30® |
PSG1.0-75PK | 1 | 75 | 10 | 9.07 | PEEK GF30® |
PSG1.0-78PK | 1 | 78 | 10 | 9.49 | PEEK GF30® |
PSG1.0-80PK | 1 | 80 | 10 | 9.76 | PEEK GF30® |
PSG1.0-82PK | 1 | 82 | 10 | 10.05 | PEEK GF30® |
PSG1.0-85PK | 1 | 85 | 10 | 10.45 | PEEK GF30® |
PSG1.0-90PK | 1 | 90 | 10 | 11.14 | PEEK GF30® |
PSG1.0-95PK | 1 | 95 | 10 | 11.83 | PEEK GF30® |
PSG1.0-100PK | 1 | 100 | 14 | 12.5 | PEEK GF30® |
PSG1.0-105PK | 1 | 105 | 14 | 13.18 | PEEK GF30® |
PSG1.0-110PK | 1 | 110 | 14 | 13.86 | PEEK GF30® |
PSG1.0-115PK | 1 | 115 | 14 | 14.53 | PEEK GF30® |
PSG1.0-120PK | 1 | 120 | 14 | 15.21 | PEEK GF30® |
PSG1.0-15SL | 1 | 15 | 5 | 0.69 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-16SL | 1 | 16 | 5 | 0.73 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-17SL | 1 | 17 | 5 | 0.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-18SL | 1 | 18 | 5 | 0.82 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-19SL | 1 | 19 | 5 | 0.87 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-20SL | 1 | 20 | 5 | 1.16 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-21SL | 1 | 21 | 5 | 1.21 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-22SL | 1 | 22 | 5 | 1.27 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-23SL | 1 | 23 | 5 | 1.33 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-24SL | 1 | 24 | 6 | 1.39 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-25SL | 1 | 25 | 6 | 1.45 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-26SL | 1 | 26 | 6 | 1.77 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-27SL | 1 | 27 | 6 | 1.84 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-28SL | 1 | 28 | 6 | 1.9 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-29SL | 1 | 29 | 8 | 1.97 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-30SL | 1 | 30 | 8 | 2.24 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-32SL | 1 | 32 | 8 | 2.39 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-35SL | 1 | 35 | 8 | 2.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-38SL | 1 | 38 | 10 | 2.84 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-40SL | 1 | 40 | 10 | 3.82 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-42SL | 1 | 42 | 10 | 4.02 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-45SL | 1 | 45 | 10 | 4.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-48SL | 1 | 48 | 10 | 4.59 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-50SL | 1 | 50 | 10 | 5.67 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-52SL | 1 | 52 | 10 | 5.9 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-55SL | 1 | 55 | 10 | 6.24 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-58SL | 1 | 58 | 10 | 6.58 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-60SL | 1 | 60 | 10 | 8.09 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-62SL | 1 | 62 | 10 | 8.36 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-65SL | 1 | 65 | 10 | 8.77 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-68SL | 1 | 68 | 10 | 9.17 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-70SL | 1 | 70 | 10 | 9.44 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-72SL | 1 | 72 | 10 | 9.71 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-75SL | 1 | 75 | 10 | 10.12 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-78SL | 1 | 78 | 10 | 10.52 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-80SL | 1 | 80 | 10 | 13.82 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-82SL | 1 | 82 | 10 | 14.16 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-85SL | 1 | 85 | 10 | 14.68 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-90SL | 1 | 90 | 10 | 15.54 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-95SL | 1 | 95 | 10 | 16.41 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-100SL | 1 | 100 | 14 | 18.76 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-105SL | 1 | 105 | 14 | 19.7 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-110SL | 1 | 110 | 14 | 20.63 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-115SL | 1 | 115 | 14 | 21.57 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.0-120SL | 1 | 120 | 14 | 22.51 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-18 | 0.8 | 18 | 5 | 0.94 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-19 | 0.8 | 19 | 5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-20 | 0.8 | 20 | 5 | 1.33 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-21 | 0.8 | 21 | 5 | 1.39 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-22 | 0.8 | 22 | 5 | 1.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-23 | 0.8 | 23 | 5 | 1.53 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-24 | 0.8 | 24 | 6 | 1.59 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-25 | 0.8 | 25 | 6 | 1.66 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-26 | 0.8 | 26 | 6 | 2.03 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-27 | 0.8 | 27 | 6 | 2.11 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-28 | 0.8 | 28 | 8 | 2.18 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-29 | 0.8 | 29 | 8 | 2.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-30 | 0.8 | 30 | 8 | 2.58 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-32 | 0.8 | 32 | 8 | 2.75 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-35 | 0.8 | 35 | 10 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-38 | 0.8 | 38 | 10 | 3.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-40 | 0.8 | 40 | 10 | 4.39 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-42 | 0.8 | 42 | 10 | 4.61 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-45 | 0.8 | 45 | 10 | 4.94 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-48 | 0.8 | 48 | 10 | 5.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-50 | 0.8 | 50 | 10 | 6.5 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-52 | 0.8 | 52 | 10 | 6.76 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-55 | 0.8 | 55 | 10 | 7.15 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-58 | 0.8 | 58 | 10 | 7.54 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-60 | 0.8 | 60 | 10 | 9.29 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-62 | 0.8 | 62 | 10 | 9.6 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-65 | 0.8 | 65 | 10 | 10.06 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-68 | 0.8 | 68 | 10 | 10.52 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-70 | 0.8 | 70 | 10 | 10.83 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-72 | 0.8 | 72 | 10 | 11.14 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-75 | 0.8 | 75 | 10 | 11.61 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-78 | 0.8 | 78 | 10 | 12.07 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-80 | 0.8 | 80 | 10 | 15.21 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-82 | 0.8 | 82 | 10 | 15.59 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-85 | 0.8 | 85 | 10 | 16.16 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-90 | 0.8 | 90 | 10 | 17.11 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-95 | 0.8 | 95 | 10 | 18.06 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-100 | 0.8 | 100 | 14 | 19.45 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-110 | 0.8 | 110 | 14 | 20.42 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-120 | 0.8 | 120 | 14 | 21.4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG0.8-18H | 0.8 | 18 | 5 | 3.46 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-19H | 0.8 | 19 | 5 | 3.65 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-20H | 0.8 | 20 | 5 | 4.53 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-21H | 0.8 | 21 | 5 | 4.76 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-22H | 0.8 | 22 | 5 | 4.98 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-23H | 0.8 | 23 | 5 | 5.21 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-24H | 0.8 | 24 | 6 | 5.44 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-25H | 0.8 | 25 | 6 | 5.66 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-26H | 0.8 | 26 | 6 | 5.9 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-27H | 0.8 | 27 | 6 | 6.13 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-28H | 0.8 | 28 | 8 | 6.35 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-29H | 0.8 | 29 | 8 | 6.58 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-30H | 0.8 | 30 | 8 | 6.76 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-32H | 0.8 | 32 | 8 | 7.21 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-35H | 0.8 | 35 | 10 | 7.89 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-38H | 0.8 | 38 | 10 | 8.57 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-40H | 0.8 | 40 | 10 | 10.03 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-42H | 0.8 | 42 | 10 | 10.53 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-45H | 0.8 | 45 | 10 | 11.28 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-48H | 0.8 | 48 | 10 | 12.04 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-50H | 0.8 | 50 | 10 | 13.61 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-52H | 0.8 | 52 | 10 | 14.15 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-55H | 0.8 | 55 | 10 | 14.97 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-58H | 0.8 | 58 | 10 | 15.78 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-60H | 0.8 | 60 | 10 | 17 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-62H | 0.8 | 62 | 10 | 17.57 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-65H | 0.8 | 65 | 10 | 18.42 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-68H | 0.8 | 68 | 10 | 19.27 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-70H | 0.8 | 70 | 10 | 19.83 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-72H | 0.8 | 72 | 10 | 20.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-75H | 0.8 | 75 | 10 | 21.25 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-78H | 0.8 | 78 | 10 | 22.1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-80H | 0.8 | 80 | 10 | 23.77 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-82H | 0.8 | 82 | 10 | 24.36 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-85H | 0.8 | 85 | 10 | 25.25 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-90H | 0.8 | 90 | 10 | 26.74 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-95H | 0.8 | 95 | 10 | 28.22 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-100H | 0.8 | 100 | 14 | 30.39 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-110H | 0.8 | 110 | 14 | 31.91 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-120H | 0.8 | 120 | 14 | 33.43 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG0.8-18S | 0.8 | 18 | 5 | 0.57 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-19S | 0.8 | 19 | 5 | 0.6 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-20S | 0.8 | 20 | 5 | 0.8 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-21S | 0.8 | 21 | 5 | 0.84 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-22S | 0.8 | 22 | 5 | 0.88 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-23S | 0.8 | 23 | 5 | 0.92 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-24S | 0.8 | 24 | 6 | 0.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-25S | 0.8 | 25 | 6 | 0.99 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-26S | 0.8 | 26 | 6 | 1.22 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-27S | 0.8 | 27 | 6 | 1.26 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-28S | 0.8 | 28 | 8 | 1.31 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-29S | 0.8 | 29 | 8 | 1.36 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-30S | 0.8 | 30 | 8 | 1.55 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-32S | 0.8 | 32 | 8 | 1.65 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-35S | 0.8 | 35 | 10 | 1.8 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-38S | 0.8 | 38 | 10 | 1.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-40S | 0.8 | 40 | 10 | 2.63 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-42S | 0.8 | 42 | 10 | 2.76 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-45S | 0.8 | 45 | 10 | 2.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-48S | 0.8 | 48 | 10 | 3.16 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-50S | 0.8 | 50 | 10 | 3.9 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-52S | 0.8 | 52 | 10 | 4.06 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-55S | 0.8 | 55 | 10 | 4.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-58S | 0.8 | 58 | 10 | 4.53 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-60S | 0.8 | 60 | 10 | 5.57 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-62S | 0.8 | 62 | 10 | 5.76 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-65S | 0.8 | 65 | 10 | 6.04 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-68S | 0.8 | 68 | 10 | 6.31 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-70S | 0.8 | 70 | 10 | 6.5 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-72S | 0.8 | 72 | 10 | 6.69 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-75S | 0.8 | 75 | 10 | 6.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-78S | 0.8 | 78 | 10 | 7.24 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-80S | 0.8 | 80 | 10 | 9.51 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-82S | 0.8 | 82 | 10 | 9.75 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-85S | 0.8 | 85 | 10 | 10.1 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-90S | 0.8 | 90 | 10 | 10.7 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-95S | 0.8 | 95 | 10 | 11.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-100S | 0.8 | 100 | 14 | 14.33 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-110S | 0.8 | 110 | 14 | 15.05 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-120S | 0.8 | 120 | 14 | 15.77 | AISI 303 (EN 1.4305) Stainless Steel |
PSG0.8-18TI | 0.8 | 18 | 5 | 0.28 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-19TI | 0.8 | 19 | 5 | 0.3 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-20TI | 0.8 | 20 | 5 | 0.4 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-21TI | 0.8 | 21 | 5 | 0.42 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-22TI | 0.8 | 22 | 5 | 0.44 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-23TI | 0.8 | 23 | 5 | 0.46 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-24TI | 0.8 | 24 | 6 | 0.48 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-25TI | 0.8 | 25 | 6 | 0.5 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-26TI | 0.8 | 26 | 6 | 0.61 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-27TI | 0.8 | 27 | 6 | 0.63 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-28TI | 0.8 | 28 | 8 | 0.66 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-29TI | 0.8 | 29 | 8 | 0.68 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-30TI | 0.8 | 30 | 8 | 0.77 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-32TI | 0.8 | 32 | 8 | 0.82 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-35TI | 0.8 | 35 | 10 | 0.9 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-38TI | 0.8 | 38 | 10 | 0.98 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-40TI | 0.8 | 40 | 10 | 1.32 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-42TI | 0.8 | 42 | 10 | 1.38 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-45TI | 0.8 | 45 | 10 | 1.48 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-48TI | 0.8 | 48 | 10 | 1.58 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-50TI | 0.8 | 50 | 10 | 1.95 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-52TI | 0.8 | 52 | 10 | 2.03 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-55TI | 0.8 | 55 | 10 | 2.15 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-58TI | 0.8 | 58 | 10 | 2.26 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-60TI | 0.8 | 60 | 10 | 2.79 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-62TI | 0.8 | 62 | 10 | 2.88 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-65TI | 0.8 | 65 | 10 | 3.02 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-68TI | 0.8 | 68 | 10 | 3.16 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-70TI | 0.8 | 70 | 10 | 3.25 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-72TI | 0.8 | 72 | 10 | 3.34 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-75TI | 0.8 | 75 | 10 | 3.48 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-78TI | 0.8 | 78 | 10 | 3.62 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-80TI | 0.8 | 80 | 10 | 4.56 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-82TI | 0.8 | 82 | 10 | 4.68 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-85TI | 0.8 | 85 | 10 | 4.85 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-90TI | 0.8 | 90 | 10 | 5.13 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-95TI | 0.8 | 95 | 10 | 5.42 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-100TI | 0.8 | 100 | 14 | 5.84 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-110TI | 0.8 | 110 | 14 | 6.13 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-120TI | 0.8 | 120 | 14 | 6.42 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG0.8-18SL | 0.8 | 18 | 5 | 0.44 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-19SL | 0.8 | 19 | 5 | 0.47 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-20SL | 0.8 | 20 | 5 | 0.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-21SL | 0.8 | 21 | 5 | 0.65 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-22SL | 0.8 | 22 | 5 | 0.68 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-23SL | 0.8 | 23 | 5 | 0.71 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-24SL | 0.8 | 24 | 6 | 0.74 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-25SL | 0.8 | 25 | 6 | 0.77 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-26SL | 0.8 | 26 | 6 | 0.95 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-27SL | 0.8 | 27 | 6 | 0.98 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-28SL | 0.8 | 28 | 8 | 1.02 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-29SL | 0.8 | 29 | 8 | 1.06 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-30SL | 0.8 | 30 | 8 | 1.2 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-32SL | 0.8 | 32 | 8 | 1.28 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-35SL | 0.8 | 35 | 10 | 1.4 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-38SL | 0.8 | 38 | 10 | 1.52 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-40SL | 0.8 | 40 | 10 | 2.05 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-42SL | 0.8 | 42 | 10 | 2.15 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-45SL | 0.8 | 45 | 10 | 2.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-48SL | 0.8 | 48 | 10 | 2.46 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-50SL | 0.8 | 50 | 10 | 3.03 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-52SL | 0.8 | 52 | 10 | 3.16 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-55SL | 0.8 | 55 | 10 | 3.34 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-58SL | 0.8 | 58 | 10 | 3.52 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-60SL | 0.8 | 60 | 10 | 4.33 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-62SL | 0.8 | 62 | 10 | 4.48 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-65SL | 0.8 | 65 | 10 | 4.69 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-68SL | 0.8 | 68 | 10 | 4.91 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-70SL | 0.8 | 70 | 10 | 5.06 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-72SL | 0.8 | 72 | 10 | 5.2 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-75SL | 0.8 | 75 | 10 | 5.42 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-78SL | 0.8 | 78 | 10 | 5.63 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-80SL | 0.8 | 80 | 10 | 7.4 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-82SL | 0.8 | 82 | 10 | 7.58 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-85SL | 0.8 | 85 | 10 | 7.86 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-90SL | 0.8 | 90 | 10 | 8.32 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-95SL | 0.8 | 95 | 10 | 8.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-100SL | 0.8 | 100 | 14 | 11.15 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-110SL | 0.8 | 110 | 14 | 11.7 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-120SL | 0.8 | 120 | 14 | 12.26 | AISI 316 (EN 1.4401) Stainless Steel |
PSG0.8-18DL | 0.8 | 18 | 5 | 0.59 | Delrin POM |
PSG0.8-19DL | 0.8 | 19 | 5 | 0.64 | Delrin POM |
PSG0.8-20DL | 0.8 | 20 | 5 | 0.69 | Delrin POM |
PSG0.8-21DL | 0.8 | 21 | 5 | 0.74 | Delrin POM |
PSG0.8-22DL | 0.8 | 22 | 5 | 0.79 | Delrin POM |
PSG0.8-23DL | 0.8 | 23 | 5 | 0.84 | Delrin POM |
PSG0.8-24DL | 0.8 | 24 | 6 | 0.89 | Delrin POM |
PSG0.8-25DL | 0.8 | 25 | 6 | 0.95 | Delrin POM |
PSG0.8-26DL | 0.8 | 26 | 6 | 1 | Delrin POM |
PSG0.8-27DL | 0.8 | 27 | 6 | 1.05 | Delrin POM |
PSG0.8-28DL | 0.8 | 28 | 8 | 1.1 | Delrin POM |
PSG0.8-29DL | 0.8 | 29 | 8 | 1.16 | Delrin POM |
PSG0.8-30DL | 0.8 | 30 | 8 | 1.21 | Delrin POM |
PSG0.8-32DL | 0.8 | 32 | 8 | 1.31 | Delrin POM |
PSG0.8-35DL | 0.8 | 35 | 10 | 1.47 | Delrin POM |
PSG0.8-38DL | 0.8 | 38 | 10 | 1.63 | Delrin POM |
PSG0.8-40DL | 0.8 | 40 | 10 | 1.74 | Delrin POM |
PSG0.8-42DL | 0.8 | 42 | 10 | 1.84 | Delrin POM |
PSG0.8-45DL | 0.8 | 45 | 10 | 2.01 | Delrin POM |
PSG0.8-48DL | 0.8 | 48 | 10 | 2.17 | Delrin POM |
PSG0.8-50DL | 0.8 | 50 | 10 | 2.28 | Delrin POM |
PSG0.8-52DL | 0.8 | 52 | 10 | 2.39 | Delrin POM |
PSG0.8-55DL | 0.8 | 55 | 10 | 2.55 | Delrin POM |
PSG0.8-58DL | 0.8 | 58 | 10 | 2.72 | Delrin POM |
PSG0.8-60DL | 0.8 | 60 | 10 | 2.83 | Delrin POM |
PSG0.8-62DL | 0.8 | 62 | 10 | 2.94 | Delrin POM |
PSG0.8-65DL | 0.8 | 65 | 10 | 3.1 | Delrin POM |
PSG0.8-68DL | 0.8 | 68 | 10 | 3.26 | Delrin POM |
PSG0.8-70DL | 0.8 | 70 | 10 | 3.37 | Delrin POM |
PSG0.8-72DL | 0.8 | 72 | 10 | 3.48 | Delrin POM |
PSG0.8-75DL | 0.8 | 75 | 10 | 3.64 | Delrin POM |
PSG0.8-78DL | 0.8 | 78 | 10 | 3.81 | Delrin POM |
PSG0.8-80DL | 0.8 | 80 | 10 | 3.92 | Delrin POM |
PSG0.8-82DL | 0.8 | 82 | 10 | 4.03 | Delrin POM |
PSG0.8-85DL | 0.8 | 85 | 10 | 4.2 | Delrin POM |
PSG0.8-90DL | 0.8 | 90 | 10 | 4.47 | Delrin POM |
PSG0.8-95DL | 0.8 | 95 | 10 | 4.75 | Delrin POM |
PSG0.8-100DL | 0.8 | 100 | 14 | 5.02 | Delrin POM |
PSG0.8-110DL | 0.8 | 110 | 14 | 5.56 | Delrin POM |
PSG0.8-120DL | 0.8 | 120 | 14 | 6.11 | Delrin POM |
PSG0.8-18PK | 0.8 | 18 | 5 | 0.7 | PEEK GF30® |
PSG0.8-19PK | 0.8 | 19 | 5 | 0.78 | PEEK GF30® |
PSG0.8-20PK | 0.8 | 20 | 5 | 0.88 | PEEK GF30® |
PSG0.8-21PK | 0.8 | 21 | 5 | 0.98 | PEEK GF30® |
PSG0.8-22PK | 0.8 | 22 | 5 | 1.08 | PEEK GF30® |
PSG0.8-23PK | 0.8 | 23 | 5 | 1.15 | PEEK GF30® |
PSG0.8-24PK | 0.8 | 24 | 6 | 1.22 | PEEK GF30® |
PSG0.8-25PK | 0.8 | 25 | 6 | 1.29 | PEEK GF30® |
PSG0.8-26PK | 0.8 | 26 | 6 | 1.36 | PEEK GF30® |
PSG0.8-27PK | 0.8 | 27 | 6 | 1.43 | PEEK GF30® |
PSG0.8-28PK | 0.8 | 28 | 8 | 1.5 | PEEK GF30® |
PSG0.8-29PK | 0.8 | 29 | 8 | 1.58 | PEEK GF30® |
PSG0.8-30PK | 0.8 | 30 | 8 | 1.65 | PEEK GF30® |
PSG0.8-32PK | 0.8 | 32 | 8 | 1.79 | PEEK GF30® |
PSG0.8-35PK | 0.8 | 35 | 10 | 2 | PEEK GF30® |
PSG0.8-38PK | 0.8 | 38 | 10 | 2.22 | PEEK GF30® |
PSG0.8-40PK | 0.8 | 40 | 10 | 2.37 | PEEK GF30® |
PSG0.8-42PK | 0.8 | 42 | 10 | 2.51 | PEEK GF30® |
PSG0.8-45PK | 0.8 | 45 | 10 | 2.73 | PEEK GF30® |
PSG0.8-48PK | 0.8 | 48 | 10 | 2.96 | PEEK GF30® |
PSG0.8-50PK | 0.8 | 50 | 10 | 3.11 | PEEK GF30® |
PSG0.8-52PK | 0.8 | 52 | 10 | 3.26 | PEEK GF30® |
PSG0.8-55PK | 0.8 | 55 | 10 | 3.48 | PEEK GF30® |
PSG0.8-58PK | 0.8 | 58 | 10 | 3.71 | PEEK GF30® |
PSG0.8-60PK | 0.8 | 60 | 10 | 3.86 | PEEK GF30® |
PSG0.8-62PK | 0.8 | 62 | 10 | 4.01 | PEEK GF30® |
PSG0.8-65PK | 0.8 | 65 | 10 | 4.22 | PEEK GF30® |
PSG0.8-68PK | 0.8 | 68 | 10 | 4.45 | PEEK GF30® |
PSG0.8-70PK | 0.8 | 70 | 10 | 4.59 | PEEK GF30® |
PSG0.8-72PK | 0.8 | 72 | 10 | 4.74 | PEEK GF30® |
PSG0.8-75PK | 0.8 | 75 | 10 | 4.97 | PEEK GF30® |
PSG0.8-78PK | 0.8 | 78 | 10 | 5.19 | PEEK GF30® |
PSG0.8-80PK | 0.8 | 80 | 10 | 5.35 | PEEK GF30® |
PSG0.8-82PK | 0.8 | 82 | 10 | 5.5 | PEEK GF30® |
PSG0.8-85PK | 0.8 | 85 | 10 | 5.72 | PEEK GF30® |
PSG0.8-90PK | 0.8 | 90 | 10 | 6.1 | PEEK GF30® |
PSG0.8-95PK | 0.8 | 95 | 10 | 6.48 | PEEK GF30® |
PSG0.8-100PK | 0.8 | 100 | 14 | 6.85 | PEEK GF30® |
PSG0.8-110PK | 0.8 | 110 | 14 | 7.59 | PEEK GF30® |
PSG0.8-120PK | 0.8 | 120 | 14 | 8.33 | PEEK GF30® |
PSG1.5-18 | 1.5 | 18 | 6 | 5.49 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-19 | 1.5 | 19 | 6 | 5.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-20 | 1.5 | 20 | 6 | 7.71 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-21 | 1.5 | 21 | 8 | 8.1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-22 | 1.5 | 22 | 8 | 8.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-23 | 1.5 | 23 | 8 | 8.87 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-24 | 1.5 | 24 | 8 | 9.25 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-25 | 1.5 | 25 | 8 | 9.64 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-26 | 1.5 | 26 | 8 | 11.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-27 | 1.5 | 27 | 8 | 12.25 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-28 | 1.5 | 28 | 8 | 12.7 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-29 | 1.5 | 29 | 10 | 13.15 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-30 | 1.5 | 30 | 10 | 14.97 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-32 | 1.5 | 32 | 10 | 15.97 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-35 | 1.5 | 35 | 10 | 17.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-38 | 1.5 | 38 | 12 | 18.96 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-40 | 1.5 | 40 | 12 | 25.5 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-42 | 1.5 | 42 | 12 | 26.78 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-45 | 1.5 | 45 | 12 | 28.69 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-48 | 1.5 | 48 | 12 | 30.6 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-50 | 1.5 | 50 | 14 | 37.8 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-52 | 1.5 | 52 | 14 | 39.31 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-55 | 1.5 | 55 | 14 | 41.58 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-58 | 1.5 | 58 | 14 | 43.85 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-60 | 1.5 | 60 | 14 | 53.98 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-62 | 1.5 | 62 | 14 | 55.78 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-65 | 1.5 | 65 | 14 | 58.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-68 | 1.5 | 68 | 16 | 61.18 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-70 | 1.5 | 70 | 16 | 62.98 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-72 | 1.5 | 72 | 16 | 64.78 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-75 | 1.5 | 75 | 16 | 67.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-78 | 1.5 | 78 | 16 | 70.17 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-80 | 1.5 | 80 | 16 | 92.13 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-82 | 1.5 | 82 | 16 | 94.44 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-85 | 1.5 | 85 | 16 | 97.89 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-88 | 1.5 | 88 | 16 | 101.35 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-90 | 1.5 | 90 | 16 | 103.65 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-92 | 1.5 | 92 | 16 | 105.95 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-95 | 1.5 | 95 | 16 | 109.41 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-98 | 1.5 | 98 | 16 | 112.86 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.5-18H | 1.5 | 18 | 6 | 20.13 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-19H | 1.5 | 19 | 6 | 21.24 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-20H | 1.5 | 20 | 6 | 28.28 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-21H | 1.5 | 21 | 8 | 29.69 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-22H | 1.5 | 22 | 8 | 31.1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-23H | 1.5 | 23 | 8 | 32.52 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-24H | 1.5 | 24 | 8 | 33.93 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-25H | 1.5 | 25 | 8 | 35.34 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-26H | 1.5 | 26 | 8 | 38.88 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-27H | 1.5 | 27 | 8 | 40.38 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-28H | 1.5 | 28 | 8 | 41.87 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-29H | 1.5 | 29 | 10 | 43.37 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-30H | 1.5 | 30 | 10 | 44.58 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-32H | 1.5 | 32 | 10 | 47.55 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-35H | 1.5 | 35 | 10 | 52.01 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-38H | 1.5 | 38 | 12 | 56.47 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-40H | 1.5 | 40 | 12 | 66.12 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-42H | 1.5 | 42 | 12 | 69.42 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-45H | 1.5 | 45 | 12 | 74.38 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-48H | 1.5 | 48 | 12 | 79.34 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-50H | 1.5 | 50 | 14 | 89.68 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-52H | 1.5 | 52 | 14 | 93.27 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-55H | 1.5 | 55 | 14 | 98.65 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-58H | 1.5 | 58 | 14 | 104.03 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-60H | 1.5 | 60 | 14 | 112.05 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-62H | 1.5 | 62 | 14 | 115.79 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-65H | 1.5 | 65 | 14 | 121.39 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-68H | 1.5 | 68 | 16 | 127 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-70H | 1.5 | 70 | 16 | 130.73 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-72H | 1.5 | 72 | 16 | 134.47 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-75H | 1.5 | 75 | 16 | 140.07 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-78H | 1.5 | 78 | 16 | 145.67 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-80H | 1.5 | 80 | 16 | 156.66 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-82H | 1.5 | 82 | 16 | 160.57 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-85H | 1.5 | 85 | 16 | 166.45 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-88H | 1.5 | 88 | 16 | 172.32 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-90H | 1.5 | 90 | 16 | 176.24 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-92H | 1.5 | 92 | 16 | 180.16 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-95H | 1.5 | 95 | 16 | 186.03 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-98H | 1.5 | 98 | 16 | 191.9 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.5-18S | 1.5 | 18 | 6 | 3.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-19S | 1.5 | 19 | 6 | 3.48 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-20S | 1.5 | 20 | 6 | 4.63 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-21S | 1.5 | 21 | 8 | 4.86 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-22S | 1.5 | 22 | 8 | 5.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-23S | 1.5 | 23 | 8 | 5.32 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-24S | 1.5 | 24 | 8 | 5.55 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-25S | 1.5 | 25 | 8 | 5.78 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-26S | 1.5 | 26 | 8 | 7.08 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-27S | 1.5 | 27 | 8 | 7.35 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-28S | 1.5 | 28 | 8 | 7.62 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-29S | 1.5 | 29 | 10 | 7.89 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-30S | 1.5 | 30 | 10 | 8.98 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-32S | 1.5 | 32 | 10 | 9.58 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-35S | 1.5 | 35 | 10 | 10.48 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-38S | 1.5 | 38 | 12 | 11.38 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-40S | 1.5 | 40 | 12 | 15.3 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-42S | 1.5 | 42 | 12 | 16.07 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-45S | 1.5 | 45 | 12 | 17.21 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-48S | 1.5 | 48 | 12 | 18.36 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-50S | 1.5 | 50 | 14 | 22.68 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-52S | 1.5 | 52 | 14 | 23.59 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-55S | 1.5 | 55 | 14 | 24.95 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-58S | 1.5 | 58 | 14 | 26.31 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-60S | 1.5 | 60 | 14 | 32.39 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-62S | 1.5 | 62 | 14 | 33.47 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-65S | 1.5 | 65 | 14 | 35.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-68S | 1.5 | 68 | 16 | 36.71 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-70S | 1.5 | 70 | 16 | 37.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-72S | 1.5 | 72 | 16 | 38.87 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-75S | 1.5 | 75 | 16 | 40.49 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-78S | 1.5 | 78 | 16 | 42.1 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-80S | 1.5 | 80 | 16 | 55.28 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-82S | 1.5 | 82 | 16 | 56.66 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-85S | 1.5 | 85 | 16 | 58.74 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-88S | 1.5 | 88 | 16 | 60.81 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-90S | 1.5 | 90 | 16 | 62.19 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-92S | 1.5 | 92 | 16 | 63.57 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-95S | 1.5 | 95 | 16 | 65.65 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-98S | 1.5 | 98 | 16 | 67.72 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.5-18TI | 1.5 | 18 | 6 | 1.65 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-19TI | 1.5 | 19 | 6 | 1.74 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-20TI | 1.5 | 20 | 6 | 2.31 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-21TI | 1.5 | 21 | 8 | 2.43 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-22TI | 1.5 | 22 | 8 | 2.54 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-23TI | 1.5 | 23 | 8 | 2.66 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-24TI | 1.5 | 24 | 8 | 2.78 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-25TI | 1.5 | 25 | 8 | 2.89 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-26TI | 1.5 | 26 | 8 | 3.54 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-27TI | 1.5 | 27 | 8 | 3.67 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-28TI | 1.5 | 28 | 8 | 3.81 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-29TI | 1.5 | 29 | 10 | 3.95 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-30TI | 1.5 | 30 | 10 | 4.49 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-32TI | 1.5 | 32 | 10 | 4.79 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-35TI | 1.5 | 35 | 10 | 5.24 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-38TI | 1.5 | 38 | 12 | 5.69 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-40TI | 1.5 | 40 | 12 | 7.65 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-42TI | 1.5 | 42 | 12 | 8.03 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-45TI | 1.5 | 45 | 12 | 8.61 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-48TI | 1.5 | 48 | 12 | 9.18 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-50TI | 1.5 | 50 | 14 | 11.34 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-52TI | 1.5 | 52 | 14 | 11.79 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-55TI | 1.5 | 55 | 14 | 12.47 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-58TI | 1.5 | 58 | 14 | 13.15 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-60TI | 1.5 | 60 | 14 | 16.19 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-62TI | 1.5 | 62 | 14 | 16.73 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-65TI | 1.5 | 65 | 14 | 17.54 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-68TI | 1.5 | 68 | 16 | 18.35 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-70TI | 1.5 | 70 | 16 | 18.89 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-72TI | 1.5 | 72 | 16 | 19.43 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-75TI | 1.5 | 75 | 16 | 20.24 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-78TI | 1.5 | 78 | 16 | 21.05 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-80TI | 1.5 | 80 | 16 | 27.64 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-82TI | 1.5 | 82 | 16 | 28.33 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-85TI | 1.5 | 85 | 16 | 29.37 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-88TI | 1.5 | 88 | 16 | 30.4 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-90TI | 1.5 | 90 | 16 | 31.1 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-92TI | 1.5 | 92 | 16 | 31.79 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-95TI | 1.5 | 95 | 16 | 32.82 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-98TI | 1.5 | 98 | 16 | 33.86 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.5-18SL | 1.5 | 18 | 6 | 2.56 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-19SL | 1.5 | 19 | 6 | 2.7 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-20SL | 1.5 | 20 | 6 | 3.6 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-21SL | 1.5 | 21 | 8 | 3.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-22SL | 1.5 | 22 | 8 | 3.96 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-23SL | 1.5 | 23 | 8 | 4.14 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-24SL | 1.5 | 24 | 8 | 4.32 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-25SL | 1.5 | 25 | 8 | 4.5 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-26SL | 1.5 | 26 | 8 | 5.5 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-27SL | 1.5 | 27 | 8 | 5.72 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-28SL | 1.5 | 28 | 8 | 5.93 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-29SL | 1.5 | 29 | 10 | 6.14 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-30SL | 1.5 | 30 | 10 | 6.99 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-32SL | 1.5 | 32 | 10 | 7.45 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-35SL | 1.5 | 35 | 10 | 8.15 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-38SL | 1.5 | 38 | 12 | 8.85 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-40SL | 1.5 | 40 | 12 | 11.9 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-42SL | 1.5 | 42 | 12 | 12.5 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-45SL | 1.5 | 45 | 12 | 13.39 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-48SL | 1.5 | 48 | 12 | 14.28 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-50SL | 1.5 | 50 | 14 | 17.64 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-52SL | 1.5 | 52 | 14 | 18.35 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-55SL | 1.5 | 55 | 14 | 19.4 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-58SL | 1.5 | 58 | 14 | 20.46 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-60SL | 1.5 | 60 | 14 | 25.19 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-62SL | 1.5 | 62 | 14 | 26.03 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-65SL | 1.5 | 65 | 14 | 27.29 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-68SL | 1.5 | 68 | 16 | 28.55 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-70SL | 1.5 | 70 | 16 | 29.39 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-72SL | 1.5 | 72 | 16 | 30.23 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-75SL | 1.5 | 75 | 16 | 31.49 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-78SL | 1.5 | 78 | 16 | 32.75 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-80SL | 1.5 | 80 | 16 | 43 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-82SL | 1.5 | 82 | 16 | 44.07 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-85SL | 1.5 | 85 | 16 | 45.68 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-88SL | 1.5 | 88 | 16 | 47.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-90SL | 1.5 | 90 | 16 | 48.37 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-92SL | 1.5 | 92 | 16 | 49.45 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-95SL | 1.5 | 95 | 16 | 51.06 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-98SL | 1.5 | 98 | 16 | 52.67 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.5-18DL | 1.5 | 18 | 6 | 1.9 | Delrin POM |
PSG1.5-19DL | 1.5 | 19 | 6 | 2.14 | Delrin POM |
PSG1.5-20DL | 1.5 | 20 | 6 | 2.4 | Delrin POM |
PSG1.5-21DL | 1.5 | 21 | 8 | 2.67 | Delrin POM |
PSG1.5-22DL | 1.5 | 22 | 8 | 2.96 | Delrin POM |
PSG1.5-23DL | 1.5 | 23 | 8 | 3.27 | Delrin POM |
PSG1.5-24DL | 1.5 | 24 | 8 | 3.59 | Delrin POM |
PSG1.5-25DL | 1.5 | 25 | 8 | 3.93 | Delrin POM |
PSG1.5-26DL | 1.5 | 26 | 8 | 4.3 | Delrin POM |
PSG1.5-27DL | 1.5 | 27 | 8 | 4.67 | Delrin POM |
PSG1.5-28DL | 1.5 | 28 | 8 | 5.07 | Delrin POM |
PSG1.5-29DL | 1.5 | 29 | 10 | 5.49 | Delrin POM |
PSG1.5-30DL | 1.5 | 30 | 10 | 5.93 | Delrin POM |
PSG1.5-32DL | 1.5 | 32 | 10 | 6.86 | Delrin POM |
PSG1.5-35DL | 1.5 | 35 | 10 | 7.98 | Delrin POM |
PSG1.5-38DL | 1.5 | 38 | 12 | 8.86 | Delrin POM |
PSG1.5-40DL | 1.5 | 40 | 12 | 9.45 | Delrin POM |
PSG1.5-42DL | 1.5 | 42 | 12 | 10.03 | Delrin POM |
PSG1.5-45DL | 1.5 | 45 | 12 | 10.9 | Delrin POM |
PSG1.5-48DL | 1.5 | 48 | 12 | 11.79 | Delrin POM |
PSG1.5-50DL | 1.5 | 50 | 14 | 12.4 | Delrin POM |
PSG1.5-52DL | 1.5 | 52 | 14 | 12.99 | Delrin POM |
PSG1.5-55DL | 1.5 | 55 | 14 | 13.88 | Delrin POM |
PSG1.5-58DL | 1.5 | 58 | 14 | 14.78 | Delrin POM |
PSG1.5-60DL | 1.5 | 60 | 14 | 15.39 | Delrin POM |
PSG1.5-62DL | 1.5 | 62 | 14 | 15.97 | Delrin POM |
PSG1.5-65DL | 1.5 | 65 | 14 | 16.84 | Delrin POM |
PSG1.5-68DL | 1.5 | 68 | 16 | 17.72 | Delrin POM |
PSG1.5-70DL | 1.5 | 70 | 16 | 18.31 | Delrin POM |
PSG1.5-72DL | 1.5 | 72 | 16 | 18.91 | Delrin POM |
PSG1.5-75DL | 1.5 | 75 | 16 | 19.8 | Delrin POM |
PSG1.5-78DL | 1.5 | 78 | 16 | 20.71 | Delrin POM |
PSG1.5-80DL | 1.5 | 80 | 16 | 21.31 | Delrin POM |
PSG1.5-82DL | 1.5 | 82 | 16 | 21.93 | Delrin POM |
PSG1.5-85DL | 1.5 | 85 | 16 | 22.82 | Delrin POM |
PSG1.5-88DL | 1.5 | 88 | 16 | 23.72 | Delrin POM |
PSG1.5-90DL | 1.5 | 90 | 16 | 24.31 | Delrin POM |
PSG1.5-92DL | 1.5 | 92 | 16 | 24.91 | Delrin POM |
PSG1.5-95DL | 1.5 | 95 | 16 | 25.82 | Delrin POM |
PSG1.5-98DL | 1.5 | 98 | 16 | 26.73 | Delrin POM |
PSG1.5-18PK | 1.5 | 18 | 6 | 2.15 | PEEK GF30® |
PSG1.5-19PK | 1.5 | 19 | 6 | 2.43 | PEEK GF30® |
PSG1.5-20PK | 1.5 | 20 | 6 | 2.71 | PEEK GF30® |
PSG1.5-21PK | 1.5 | 21 | 8 | 3.02 | PEEK GF30® |
PSG1.5-22PK | 1.5 | 22 | 8 | 3.35 | PEEK GF30® |
PSG1.5-23PK | 1.5 | 23 | 8 | 3.7 | PEEK GF30® |
PSG1.5-24PK | 1.5 | 24 | 8 | 4.06 | PEEK GF30® |
PSG1.5-25PK | 1.5 | 25 | 8 | 4.45 | PEEK GF30® |
PSG1.5-26PK | 1.5 | 26 | 8 | 4.86 | PEEK GF30® |
PSG1.5-27PK | 1.5 | 27 | 8 | 5.29 | PEEK GF30® |
PSG1.5-28PK | 1.5 | 28 | 8 | 5.74 | PEEK GF30® |
PSG1.5-29PK | 1.5 | 29 | 10 | 6.21 | PEEK GF30® |
PSG1.5-30PK | 1.5 | 30 | 10 | 6.7 | PEEK GF30® |
PSG1.5-32PK | 1.5 | 32 | 10 | 7.76 | PEEK GF30® |
PSG1.5-35PK | 1.5 | 35 | 10 | 9.51 | PEEK GF30® |
PSG1.5-38PK | 1.5 | 38 | 12 | 11.47 | PEEK GF30® |
PSG1.5-40PK | 1.5 | 40 | 12 | 12.89 | PEEK GF30® |
PSG1.5-42PK | 1.5 | 42 | 12 | 13.67 | PEEK GF30® |
PSG1.5-45PK | 1.5 | 45 | 12 | 14.86 | PEEK GF30® |
PSG1.5-48PK | 1.5 | 48 | 12 | 16.08 | PEEK GF30® |
PSG1.5-50PK | 1.5 | 50 | 14 | 16.91 | PEEK GF30® |
PSG1.5-52PK | 1.5 | 52 | 14 | 17.71 | PEEK GF30® |
PSG1.5-55PK | 1.5 | 55 | 14 | 18.92 | PEEK GF30® |
PSG1.5-58PK | 1.5 | 58 | 14 | 20.15 | PEEK GF30® |
PSG1.5-60PK | 1.5 | 60 | 14 | 20.98 | PEEK GF30® |
PSG1.5-62PK | 1.5 | 62 | 14 | 21.77 | PEEK GF30® |
PSG1.5-65PK | 1.5 | 65 | 14 | 22.97 | PEEK GF30® |
PSG1.5-68PK | 1.5 | 68 | 16 | 24.17 | PEEK GF30® |
PSG1.5-70PK | 1.5 | 70 | 16 | 24.97 | PEEK GF30® |
PSG1.5-72PK | 1.5 | 72 | 16 | 25.78 | PEEK GF30® |
PSG1.5-75PK | 1.5 | 75 | 16 | 27 | PEEK GF30® |
PSG1.5-78PK | 1.5 | 78 | 16 | 28.23 | PEEK GF30® |
PSG1.5-80PK | 1.5 | 80 | 16 | 29.06 | PEEK GF30® |
PSG1.5-82PK | 1.5 | 82 | 16 | 29.91 | PEEK GF30® |
PSG1.5-85PK | 1.5 | 85 | 16 | 31.12 | PEEK GF30® |
PSG1.5-88PK | 1.5 | 88 | 16 | 32.34 | PEEK GF30® |
PSG1.5-90PK | 1.5 | 90 | 16 | 33.16 | PEEK GF30® |
PSG1.5-92PK | 1.5 | 92 | 16 | 33.97 | PEEK GF30® |
PSG1.5-95PK | 1.5 | 95 | 16 | 35.21 | PEEK GF30® |
PSG1.5-98PK | 1.5 | 98 | 16 | 36.45 | PEEK GF30® |
PSG1.5-18CI | 1.5 | 18 | 6 | 2.47 | Cast Iron GG25 |
PSG1.5-19CI | 1.5 | 19 | 6 | 2.61 | Cast Iron GG25 |
PSG1.5-20CI | 1.5 | 20 | 6 | 3.47 | Cast Iron GG25 |
PSG1.5-21CI | 1.5 | 21 | 8 | 3.64 | Cast Iron GG25 |
PSG1.5-22CI | 1.5 | 22 | 8 | 3.82 | Cast Iron GG25 |
PSG1.5-23CI | 1.5 | 23 | 8 | 3.99 | Cast Iron GG25 |
PSG1.5-24CI | 1.5 | 24 | 8 | 4.16 | Cast Iron GG25 |
PSG1.5-25CI | 1.5 | 25 | 8 | 4.34 | Cast Iron GG25 |
PSG1.5-26CI | 1.5 | 26 | 8 | 5.31 | Cast Iron GG25 |
PSG1.5-27CI | 1.5 | 27 | 8 | 5.51 | Cast Iron GG25 |
PSG1.5-28CI | 1.5 | 28 | 8 | 5.72 | Cast Iron GG25 |
PSG1.5-29CI | 1.5 | 29 | 10 | 5.92 | Cast Iron GG25 |
PSG1.5-30CI | 1.5 | 30 | 10 | 6.74 | Cast Iron GG25 |
PSG1.5-32CI | 1.5 | 32 | 10 | 7.19 | Cast Iron GG25 |
PSG1.5-35CI | 1.5 | 35 | 10 | 7.86 | Cast Iron GG25 |
PSG1.5-38CI | 1.5 | 38 | 12 | N/A | Cast Iron GG25 |
PSG1.5-40CI | 1.5 | 40 | 12 | 10.05 | Cast Iron GG25 |
PSG1.5-42CI | 1.5 | 42 | 12 | 10.55 | Cast Iron GG25 |
PSG1.5-45CI | 1.5 | 45 | 12 | 11.31 | Cast Iron GG25 |
PSG1.5-48CI | 1.5 | 48 | 12 | 12.06 | Cast Iron GG25 |
PSG1.5-50CI | 1.5 | 50 | 14 | 13.63 | Cast Iron GG25 |
PSG1.5-52CI | 1.5 | 52 | 14 | 14.18 | Cast Iron GG25 |
PSG1.5-55CI | 1.5 | 55 | 14 | 14.99 | Cast Iron GG25 |
PSG1.5-58CI | 1.5 | 58 | 14 | 15.81 | Cast Iron GG25 |
PSG1.5-60CI | 1.5 | 60 | 14 | 17.03 | Cast Iron GG25 |
PSG1.5-62CI | 1.5 | 62 | 14 | 17.6 | Cast Iron GG25 |
PSG1.5-65CI | 1.5 | 65 | 14 | 18.45 | Cast Iron GG25 |
PSG1.5-68CI | 1.5 | 68 | 16 | 19.3 | Cast Iron GG25 |
PSG1.5-70CI | 1.5 | 70 | 16 | 19.87 | Cast Iron GG25 |
PSG1.5-72CI | 1.5 | 72 | 16 | 20.44 | Cast Iron GG25 |
PSG1.5-75CI | 1.5 | 75 | 16 | 21.29 | Cast Iron GG25 |
PSG1.5-78CI | 1.5 | 78 | 16 | 22.14 | Cast Iron GG25 |
PSG1.5-80CI | 1.5 | 80 | 16 | 23.81 | Cast Iron GG25 |
PSG1.5-82CI | 1.5 | 82 | 16 | 24.41 | Cast Iron GG25 |
PSG1.5-85CI | 1.5 | 85 | 16 | 25.3 | Cast Iron GG25 |
PSG1.5-88CI | 1.5 | 88 | 16 | 26.19 | Cast Iron GG25 |
PSG1.5-90CI | 1.5 | 90 | 16 | 26.79 | Cast Iron GG25 |
PSG1.5-92CI | 1.5 | 92 | 16 | 27.38 | Cast Iron GG25 |
PSG1.5-95CI | 1.5 | 95 | 16 | 28.28 | Cast Iron GG25 |
PSG1.5-98CI | 1.5 | 98 | 16 | 29.17 | Cast Iron GG25 |
PSG2.0-18 | 2 | 18 | 10 | 12.28 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-19 | 2 | 19 | 10 | 12.97 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-20 | 2 | 20 | 10 | 17.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-21 | 2 | 21 | 12 | 18.12 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-22 | 2 | 22 | 12 | 18.98 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-23 | 2 | 23 | 12 | 19.85 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-24 | 2 | 24 | 12 | 20.71 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-25 | 2 | 25 | 12 | 21.57 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-26 | 2 | 26 | 12 | 26.39 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-27 | 2 | 27 | 12 | 27.41 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-28 | 2 | 28 | 12 | 28.42 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-29 | 2 | 29 | 14 | 29.44 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-30 | 2 | 30 | 14 | 33.5 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-32 | 2 | 32 | 14 | 35.73 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-35 | 2 | 35 | 14 | 39.08 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-38 | 2 | 38 | 14 | 42.43 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-40 | 2 | 40 | 16 | 57.07 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-42 | 2 | 42 | 16 | 59.93 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-45 | 2 | 45 | 16 | 64.21 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-48 | 2 | 48 | 16 | 68.49 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-50 | 2 | 50 | 20 | 84.59 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-52 | 2 | 52 | 20 | 87.98 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-55 | 2 | 55 | 20 | 93.05 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-58 | 2 | 58 | 20 | 98.13 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-60 | 2 | 60 | 20 | 120.8 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-62 | 2 | 62 | 20 | 124.83 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-65 | 2 | 65 | 20 | 130.87 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-68 | 2 | 68 | 20 | 136.91 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-70 | 2 | 70 | 20 | 140.93 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-72 | 2 | 72 | 20 | 144.96 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-18H | 2 | 18 | 10 | 45.04 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-19H | 2 | 19 | 10 | 47.54 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-20H | 2 | 20 | 10 | 63.28 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-21H | 2 | 21 | 12 | 66.44 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-22H | 2 | 22 | 12 | 69.6 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-23H | 2 | 23 | 12 | 72.77 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-24H | 2 | 24 | 12 | 75.93 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-25H | 2 | 25 | 12 | 79.09 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-26H | 2 | 26 | 12 | 92.17 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-27H | 2 | 27 | 12 | 95.71 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-28H | 2 | 28 | 12 | 99.26 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-29H | 2 | 29 | 14 | 102.8 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-30H | 2 | 30 | 14 | 105.67 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-32H | 2 | 32 | 14 | 112.71 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-35H | 2 | 35 | 14 | 123.28 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-38H | 2 | 38 | 14 | 133.85 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-40H | 2 | 40 | 16 | 156.72 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-42H | 2 | 42 | 16 | 164.56 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-45H | 2 | 45 | 16 | 176.31 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-48H | 2 | 48 | 16 | 188.06 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-50H | 2 | 50 | 20 | 212.58 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-52H | 2 | 52 | 20 | 221.08 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-55H | 2 | 55 | 20 | 233.84 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-58H | 2 | 58 | 20 | 246.59 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-60H | 2 | 60 | 20 | 265.61 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-62H | 2 | 62 | 20 | 274.46 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-65H | 2 | 65 | 20 | 287.75 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-68H | 2 | 68 | 20 | 301.03 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-70H | 2 | 70 | 20 | 309.88 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-72H | 2 | 72 | 20 | 318.73 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-18S | 2 | 18 | 10 | 7.37 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-19S | 2 | 19 | 10 | 7.78 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-20S | 2 | 20 | 10 | 10.35 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-21S | 2 | 21 | 12 | 10.87 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-22S | 2 | 22 | 12 | 11.39 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-23S | 2 | 23 | 12 | 11.91 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-24S | 2 | 24 | 12 | 12.43 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-25S | 2 | 25 | 12 | 12.94 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-26S | 2 | 26 | 12 | 15.84 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-27S | 2 | 27 | 12 | 16.44 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-28S | 2 | 28 | 12 | 17.05 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-29S | 2 | 29 | 14 | 17.66 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-30S | 2 | 30 | 14 | 20.1 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-32S | 2 | 32 | 14 | 21.44 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-35S | 2 | 35 | 14 | 23.45 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-38S | 2 | 38 | 14 | 25.46 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-40S | 2 | 40 | 16 | 34.24 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-42S | 2 | 42 | 16 | 35.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-45S | 2 | 45 | 16 | 38.52 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-48S | 2 | 48 | 16 | 41.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-50S | 2 | 50 | 20 | 50.76 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-52S | 2 | 52 | 20 | 52.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-55S | 2 | 55 | 20 | 55.83 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-58S | 2 | 58 | 20 | 58.88 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-60S | 2 | 60 | 20 | 72.48 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-62S | 2 | 62 | 20 | 74.9 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-65S | 2 | 65 | 20 | 78.52 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-68S | 2 | 68 | 20 | 82.14 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-70S | 2 | 70 | 20 | 84.56 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-72S | 2 | 72 | 20 | 86.98 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-18CI | 2 | 18 | 10 | 5.53 | Cast Iron GG25 |
PSG2.0-19CI | 2 | 19 | 10 | 5.83 | Cast Iron GG25 |
PSG2.0-20CI | 2 | 20 | 10 | 7.77 | Cast Iron GG25 |
PSG2.0-21CI | 2 | 21 | 12 | 8.15 | Cast Iron GG25 |
PSG2.0-22CI | 2 | 22 | 12 | 8.54 | Cast Iron GG25 |
PSG2.0-23CI | 2 | 23 | 12 | 8.93 | Cast Iron GG25 |
PSG2.0-24CI | 2 | 24 | 12 | 9.32 | Cast Iron GG25 |
PSG2.0-25CI | 2 | 25 | 12 | 9.71 | Cast Iron GG25 |
PSG2.0-26CI | 2 | 26 | 12 | 11.88 | Cast Iron GG25 |
PSG2.0-27CI | 2 | 27 | 12 | 12.33 | Cast Iron GG25 |
PSG2.0-28CI | 2 | 28 | 12 | 12.79 | Cast Iron GG25 |
PSG2.0-29CI | 2 | 29 | 14 | 13.25 | Cast Iron GG25 |
PSG2.0-30CI | 2 | 30 | 14 | 15.07 | Cast Iron GG25 |
PSG2.0-32CI | 2 | 32 | 14 | 16.08 | Cast Iron GG25 |
PSG2.0-35CI | 2 | 35 | 14 | 17.59 | Cast Iron GG25 |
PSG2.0-38CI | 2 | 38 | 14 | 19.09 | Cast Iron GG25 |
PSG2.0-40CI | 2 | 40 | 16 | 23.82 | Cast Iron GG25 |
PSG2.0-42CI | 2 | 42 | 16 | 25.01 | Cast Iron GG25 |
PSG2.0-45CI | 2 | 45 | 16 | 26.8 | Cast Iron GG25 |
PSG2.0-48CI | 2 | 48 | 16 | 28.59 | Cast Iron GG25 |
PSG2.0-50CI | 2 | 50 | 20 | 32.31 | Cast Iron GG25 |
PSG2.0-52CI | 2 | 52 | 20 | 33.6 | Cast Iron GG25 |
PSG2.0-55CI | 2 | 55 | 20 | 35.54 | Cast Iron GG25 |
PSG2.0-58CI | 2 | 58 | 20 | 37.48 | Cast Iron GG25 |
PSG2.0-60CI | 2 | 60 | 20 | 40.37 | Cast Iron GG25 |
PSG2.0-62CI | 2 | 62 | 20 | 41.72 | Cast Iron GG25 |
PSG2.0-65CI | 2 | 65 | 20 | 43.74 | Cast Iron GG25 |
PSG2.0-68CI | 2 | 68 | 20 | 45.76 | Cast Iron GG25 |
PSG2.0-70CI | 2 | 70 | 20 | 47.1 | Cast Iron GG25 |
PSG2.0-72CI | 2 | 72 | 20 | N/A | Cast Iron GG25 |
PSG2.0-18SL | 2 | 18 | 10 | 5.73 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-19SL | 2 | 19 | 10 | 6.05 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-20SL | 2 | 20 | 10 | 8.05 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-21SL | 2 | 21 | 12 | 8.46 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-22SL | 2 | 22 | 12 | 8.86 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-23SL | 2 | 23 | 12 | 9.26 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-24SL | 2 | 24 | 12 | 9.66 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-25SL | 2 | 25 | 12 | 10.07 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-26SL | 2 | 26 | 12 | 12.32 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-27SL | 2 | 27 | 12 | 12.79 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-28SL | 2 | 28 | 12 | 13.26 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-29SL | 2 | 29 | 14 | 13.74 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-30SL | 2 | 30 | 14 | 15.63 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-32SL | 2 | 32 | 14 | 16.68 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-35SL | 2 | 35 | 14 | 18.24 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-38SL | 2 | 38 | 14 | 19.8 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-40SL | 2 | 40 | 16 | 26.63 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-42SL | 2 | 42 | 16 | 27.97 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-45SL | 2 | 45 | 16 | 29.96 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-48SL | 2 | 48 | 16 | 31.96 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-50SL | 2 | 50 | 20 | 39.48 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-52SL | 2 | 52 | 20 | 41.06 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-55SL | 2 | 55 | 20 | 43.42 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-58SL | 2 | 58 | 20 | 45.79 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-60SL | 2 | 60 | 20 | 56.37 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-62SL | 2 | 62 | 20 | 58.25 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-65SL | 2 | 65 | 20 | 61.07 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-68SL | 2 | 68 | 20 | 63.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-70SL | 2 | 70 | 20 | 65.77 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-72SL | 2 | 72 | 20 | 67.65 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-18DL | 2 | 18 | 10 | 3.2 | Delrin POM |
PSG2.0-19DL | 2 | 19 | 10 | 3.6 | Delrin POM |
PSG2.0-20DL | 2 | 20 | 10 | 4.03 | Delrin POM |
PSG2.0-21DL | 2 | 21 | 12 | 4.48 | Delrin POM |
PSG2.0-22DL | 2 | 22 | 12 | 4.97 | Delrin POM |
PSG2.0-23DL | 2 | 23 | 12 | 5.48 | Delrin POM |
PSG2.0-24DL | 2 | 24 | 12 | 6.03 | Delrin POM |
PSG2.0-25DL | 2 | 25 | 12 | 6.6 | Delrin POM |
PSG2.0-26DL | 2 | 26 | 12 | 7.21 | Delrin POM |
PSG2.0-27DL | 2 | 27 | 12 | 7.85 | Delrin POM |
PSG2.0-28DL | 2 | 28 | 12 | 8.51 | Delrin POM |
PSG2.0-29DL | 2 | 29 | 14 | 9.21 | Delrin POM |
PSG2.0-30DL | 2 | 30 | 14 | 9.95 | Delrin POM |
PSG2.0-32DL | 2 | 32 | 14 | 11.51 | Delrin POM |
PSG2.0-35DL | 2 | 35 | 14 | 14.1 | Delrin POM |
PSG2.0-38DL | 2 | 38 | 14 | 17.01 | Delrin POM |
PSG2.0-40DL | 2 | 40 | 16 | 19.13 | Delrin POM |
PSG2.0-42DL | 2 | 42 | 16 | 21.14 | Delrin POM |
PSG2.0-45DL | 2 | 45 | 16 | 22.99 | Delrin POM |
PSG2.0-48DL | 2 | 48 | 16 | 24.87 | Delrin POM |
PSG2.0-50DL | 2 | 50 | 20 | 26.15 | Delrin POM |
PSG2.0-52DL | 2 | 52 | 20 | 27.39 | Delrin POM |
PSG2.0-55DL | 2 | 55 | 20 | 29.27 | Delrin POM |
PSG2.0-58DL | 2 | 58 | 20 | 31.17 | Delrin POM |
PSG2.0-60DL | 2 | 60 | 20 | 32.45 | Delrin POM |
PSG2.0-62DL | 2 | 62 | 20 | 33.68 | Delrin POM |
PSG2.0-65DL | 2 | 65 | 20 | 35.52 | Delrin POM |
PSG2.0-68DL | 2 | 68 | 20 | 37.38 | Delrin POM |
PSG2.0-70DL | 2 | 70 | 20 | 38.62 | Delrin POM |
PSG2.0-72DL | 2 | 72 | 20 | 39.88 | Delrin POM |
PSG2.0-18PK | 2 | 18 | 10 | 3.62 | PEEK GF30® |
PSG2.0-19PK | 2 | 19 | 10 | 4.07 | PEEK GF30® |
PSG2.0-20PK | 2 | 20 | 10 | 4.56 | PEEK GF30® |
PSG2.0-21PK | 2 | 21 | 12 | 5.07 | PEEK GF30® |
PSG2.0-22PK | 2 | 22 | 12 | 5.62 | PEEK GF30® |
PSG2.0-23PK | 2 | 23 | 12 | 6.21 | PEEK GF30® |
PSG2.0-24PK | 2 | 24 | 12 | 6.82 | PEEK GF30® |
PSG2.0-25PK | 2 | 25 | 12 | 7.47 | PEEK GF30® |
PSG2.0-26PK | 2 | 26 | 12 | 8.16 | PEEK GF30® |
PSG2.0-27PK | 2 | 27 | 12 | 8.88 | PEEK GF30® |
PSG2.0-28PK | 2 | 28 | 12 | 9.63 | PEEK GF30® |
PSG2.0-29PK | 2 | 29 | 14 | 10.42 | PEEK GF30® |
PSG2.0-30PK | 2 | 30 | 14 | 11.25 | PEEK GF30® |
PSG2.0-32PK | 2 | 32 | 14 | 13.02 | PEEK GF30® |
PSG2.0-35PK | 2 | 35 | 14 | 15.96 | PEEK GF30® |
PSG2.0-38PK | 2 | 38 | 14 | 19.25 | PEEK GF30® |
PSG2.0-40PK | 2 | 40 | 16 | 21.64 | PEEK GF30® |
PSG2.0-42PK | 2 | 42 | 16 | 24.2 | PEEK GF30® |
PSG2.0-45PK | 2 | 45 | 16 | 28.36 | PEEK GF30® |
PSG2.0-48PK | 2 | 48 | 16 | 32.9 | PEEK GF30® |
PSG2.0-50PK | 2 | 50 | 20 | 35.66 | PEEK GF30® |
PSG2.0-52PK | 2 | 52 | 20 | 37.35 | PEEK GF30® |
PSG2.0-55PK | 2 | 55 | 20 | 39.91 | PEEK GF30® |
PSG2.0-58PK | 2 | 58 | 20 | 42.5 | PEEK GF30® |
PSG2.0-60PK | 2 | 60 | 20 | 44.26 | PEEK GF30® |
PSG2.0-62PK | 2 | 62 | 20 | 45.92 | PEEK GF30® |
PSG2.0-65PK | 2 | 65 | 20 | 48.44 | PEEK GF30® |
PSG2.0-68PK | 2 | 68 | 20 | 50.97 | PEEK GF30® |
PSG2.0-70PK | 2 | 70 | 20 | 52.67 | PEEK GF30® |
PSG2.0-72PK | 2 | 72 | 20 | 54.38 | PEEK GF30® |
PSG2.5-18 | 2.5 | 18 | 14 | 22.94 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-19 | 2.5 | 19 | 14 | 24.22 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-20 | 2.5 | 20 | 14 | 32.23 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-21 | 2.5 | 21 | 14 | 33.85 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-22 | 2.5 | 22 | 14 | 35.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-23 | 2.5 | 23 | 16 | 37.07 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-24 | 2.5 | 24 | 16 | 38.68 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-25 | 2.5 | 25 | 16 | 40.29 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-26 | 2.5 | 26 | 16 | 49.3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-27 | 2.5 | 27 | 16 | 51.2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-28 | 2.5 | 28 | 16 | 53.09 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-29 | 2.5 | 29 | 18 | 54.99 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-30 | 2.5 | 30 | 18 | 62.57 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-32 | 2.5 | 32 | 18 | 66.74 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-35 | 2.5 | 35 | 18 | 73 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-38 | 2.5 | 38 | 20 | 79.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-40 | 2.5 | 40 | 20 | 106.6 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-42 | 2.5 | 42 | 20 | 111.93 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-45 | 2.5 | 45 | 20 | 119.93 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-48 | 2.5 | 48 | 20 | 127.92 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-50 | 2.5 | 50 | 20 | 158.01 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-52 | 2.5 | 52 | 20 | 164.33 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-55 | 2.5 | 55 | 20 | 173.81 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-58 | 2.5 | 58 | 20 | 183.29 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-18H | 2.5 | 18 | 14 | 84.12 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-19H | 2.5 | 19 | 14 | 88.8 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-20H | 2.5 | 20 | 14 | 118.19 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-21H | 2.5 | 21 | 14 | 124.1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-22H | 2.5 | 22 | 14 | 130.01 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-23H | 2.5 | 23 | 16 | 135.92 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-24H | 2.5 | 24 | 16 | 141.83 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-25H | 2.5 | 25 | 16 | 147.74 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-26H | 2.5 | 26 | 16 | 180.01 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-27H | 2.5 | 27 | 16 | 186.94 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-28H | 2.5 | 28 | 16 | 193.86 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-29H | 2.5 | 29 | 18 | 200.78 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-30H | 2.5 | 30 | 18 | 206.38 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-32H | 2.5 | 32 | 18 | 220.14 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-35H | 2.5 | 35 | 18 | 240.78 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-38H | 2.5 | 38 | 20 | 261.42 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-40H | 2.5 | 40 | 20 | 306.09 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-42H | 2.5 | 42 | 20 | 321.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-45H | 2.5 | 45 | 20 | 344.36 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-48H | 2.5 | 48 | 20 | 367.31 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-50H | 2.5 | 50 | 20 | 415.19 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-52H | 2.5 | 52 | 20 | 431.8 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-55H | 2.5 | 55 | 20 | 456.71 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-58H | 2.5 | 58 | 20 | 481.62 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-18S | 2.5 | 18 | 14 | 13.77 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-19S | 2.5 | 19 | 14 | 14.53 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-20S | 2.5 | 20 | 14 | 19.34 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-21S | 2.5 | 21 | 14 | 20.31 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-22S | 2.5 | 22 | 14 | 21.27 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-23S | 2.5 | 23 | 16 | 22.24 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-24S | 2.5 | 24 | 16 | 23.21 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-25S | 2.5 | 25 | 16 | 24.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-26S | 2.5 | 26 | 16 | 29.58 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-27S | 2.5 | 27 | 16 | 30.72 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-28S | 2.5 | 28 | 16 | 31.85 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-29S | 2.5 | 29 | 18 | 32.99 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-30S | 2.5 | 30 | 18 | 37.54 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-32S | 2.5 | 32 | 18 | 40.05 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-35S | 2.5 | 35 | 18 | 43.8 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-38S | 2.5 | 38 | 20 | 47.55 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-40S | 2.5 | 40 | 20 | 63.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-42S | 2.5 | 42 | 20 | 67.16 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-45S | 2.5 | 45 | 20 | 71.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-48S | 2.5 | 48 | 20 | 76.75 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-50S | 2.5 | 50 | 20 | 94.81 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-52S | 2.5 | 52 | 20 | 98.6 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-55S | 2.5 | 55 | 20 | 104.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-58S | 2.5 | 58 | 20 | 109.97 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-18CI | 2.5 | 18 | 14 | 10.32 | Cast Iron GG25 |
PSG2.5-19CI | 2.5 | 19 | 14 | 10.9 | Cast Iron GG25 |
PSG2.5-20CI | 2.5 | 20 | 14 | 14.51 | Cast Iron GG25 |
PSG2.5-21CI | 2.5 | 21 | 14 | 15.23 | Cast Iron GG25 |
PSG2.5-22CI | 2.5 | 22 | 14 | 15.96 | Cast Iron GG25 |
PSG2.5-23CI | 2.5 | 23 | 16 | 16.68 | Cast Iron GG25 |
PSG2.5-24CI | 2.5 | 24 | 16 | 17.41 | Cast Iron GG25 |
PSG2.5-25CI | 2.5 | 25 | 16 | 18.13 | Cast Iron GG25 |
PSG2.5-26CI | 2.5 | 26 | 16 | 22.18 | Cast Iron GG25 |
PSG2.5-27CI | 2.5 | 27 | 16 | 23.04 | Cast Iron GG25 |
PSG2.5-28CI | 2.5 | 28 | 16 | 23.89 | Cast Iron GG25 |
PSG2.5-29CI | 2.5 | 29 | 18 | 24.74 | Cast Iron GG25 |
PSG2.5-30CI | 2.5 | 30 | 18 | 28.16 | Cast Iron GG25 |
PSG2.5-32CI | 2.5 | 32 | 18 | 30.03 | Cast Iron GG25 |
PSG2.5-35CI | 2.5 | 35 | 18 | 32.85 | Cast Iron GG25 |
PSG2.5-38CI | 2.5 | 38 | 20 | 35.67 | Cast Iron GG25 |
PSG2.5-40CI | 2.5 | 40 | 20 | 46.53 | Cast Iron GG25 |
PSG2.5-42CI | 2.5 | 42 | 20 | 48.85 | Cast Iron GG25 |
PSG2.5-45CI | 2.5 | 45 | 20 | 52.34 | Cast Iron GG25 |
PSG2.5-48CI | 2.5 | 48 | 20 | 55.83 | Cast Iron GG25 |
PSG2.5-50CI | 2.5 | 50 | 20 | 63.11 | Cast Iron GG25 |
PSG2.5-52CI | 2.5 | 52 | 20 | 65.63 | Cast Iron GG25 |
PSG2.5-55CI | 2.5 | 55 | 20 | 69.42 | Cast Iron GG25 |
PSG2.5-58CI | 2.5 | 58 | 20 | 73.21 | Cast Iron GG25 |
PSG2.5-18SL | 2.5 | 18 | 14 | 10.71 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-19SL | 2.5 | 19 | 14 | 11.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-20SL | 2.5 | 20 | 14 | 15.04 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-21SL | 2.5 | 21 | 14 | 15.79 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-22SL | 2.5 | 22 | 14 | 16.55 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-23SL | 2.5 | 23 | 16 | 17.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-24SL | 2.5 | 24 | 16 | 18.05 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-25SL | 2.5 | 25 | 16 | 18.8 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-26SL | 2.5 | 26 | 16 | 23.01 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-27SL | 2.5 | 27 | 16 | 23.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-28SL | 2.5 | 28 | 16 | 24.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-29SL | 2.5 | 29 | 18 | 25.66 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-30SL | 2.5 | 30 | 18 | 29.2 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-32SL | 2.5 | 32 | 18 | 31.15 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-35SL | 2.5 | 35 | 18 | 34.07 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-38SL | 2.5 | 38 | 20 | 36.99 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-40SL | 2.5 | 40 | 20 | 49.75 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-42SL | 2.5 | 42 | 20 | 52.24 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-45SL | 2.5 | 45 | 20 | 55.97 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-48SL | 2.5 | 48 | 20 | 59.7 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-50SL | 2.5 | 50 | 20 | 73.74 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-52SL | 2.5 | 52 | 20 | 76.69 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-55SL | 2.5 | 55 | 20 | 81.11 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-58SL | 2.5 | 58 | 20 | 85.54 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-18DL | 2.5 | 18 | 14 | 4.78 | Delrin POM |
PSG2.5-19DL | 2.5 | 19 | 14 | 5.38 | Delrin POM |
PSG2.5-20DL | 2.5 | 20 | 14 | 6.02 | Delrin POM |
PSG2.5-21DL | 2.5 | 21 | 14 | 6.7 | Delrin POM |
PSG2.5-22DL | 2.5 | 22 | 14 | 7.43 | Delrin POM |
PSG2.5-23DL | 2.5 | 23 | 16 | 8.2 | Delrin POM |
PSG2.5-24DL | 2.5 | 24 | 16 | 9.01 | Delrin POM |
PSG2.5-25DL | 2.5 | 25 | 16 | 9.87 | Delrin POM |
PSG2.5-26DL | 2.5 | 26 | 16 | 10.77 | Delrin POM |
PSG2.5-27DL | 2.5 | 27 | 16 | 11.72 | Delrin POM |
PSG2.5-28DL | 2.5 | 28 | 16 | 12.72 | Delrin POM |
PSG2.5-29DL | 2.5 | 29 | 18 | 13.77 | Delrin POM |
PSG2.5-30DL | 2.5 | 30 | 18 | 14.86 | Delrin POM |
PSG2.5-32DL | 2.5 | 32 | 18 | 17.2 | Delrin POM |
PSG2.5-35DL | 2.5 | 35 | 18 | 21.08 | Delrin POM |
PSG2.5-38DL | 2.5 | 38 | 20 | 25.42 | Delrin POM |
PSG2.5-40DL | 2.5 | 40 | 20 | 28.58 | Delrin POM |
PSG2.5-42DL | 2.5 | 42 | 20 | 31.96 | Delrin POM |
PSG2.5-45DL | 2.5 | 45 | 20 | 37.45 | Delrin POM |
PSG2.5-48DL | 2.5 | 48 | 20 | 43.46 | Delrin POM |
PSG2.5-50DL | 2.5 | 50 | 20 | 47.75 | Delrin POM |
PSG2.5-52DL | 2.5 | 52 | 20 | 50.18 | Delrin POM |
PSG2.5-55DL | 2.5 | 55 | 20 | 53.62 | Delrin POM |
PSG2.5-58DL | 2.5 | 58 | 20 | 57.11 | Delrin POM |
PSG2.5-18PK | 2.5 | 18 | 14 | 5.4 | PEEK GF30® |
PSG2.5-19PK | 2.5 | 19 | 14 | 6.08 | PEEK GF30® |
PSG2.5-20PK | 2.5 | 20 | 14 | 6.81 | PEEK GF30® |
PSG2.5-21PK | 2.5 | 21 | 14 | 7.58 | PEEK GF30® |
PSG2.5-22PK | 2.5 | 22 | 14 | 8.4 | PEEK GF30® |
PSG2.5-23PK | 2.5 | 23 | 16 | 9.27 | PEEK GF30® |
PSG2.5-24PK | 2.5 | 24 | 16 | 10.19 | PEEK GF30® |
PSG2.5-25PK | 2.5 | 25 | 16 | 11.17 | PEEK GF30® |
PSG2.5-26PK | 2.5 | 26 | 16 | 12.19 | PEEK GF30® |
PSG2.5-27PK | 2.5 | 27 | 16 | 13.27 | PEEK GF30® |
PSG2.5-28PK | 2.5 | 28 | 16 | 14.39 | PEEK GF30® |
PSG2.5-29PK | 2.5 | 29 | 18 | 15.58 | PEEK GF30® |
PSG2.5-30PK | 2.5 | 30 | 18 | 16.81 | PEEK GF30® |
PSG2.5-32PK | 2.5 | 32 | 18 | 19.46 | PEEK GF30® |
PSG2.5-35PK | 2.5 | 35 | 18 | 23.85 | PEEK GF30® |
PSG2.5-38PK | 2.5 | 38 | 20 | 28.76 | PEEK GF30® |
PSG2.5-40PK | 2.5 | 40 | 20 | 32.34 | PEEK GF30® |
PSG2.5-42PK | 2.5 | 42 | 20 | 36.17 | PEEK GF30® |
PSG2.5-45PK | 2.5 | 45 | 20 | 42.38 | PEEK GF30® |
PSG2.5-48PK | 2.5 | 48 | 20 | 49.17 | PEEK GF30® |
PSG2.5-50PK | 2.5 | 50 | 20 | 54.02 | PEEK GF30® |
PSG2.5-52PK | 2.5 | 52 | 20 | 59.15 | PEEK GF30® |
PSG2.5-55PK | 2.5 | 55 | 20 | 67.35 | PEEK GF30® |
PSG2.5-58PK | 2.5 | 58 | 20 | 76.17 | PEEK GF30® |
PSG3.0-18 | 3 | 18 | 14 | 38.23 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-19 | 3 | 19 | 14 | 40.35 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-20 | 3 | 20 | 14 | 53.71 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-21 | 3 | 21 | 16 | 56.39 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-22 | 3 | 22 | 16 | 59.08 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-23 | 3 | 23 | 16 | 61.76 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-24 | 3 | 24 | 16 | 64.45 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-25 | 3 | 25 | 16 | 67.13 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-26 | 3 | 26 | 16 | 82.14 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-27 | 3 | 27 | 16 | 85.3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-28 | 3 | 28 | 16 | 88.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-29 | 3 | 29 | 18 | 91.62 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-30 | 3 | 30 | 18 | 104.25 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-32 | 3 | 32 | 18 | 111.2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-35 | 3 | 35 | 18 | 121.63 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-38 | 3 | 38 | 18 | 132.05 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-40 | 3 | 40 | 18 | 177.62 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-42 | 3 | 42 | 18 | 186.5 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-45 | 3 | 45 | 18 | 199.82 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-48 | 3 | 48 | 18 | 213.14 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-18H | 3 | 18 | 14 | 140.16 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-19H | 3 | 19 | 14 | 147.95 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-20H | 3 | 20 | 14 | 196.92 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-21H | 3 | 21 | 16 | 206.77 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-22H | 3 | 22 | 16 | 216.61 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-23H | 3 | 23 | 16 | 226.46 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-24H | 3 | 24 | 16 | 236.31 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-25H | 3 | 25 | 16 | 246.15 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-26H | 3 | 26 | 16 | 301.17 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-27H | 3 | 27 | 16 | 312.76 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-28H | 3 | 28 | 16 | 324.34 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-29H | 3 | 29 | 18 | 335.93 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-30H | 3 | 30 | 18 | 356.63 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-32H | 3 | 32 | 18 | 380.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-35H | 3 | 35 | 18 | 416.07 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-38H | 3 | 38 | 18 | 451.73 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-40H | 3 | 40 | 18 | 528.93 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-42H | 3 | 42 | 18 | 555.38 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-45H | 3 | 45 | 18 | 595.05 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-48H | 3 | 48 | 18 | 634.72 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-18S | 3 | 18 | 14 | 22.94 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-19S | 3 | 19 | 14 | 24.21 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-20S | 3 | 20 | 14 | 32.22 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-21S | 3 | 21 | 16 | 33.83 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-22S | 3 | 22 | 16 | 35.45 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-23S | 3 | 23 | 16 | 37.06 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-24S | 3 | 24 | 16 | 38.67 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-25S | 3 | 25 | 16 | 40.28 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-26S | 3 | 26 | 16 | 49.28 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-27S | 3 | 27 | 16 | 51.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-28S | 3 | 28 | 16 | 53.07 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-29S | 3 | 29 | 18 | 54.97 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-30S | 3 | 30 | 18 | 62.55 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-32S | 3 | 32 | 18 | 66.72 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-35S | 3 | 35 | 18 | 72.98 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-38S | 3 | 38 | 18 | 79.23 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-40S | 3 | 40 | 18 | 106.57 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-42S | 3 | 42 | 18 | 111.9 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-45S | 3 | 45 | 18 | 119.89 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-48S | 3 | 48 | 18 | 127.88 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-18CI | 3 | 18 | 14 | 17.2 | Cast Iron GG25 |
PSG3.0-19CI | 3 | 19 | 14 | 18.16 | Cast Iron GG25 |
PSG3.0-20CI | 3 | 20 | 14 | 24.17 | Cast Iron GG25 |
PSG3.0-21CI | 3 | 21 | 16 | 25.38 | Cast Iron GG25 |
PSG3.0-22CI | 3 | 22 | 16 | 26.58 | Cast Iron GG25 |
PSG3.0-23CI | 3 | 23 | 16 | 27.79 | Cast Iron GG25 |
PSG3.0-24CI | 3 | 24 | 16 | 29 | Cast Iron GG25 |
PSG3.0-25CI | 3 | 25 | 16 | 30.21 | Cast Iron GG25 |
PSG3.0-26CI | 3 | 26 | 16 | 36.96 | Cast Iron GG25 |
PSG3.0-27CI | 3 | 27 | 16 | 38.38 | Cast Iron GG25 |
PSG3.0-28CI | 3 | 28 | 16 | 39.81 | Cast Iron GG25 |
PSG3.0-29CI | 3 | 29 | 18 | 41.23 | Cast Iron GG25 |
PSG3.0-30CI | 3 | 30 | 18 | 46.91 | Cast Iron GG25 |
PSG3.0-32CI | 3 | 32 | 18 | 50.04 | Cast Iron GG25 |
PSG3.0-35CI | 3 | 35 | 18 | 54.73 | Cast Iron GG25 |
PSG3.0-38CI | 3 | 38 | 18 | 59.42 | Cast Iron GG25 |
PSG3.0-40CI | 3 | 40 | 18 | 79.93 | Cast Iron GG25 |
PSG3.0-42CI | 3 | 42 | 18 | 83.92 | Cast Iron GG25 |
PSG3.0-45CI | 3 | 45 | 18 | 89.92 | Cast Iron GG25 |
PSG3.0-48CI | 3 | 48 | 18 | 95.91 | Cast Iron GG25 |
PSG3.0-18SL | 3 | 18 | 14 | 17.84 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-19SL | 3 | 19 | 14 | 18.83 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-20SL | 3 | 20 | 14 | 25.06 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-21SL | 3 | 21 | 16 | 26.32 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-22SL | 3 | 22 | 16 | 27.57 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-23SL | 3 | 23 | 16 | 28.82 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-24SL | 3 | 24 | 16 | 30.08 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-25SL | 3 | 25 | 16 | N/A | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-26SL | 3 | 26 | 16 | 38.33 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-27SL | 3 | 27 | 16 | 39.81 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-28SL | 3 | 28 | 16 | 41.28 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-29SL | 3 | 29 | 18 | 42.75 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-30SL | 3 | 30 | 18 | 48.65 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-32SL | 3 | 32 | 18 | 51.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-35SL | 3 | 35 | 18 | 56.76 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-38SL | 3 | 38 | 18 | 61.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-40SL | 3 | 40 | 18 | 82.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-42SL | 3 | 42 | 18 | 87.03 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-45SL | 3 | 45 | 18 | 93.25 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-48SL | 3 | 48 | 18 | 99.46 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-18DL | 3 | 18 | 14 | 6.63 | Delrin POM |
PSG3.0-19DL | 3 | 19 | 14 | 7.46 | Delrin POM |
PSG3.0-20DL | 3 | 20 | 14 | 8.35 | Delrin POM |
PSG3.0-21DL | 3 | 21 | 16 | 9.3 | Delrin POM |
PSG3.0-22DL | 3 | 22 | 16 | 10.31 | Delrin POM |
PSG3.0-23DL | 3 | 23 | 16 | 11.38 | Delrin POM |
PSG3.0-24DL | 3 | 24 | 16 | 12.51 | Delrin POM |
PSG3.0-25DL | 3 | 25 | 16 | 13.7 | Delrin POM |
PSG3.0-26DL | 3 | 26 | 16 | 14.96 | Delrin POM |
PSG3.0-27DL | 3 | 27 | 16 | 16.28 | Delrin POM |
PSG3.0-28DL | 3 | 28 | 16 | 17.66 | Delrin POM |
PSG3.0-29DL | 3 | 29 | 18 | 19.12 | Delrin POM |
PSG3.0-30DL | 3 | 30 | 18 | 20.63 | Delrin POM |
PSG3.0-32DL | 3 | 32 | 18 | 23.88 | Delrin POM |
PSG3.0-35DL | 3 | 35 | 18 | 29.26 | Delrin POM |
PSG3.0-38DL | 3 | 38 | 18 | 35.3 | Delrin POM |
PSG3.0-40DL | 3 | 40 | 18 | 39.69 | Delrin POM |
PSG3.0-42DL | 3 | 42 | 18 | 44.38 | Delrin POM |
PSG3.0-45DL | 3 | 45 | 18 | 52 | Delrin POM |
PSG3.0-48DL | 3 | 48 | 18 | 60.33 | Delrin POM |
PSG3.0-18PK | 3 | 18 | 14 | 7.5 | PEEK GF30® |
PSG3.0-19PK | 3 | 19 | 14 | 8.45 | PEEK GF30® |
PSG3.0-20PK | 3 | 20 | 14 | 9.45 | PEEK GF30® |
PSG3.0-21PK | 3 | 21 | 16 | 10.53 | PEEK GF30® |
PSG3.0-22PK | 3 | 22 | 16 | 11.67 | PEEK GF30® |
PSG3.0-23PK | 3 | 23 | 16 | 12.88 | PEEK GF30® |
PSG3.0-24PK | 3 | 24 | 16 | 14.15 | PEEK GF30® |
PSG3.0-25PK | 3 | 25 | 16 | 15.5 | PEEK GF30® |
PSG3.0-26PK | 3 | 26 | 16 | 16.92 | PEEK GF30® |
PSG3.0-27PK | 3 | 27 | 16 | 18.42 | PEEK GF30® |
PSG3.0-28PK | 3 | 28 | 16 | 19.99 | PEEK GF30® |
PSG3.0-29PK | 3 | 29 | 18 | 21.63 | PEEK GF30® |
PSG3.0-30PK | 3 | 30 | 18 | 23.35 | PEEK GF30® |
PSG3.0-32PK | 3 | 32 | 18 | 27.01 | PEEK GF30® |
PSG3.0-35PK | 3 | 35 | 18 | 33.11 | PEEK GF30® |
PSG3.0-38PK | 3 | 38 | 18 | 39.93 | PEEK GF30® |
PSG3.0-40PK | 3 | 40 | 18 | 44.9 | PEEK GF30® |
PSG3.0-42PK | 3 | 42 | 18 | 50.21 | PEEK GF30® |
PSG3.0-45PK | 3 | 45 | 18 | 58.84 | PEEK GF30® |
PSG3.0-48PK | 3 | 48 | 18 | 68.26 | PEEK GF30® |
PSG1.25-18 | 1.25 | 18 | 6 | 3.29 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-19 | 1.25 | 19 | 6 | 3.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-20 | 1.25 | 20 | 6 | 4.63 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-21 | 1.25 | 21 | 8 | 4.86 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-22 | 1.25 | 22 | 8 | 5.09 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-23 | 1.25 | 23 | 8 | 5.32 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-24 | 1.25 | 24 | 8 | 5.55 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-25 | 1.25 | 25 | 8 | 5.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-26 | 1.25 | 26 | 8 | 7.08 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-27 | 1.25 | 27 | 8 | 7.35 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-28 | 1.25 | 28 | 8 | 7.62 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-29 | 1.25 | 29 | 8 | 7.9 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-30 | 1.25 | 30 | 8 | 8.98 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-32 | 1.25 | 32 | 8 | 9.58 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-35 | 1.25 | 35 | 10 | 10.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-38 | 1.25 | 38 | 10 | 11.38 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-40 | 1.25 | 40 | 10 | 15.31 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-42 | 1.25 | 42 | 10 | 16.07 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-45 | 1.25 | 45 | 10 | 17.22 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-48 | 1.25 | 48 | 10 | 18.37 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-50 | 1.25 | 50 | 10 | 22.69 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-52 | 1.25 | 52 | 10 | 23.6 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-55 | 1.25 | 55 | 10 | 24.96 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-58 | 1.25 | 58 | 10 | 26.32 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-60 | 1.25 | 60 | 10 | 32.4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-62 | 1.25 | 62 | 10 | 33.48 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-65 | 1.25 | 65 | 10 | 35.1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-68 | 1.25 | 68 | 10 | 36.72 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-70 | 1.25 | 70 | 10 | 37.8 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-72 | 1.25 | 72 | 10 | 38.88 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-75 | 1.25 | 75 | 10 | 40.5 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-78 | 1.25 | 78 | 10 | 42.12 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-80 | 1.25 | 80 | 10 | 55.3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-82 | 1.25 | 82 | 10 | 56.68 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-85 | 1.25 | 85 | 10 | 58.75 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-90 | 1.25 | 90 | 10 | 62.21 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-95 | 1.25 | 95 | 10 | 65.67 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-100 | 1.25 | 100 | 14 | 74.2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-110 | 1.25 | 110 | 14 | 77.92 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-120 | 1.25 | 120 | 14 | 81.63 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG1.25-18H | 1.25 | 18 | 6 | 12.08 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-19H | 1.25 | 19 | 6 | 12.75 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-20H | 1.25 | 20 | 6 | 16.97 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-21H | 1.25 | 21 | 8 | 17.82 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-22H | 1.25 | 22 | 8 | 18.67 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-23H | 1.25 | 23 | 8 | 19.52 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-24H | 1.25 | 24 | 8 | 20.36 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-25H | 1.25 | 25 | 8 | 21.21 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-26H | 1.25 | 26 | 8 | 22.5 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-27H | 1.25 | 27 | 8 | 23.37 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-28H | 1.25 | 28 | 8 | 24.23 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-29H | 1.25 | 29 | 8 | 25.1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-30H | 1.25 | 30 | 8 | 25.8 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-32H | 1.25 | 32 | 8 | 27.52 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-35H | 1.25 | 35 | 10 | 30.1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-38H | 1.25 | 38 | 10 | 32.68 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-40H | 1.25 | 40 | 10 | 38.26 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-42H | 1.25 | 42 | 10 | 40.17 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-45H | 1.25 | 45 | 10 | 43.04 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-48H | 1.25 | 48 | 10 | 45.91 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-50H | 1.25 | 50 | 10 | 51.9 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-52H | 1.25 | 52 | 10 | 53.98 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-55H | 1.25 | 55 | 10 | 57.09 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-58H | 1.25 | 58 | 10 | 60.2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-60H | 1.25 | 60 | 10 | 64.85 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-62H | 1.25 | 62 | 10 | 67.01 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-65H | 1.25 | 65 | 10 | 70.25 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-68H | 1.25 | 68 | 10 | 73.49 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-70H | 1.25 | 70 | 10 | 75.65 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-72H | 1.25 | 72 | 10 | 77.82 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-75H | 1.25 | 75 | 10 | 81.06 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-78H | 1.25 | 78 | 10 | 84.3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-80H | 1.25 | 80 | 10 | 90.66 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-82H | 1.25 | 82 | 10 | 92.92 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-85H | 1.25 | 85 | 10 | 96.32 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-90H | 1.25 | 90 | 10 | 101.99 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-95H | 1.25 | 95 | 10 | 107.66 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-100H | 1.25 | 100 | 14 | 115.95 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-110H | 1.25 | 110 | 14 | 121.74 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-120H | 1.25 | 120 | 14 | 127.54 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG1.25-18S | 1.25 | 18 | 6 | 1.98 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-19S | 1.25 | 19 | 6 | 2.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-20S | 1.25 | 20 | 6 | 2.78 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-21S | 1.25 | 21 | 8 | 2.92 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-22S | 1.25 | 22 | 8 | 3.05 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-23S | 1.25 | 23 | 8 | 3.19 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-24S | 1.25 | 24 | 8 | 3.33 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-25S | 1.25 | 25 | 8 | 3.47 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-26S | 1.25 | 26 | 8 | 4.25 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-27S | 1.25 | 27 | 8 | 4.41 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-28S | 1.25 | 28 | 8 | 4.57 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-29S | 1.25 | 29 | 8 | 4.74 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-30S | 1.25 | 30 | 8 | 5.39 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-32S | 1.25 | 32 | 8 | 5.75 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-35S | 1.25 | 35 | 10 | 6.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-38S | 1.25 | 38 | 10 | 6.83 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-40S | 1.25 | 40 | 10 | 9.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-42S | 1.25 | 42 | 10 | 9.64 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-45S | 1.25 | 45 | 10 | 10.33 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-48S | 1.25 | 48 | 10 | 11.02 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-50S | 1.25 | 50 | 10 | 13.61 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-52S | 1.25 | 52 | 10 | 14.16 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-55S | 1.25 | 55 | 10 | 14.97 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-58S | 1.25 | 58 | 10 | 15.79 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-60S | 1.25 | 60 | 10 | 19.44 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-62S | 1.25 | 62 | 10 | 20.09 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-65S | 1.25 | 65 | 10 | 21.06 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-68S | 1.25 | 68 | 10 | 22.03 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-70S | 1.25 | 70 | 10 | 22.68 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-72S | 1.25 | 72 | 10 | 23.33 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-75S | 1.25 | 75 | 10 | 24.3 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-78S | 1.25 | 78 | 10 | 25.27 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-80S | 1.25 | 80 | 10 | 33.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-82S | 1.25 | 82 | 10 | 34.01 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-85S | 1.25 | 85 | 10 | 35.25 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-90S | 1.25 | 90 | 10 | 37.33 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-95S | 1.25 | 95 | 10 | 39.4 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-100S | 1.25 | 100 | 14 | 50 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-110S | 1.25 | 110 | 14 | 52.51 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-120S | 1.25 | 120 | 14 | 55.01 | AISI 303 (EN 1.4305) Stainless Steel |
PSG1.25-18TI | 1.25 | 18 | 6 | 0.99 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-19TI | 1.25 | 19 | 6 | 1.04 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-20TI | 1.25 | 20 | 6 | 1.39 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-21TI | 1.25 | 21 | 8 | 1.46 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-22TI | 1.25 | 22 | 8 | 1.53 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-23TI | 1.25 | 23 | 8 | 1.6 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-24TI | 1.25 | 24 | 8 | 1.67 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-25TI | 1.25 | 25 | 8 | 1.74 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-26TI | 1.25 | 26 | 8 | 2.12 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-27TI | 1.25 | 27 | 8 | 2.21 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-28TI | 1.25 | 28 | 8 | 2.29 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-29TI | 1.25 | 29 | 8 | 2.37 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-30TI | 1.25 | 30 | 8 | 2.7 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-32TI | 1.25 | 32 | 8 | 2.88 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-35TI | 1.25 | 35 | 10 | 3.14 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-38TI | 1.25 | 38 | 10 | 3.41 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-40TI | 1.25 | 40 | 10 | 4.59 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-42TI | 1.25 | 42 | 10 | 4.82 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-45TI | 1.25 | 45 | 10 | 5.17 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-48TI | 1.25 | 48 | 10 | 5.51 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-50TI | 1.25 | 50 | 10 | 6.81 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-52TI | 1.25 | 52 | 10 | 7.08 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-55TI | 1.25 | 55 | 10 | 7.49 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-58TI | 1.25 | 58 | 10 | 7.9 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-60TI | 1.25 | 60 | 10 | 9.72 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-62TI | 1.25 | 62 | 10 | 10.04 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-65TI | 1.25 | 65 | 10 | 10.53 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-68TI | 1.25 | 68 | 10 | 11.02 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-70TI | 1.25 | 70 | 10 | 11.34 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-72TI | 1.25 | 72 | 10 | 11.66 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-75TI | 1.25 | 75 | 10 | 12.15 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-78TI | 1.25 | 78 | 10 | 12.64 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-80TI | 1.25 | 80 | 10 | 16.59 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-82TI | 1.25 | 82 | 10 | 17 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-85TI | 1.25 | 85 | 10 | 17.63 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-90TI | 1.25 | 90 | 10 | 18.66 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-95TI | 1.25 | 95 | 10 | 19.7 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-100TI | 1.25 | 100 | 14 | 22.26 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-110TI | 1.25 | 110 | 14 | 23.37 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-120TI | 1.25 | 120 | 14 | 24.49 | Ti-6AI-4V Grade 5 (UNS R56400) Titanium |
PSG1.25-18SL | 1.25 | 18 | 6 | 1.54 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-19SL | 1.25 | 19 | 6 | 1.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-20SL | 1.25 | 20 | 6 | 2.16 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-21SL | 1.25 | 21 | 8 | 2.27 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-22SL | 1.25 | 22 | 8 | 2.38 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-23SL | 1.25 | 23 | 8 | 2.48 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-24SL | 1.25 | 24 | 8 | 2.59 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-25SL | 1.25 | 25 | 8 | 2.7 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-26SL | 1.25 | 26 | 8 | 3.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-27SL | 1.25 | 27 | 8 | 3.43 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-28SL | 1.25 | 28 | 8 | 3.56 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-29SL | 1.25 | 29 | 8 | 3.68 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-30SL | 1.25 | 30 | 8 | 4.19 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-32SL | 1.25 | 32 | 8 | 4.47 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-35SL | 1.25 | 35 | 10 | 4.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-38SL | 1.25 | 38 | 10 | 5.31 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-40SL | 1.25 | 40 | 10 | 7.14 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-42SL | 1.25 | 42 | 10 | 7.5 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-45SL | 1.25 | 45 | 10 | 8.04 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-48SL | 1.25 | 48 | 10 | 8.57 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-50SL | 1.25 | 50 | 10 | 10.59 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-52SL | 1.25 | 52 | 10 | 11.01 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-55SL | 1.25 | 55 | 10 | 11.65 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-58SL | 1.25 | 58 | 10 | 12.28 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-60SL | 1.25 | 60 | 10 | 15.12 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-62SL | 1.25 | 62 | 10 | 15.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-65SL | 1.25 | 65 | 10 | 16.38 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-68SL | 1.25 | 68 | 10 | 17.14 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-70SL | 1.25 | 70 | 10 | 17.64 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-72SL | 1.25 | 72 | 10 | 18.14 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-75SL | 1.25 | 75 | 10 | 18.9 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-78SL | 1.25 | 78 | 10 | 19.66 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-80SL | 1.25 | 80 | 10 | 25.81 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-82SL | 1.25 | 82 | 10 | 26.45 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-85SL | 1.25 | 85 | 10 | 27.42 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-90SL | 1.25 | 90 | 10 | 29.03 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-95SL | 1.25 | 95 | 10 | 30.64 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-100SL | 1.25 | 100 | 14 | 38.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-110SL | 1.25 | 110 | 14 | 40.84 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-120SL | 1.25 | 120 | 14 | 42.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG1.25-18DL | 1.25 | 18 | 6 | 1.37 | Delrin POM |
PSG1.25-19DL | 1.25 | 19 | 6 | 1.54 | Delrin POM |
PSG1.25-20DL | 1.25 | 20 | 6 | 1.73 | Delrin POM |
PSG1.25-21DL | 1.25 | 21 | 8 | 1.92 | Delrin POM |
PSG1.25-22DL | 1.25 | 22 | 8 | 2.13 | Delrin POM |
PSG1.25-23DL | 1.25 | 23 | 8 | 2.35 | Delrin POM |
PSG1.25-24DL | 1.25 | 24 | 8 | 2.59 | Delrin POM |
PSG1.25-25DL | 1.25 | 25 | 8 | 2.83 | Delrin POM |
PSG1.25-26DL | 1.25 | 26 | 8 | 3.09 | Delrin POM |
PSG1.25-27DL | 1.25 | 27 | 8 | 3.37 | Delrin POM |
PSG1.25-28DL | 1.25 | 28 | 8 | 3.65 | Delrin POM |
PSG1.25-29DL | 1.25 | 29 | 8 | 3.87 | Delrin POM |
PSG1.25-30DL | 1.25 | 30 | 8 | 4.05 | Delrin POM |
PSG1.25-32DL | 1.25 | 32 | 8 | 4.39 | Delrin POM |
PSG1.25-35DL | 1.25 | 35 | 10 | 4.91 | Delrin POM |
PSG1.25-38DL | 1.25 | 38 | 10 | 5.45 | Delrin POM |
PSG1.25-40DL | 1.25 | 40 | 10 | 5.81 | Delrin POM |
PSG1.25-42DL | 1.25 | 42 | 10 | 6.17 | Delrin POM |
PSG1.25-45DL | 1.25 | 45 | 10 | 6.71 | Delrin POM |
PSG1.25-48DL | 1.25 | 48 | 10 | 7.26 | Delrin POM |
PSG1.25-50DL | 1.25 | 50 | 10 | 7.63 | Delrin POM |
PSG1.25-52DL | 1.25 | 52 | 10 | 7.99 | Delrin POM |
PSG1.25-55DL | 1.25 | 55 | 10 | 8.54 | Delrin POM |
PSG1.25-58DL | 1.25 | 58 | 10 | 9.09 | Delrin POM |
PSG1.25-60DL | 1.25 | 60 | 10 | 9.47 | Delrin POM |
PSG1.25-62DL | 1.25 | 62 | 10 | 9.82 | Delrin POM |
PSG1.25-65DL | 1.25 | 65 | 10 | 10.36 | Delrin POM |
PSG1.25-68DL | 1.25 | 68 | 10 | 10.9 | Delrin POM |
PSG1.25-70DL | 1.25 | 70 | 10 | 11.27 | Delrin POM |
PSG1.25-72DL | 1.25 | 72 | 10 | 11.63 | Delrin POM |
PSG1.25-75DL | 1.25 | 75 | 10 | 12.18 | Delrin POM |
PSG1.25-78DL | 1.25 | 78 | 10 | 12.74 | Delrin POM |
PSG1.25-80DL | 1.25 | 80 | 10 | 13.11 | Delrin POM |
PSG1.25-82DL | 1.25 | 82 | 10 | 13.49 | Delrin POM |
PSG1.25-85DL | 1.25 | 85 | 10 | 14.04 | Delrin POM |
PSG1.25-90DL | 1.25 | 90 | 10 | 14.96 | Delrin POM |
PSG1.25-95DL | 1.25 | 95 | 10 | 15.88 | Delrin POM |
PSG1.25-100DL | 1.25 | 100 | 14 | 16.79 | Delrin POM |
PSG1.25-110DL | 1.25 | 110 | 14 | 18.61 | Delrin POM |
PSG1.25-120DL | 1.25 | 120 | 14 | 20.43 | Delrin POM |
PSG1.25-18PK | 1.25 | 18 | 6 | 1.55 | PEEK GF30® |
PSG1.25-19PK | 1.25 | 19 | 6 | 1.75 | PEEK GF30® |
PSG1.25-20PK | 1.25 | 20 | 6 | 1.96 | PEEK GF30® |
PSG1.25-21PK | 1.25 | 21 | 8 | 2.18 | PEEK GF30® |
PSG1.25-22PK | 1.25 | 22 | 8 | 2.41 | PEEK GF30® |
PSG1.25-23PK | 1.25 | 23 | 8 | 2.66 | PEEK GF30® |
PSG1.25-24PK | 1.25 | 24 | 8 | 2.93 | PEEK GF30® |
PSG1.25-25PK | 1.25 | 25 | 8 | 3.21 | PEEK GF30® |
PSG1.25-26PK | 1.25 | 26 | 8 | 3.5 | PEEK GF30® |
PSG1.25-27PK | 1.25 | 27 | 8 | 3.81 | PEEK GF30® |
PSG1.25-28PK | 1.25 | 28 | 8 | 4.13 | PEEK GF30® |
PSG1.25-29PK | 1.25 | 29 | 8 | 4.47 | PEEK GF30® |
PSG1.25-30PK | 1.25 | 30 | 8 | 4.83 | PEEK GF30® |
PSG1.25-32PK | 1.25 | 32 | 8 | 5.59 | PEEK GF30® |
PSG1.25-35PK | 1.25 | 35 | 10 | 6.7 | PEEK GF30® |
PSG1.25-38PK | 1.25 | 38 | 10 | 7.43 | PEEK GF30® |
PSG1.25-40PK | 1.25 | 40 | 10 | 7.93 | PEEK GF30® |
PSG1.25-42PK | 1.25 | 42 | 10 | 8.41 | PEEK GF30® |
PSG1.25-45PK | 1.25 | 45 | 10 | 9.14 | PEEK GF30® |
PSG1.25-48PK | 1.25 | 48 | 10 | 9.89 | PEEK GF30® |
PSG1.25-50PK | 1.25 | 50 | 10 | 10.4 | PEEK GF30® |
PSG1.25-52PK | 1.25 | 52 | 10 | 10.89 | PEEK GF30® |
PSG1.25-55PK | 1.25 | 55 | 10 | 11.64 | PEEK GF30® |
PSG1.25-58PK | 1.25 | 58 | 10 | 12.4 | PEEK GF30® |
PSG1.25-60PK | 1.25 | 60 | 10 | 12.91 | PEEK GF30® |
PSG1.25-62PK | 1.25 | 62 | 10 | 13.39 | PEEK GF30® |
PSG1.25-65PK | 1.25 | 65 | 10 | 14.13 | PEEK GF30® |
PSG1.25-68PK | 1.25 | 68 | 10 | 14.87 | PEEK GF30® |
PSG1.25-70PK | 1.25 | 70 | 10 | 15.36 | PEEK GF30® |
PSG1.25-72PK | 1.25 | 72 | 10 | 15.86 | PEEK GF30® |
PSG1.25-75PK | 1.25 | 75 | 10 | 16.61 | PEEK GF30® |
PSG1.25-78PK | 1.25 | 78 | 10 | 17.37 | PEEK GF30® |
PSG1.25-80PK | 1.25 | 80 | 10 | 17.88 | PEEK GF30® |
PSG1.25-82PK | 1.25 | 82 | 10 | 18.4 | PEEK GF30® |
PSG1.25-85PK | 1.25 | 85 | 10 | 19.14 | PEEK GF30® |
PSG1.25-90PK | 1.25 | 90 | 10 | 20.4 | PEEK GF30® |
PSG1.25-95PK | 1.25 | 95 | 10 | 21.66 | PEEK GF30® |
PSG1.25-100PK | 1.25 | 100 | 14 | 22.89 | PEEK GF30® |
PSG1.25-110PK | 1.25 | 110 | 14 | 25.37 | PEEK GF30® |
PSG1.25-120PK | 1.25 | 120 | 14 | 27.85 | PEEK GF30® |
PSG2.0-75 | 2 | 75 | 25 | 151 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-78 | 2 | 78 | 25 | 157.04 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-80 | 2 | 80 | 25 | 206.18 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-82 | 2 | 82 | 25 | 211.34 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-85 | 2 | 85 | 25 | 219.07 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-88 | 2 | 88 | 25 | 226.8 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-90 | 2 | 90 | 25 | 231.95 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-92 | 2 | 92 | 25 | 237.11 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-95 | 2 | 95 | 25 | 244.84 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-98 | 2 | 98 | 25 | 252.57 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.0-75H | 2 | 75 | 25 | 332.01 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-78H | 2 | 78 | 25 | 345.29 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-80H | 2 | 80 | 25 | 371.34 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-82H | 2 | 82 | 25 | 380.62 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-85H | 2 | 85 | 25 | 394.54 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-88H | 2 | 88 | 25 | 408.47 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-90H | 2 | 90 | 25 | 417.75 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-92H | 2 | 92 | 25 | 427.04 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-95H | 2 | 95 | 25 | 440.96 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-98H | 2 | 98 | 25 | 454.89 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.0-75S | 2 | 75 | 25 | 90.6 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-78S | 2 | 78 | 25 | 94.22 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-80S | 2 | 80 | 25 | 123.71 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-82S | 2 | 82 | 25 | 126.8 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-85S | 2 | 85 | 25 | 131.44 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-88S | 2 | 88 | 25 | 136.08 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-90S | 2 | 90 | 25 | 139.17 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-92S | 2 | 92 | 25 | 142.27 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-95S | 2 | 95 | 25 | 146.9 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-98S | 2 | 98 | 25 | 151.54 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.0-75SL | 2 | 75 | 25 | 70.47 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-78SL | 2 | 78 | 25 | 73.28 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-80SL | 2 | 80 | 25 | 96.22 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-82SL | 2 | 82 | 25 | 98.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-85SL | 2 | 85 | 25 | 102.23 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-88SL | 2 | 80 | 25 | 105.84 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-90SL | 2 | 90 | 25 | 108.25 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-92SL | 2 | 92 | 25 | 110.65 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-95SL | 2 | 95 | 25 | 114.26 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.0-98SL | 2 | 98 | 25 | 117.87 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-60 | 2.5 | 60 | 20 | 225.64 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-62 | 2.5 | 62 | 20 | 233.16 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-65 | 2.5 | 65 | 20 | 244.44 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-68 | 2.5 | 68 | 20 | 255.72 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-70 | 2.5 | 70 | 25 | 263.24 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-72 | 2.5 | 72 | 25 | 270.77 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-75 | 2.5 | 75 | 25 | 282.05 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-78 | 2.5 | 78 | 25 | 293.33 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-80 | 2.5 | 80 | 25 | 385.12 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-82 | 2.5 | 82 | 25 | 394.75 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-85 | 2.5 | 85 | 25 | 409.19 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-88 | 2.5 | 88 | 25 | 423.63 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-90 | 2.5 | 90 | 25 | 433.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-92 | 2.5 | 92 | 25 | 442.89 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-95 | 2.5 | 95 | 25 | 457.33 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-98 | 2.5 | 98 | 25 | 471.78 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG2.5-60H | 2.5 | 60 | 20 | 518.77 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-62H | 2.5 | 62 | 20 | 536.06 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-65H | 2.5 | 65 | 20 | 562 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-68H | 2.5 | 68 | 20 | 587.94 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-70H | 2.5 | 70 | 25 | 605.23 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-72H | 2.5 | 72 | 25 | 622.53 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-75H | 2.5 | 75 | 25 | 648.46 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-78H | 2.5 | 78 | 25 | 674.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-80H | 2.5 | 80 | 25 | 725.26 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-82H | 2.5 | 82 | 25 | 743.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-85H | 2.5 | 85 | 25 | 770.59 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-88H | 2.5 | 88 | 3 | 797.79 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-90H | 2.5 | 90 | 25 | 815.92 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-92H | 2.5 | 92 | 25 | 834.05 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-95H | 2.5 | 95 | 25 | 861.25 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-98H | 2.5 | 98 | 25 | 888.45 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG2.5-60S | 2.5 | 60 | 20 | 135.38 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-62S | 2.5 | 62 | 20 | 139.9 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-65S | 2.5 | 65 | 20 | 146.66 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-68S | 2.5 | 68 | 20 | 153.43 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-70S | 2.5 | 70 | 25 | 157.95 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-72S | 2.5 | 72 | 25 | 162.46 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-75S | 2.5 | 75 | 25 | 169.23 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-78S | 2.5 | 78 | 25 | 176 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-80S | 2.5 | 80 | 25 | 231.07 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-82S | 2.5 | 82 | 25 | 236.85 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-85S | 2.5 | 85 | 25 | 245.52 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-88S | 2.5 | 88 | 25 | 254.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-90S | 2.5 | 90 | 25 | 259.96 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-92S | 2.5 | 92 | 25 | 265.73 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-95S | 2.5 | 95 | 25 | 274.4 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-98S | 2.5 | 98 | 25 | 283.07 | AISI 303 (EN 1.4305) Stainless Steel |
PSG2.5-60SL | 2.5 | 60 | 20 | 105.3 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-62SL | 2.5 | 62 | 20 | 108.81 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-65SL | 2.5 | 65 | 20 | 114.07 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-68SL | 2.5 | 68 | 20 | 119.34 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-70SL | 2.5 | 70 | 25 | 122.85 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-72SL | 2.5 | 72 | 25 | 126.36 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-75SL | 2.5 | 75 | 25 | 131.62 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-78SL | 2.5 | 78 | 25 | 136.89 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-80SL | 2.5 | 80 | 25 | 179.72 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-82SL | 2.5 | 82 | 25 | 184.22 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-85SL | 2.5 | 85 | 25 | 190.96 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-88SL | 2.5 | 88 | 25 | 197.7 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-90SL | 2.5 | 90 | 25 | 202.19 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-92SL | 2.5 | 92 | 25 | 206.68 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-95SL | 2.5 | 95 | 25 | 213.42 | AISI 316 (EN 1.4401) Stainless Steel |
PSG2.5-98SL | 2.5 | 98 | 25 | 220.16 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-50 | 3 | 50 | 20 | 269.49 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-52 | 3 | 52 | 20 | 289.26 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-55 | 3 | 55 | 20 | 320.08 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-58 | 3 | 58 | 20 | 352.29 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-60 | 3 | 60 | 20 | 374.52 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-62 | 3 | 62 | 25 | 397.36 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-65 | 3 | 65 | 25 | 432.74 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-68 | 3 | 68 | 25 | 469.46 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-70 | 3 | 70 | 25 | 494.68 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-72 | 3 | 72 | 25 | 520.49 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-75 | 3 | 75 | 25 | 560.3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-78 | 3 | 78 | 25 | 601.4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-80 | 3 | 80 | 30 | 629.53 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-82 | 3 | 82 | 30 | 658.22 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-85 | 3 | 85 | 30 | 702.33 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-88 | 3 | 88 | 30 | 747.72 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-90 | 3 | 90 | 30 | 778.67 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-100 | 3 | 100 | 30 | 941.79 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-110 | 3 | 110 | 30 | 1118.61 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-120 | 3 | 120 | 30 | 1241.52 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-130 | 3 | 130 | 30 | 1350.7 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG3.0-50H | 3 | 50 | 20 | 717.45 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-52H | 3 | 52 | 20 | 752.3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-55H | 3 | 55 | 20 | 805.47 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-58H | 3 | 58 | 20 | 859.69 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-60H | 3 | 60 | 20 | 896.44 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-62H | 3 | 62 | 25 | 931.76 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-65H | 3 | 65 | 25 | 985.4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-68H | 3 | 68 | 25 | 1039.84 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-70H | 3 | 70 | 25 | 1076.56 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-72H | 3 | 72 | 25 | 1111.44 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-75H | 3 | 75 | 25 | 1164.19 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-78H | 3 | 78 | 25 | 1217.46 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-80H | 3 | 80 | 30 | 1253.26 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-82H | 3 | 82 | 30 | 1287.56 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-85H | 3 | 85 | 30 | 1339.29 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-88H | 3 | 88 | 30 | 1391.34 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-90H | 3 | 90 | 30 | 1426.23 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-100H | 3 | 100 | 30 | 1602.82 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-110H | 3 | 110 | 30 | 1770.66 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-120H | 3 | 120 | 30 | 1939.88 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-130H | 3 | 130 | 30 | 2110.46 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
PSG3.0-50S | 3 | 50 | 20 | 161.69 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-52S | 3 | 52 | 20 | 173.55 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-55S | 3 | 55 | 20 | 192.05 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-58S | 3 | 58 | 20 | 211.37 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-60S | 3 | 60 | 20 | 224.71 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-62S | 3 | 62 | 25 | 238.41 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-65S | 3 | 65 | 25 | 259.64 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-68S | 3 | 68 | 25 | 281.68 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-70S | 3 | 70 | 25 | 296.81 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-72S | 3 | 72 | 25 | 312.29 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-75S | 3 | 75 | 25 | 336.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-78S | 3 | 78 | 25 | 360.84 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-80S | 3 | 80 | 30 | 377.72 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-82S | 3 | 82 | 30 | 394.93 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-85S | 3 | 85 | 30 | 421.4 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-88S | 3 | 88 | 30 | 448.63 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-90S | 3 | 90 | 30 | 467.2 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-100S | 3 | 100 | 30 | 565.08 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-110S | 3 | 110 | 30 | 671.17 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-120S | 3 | 120 | 30 | 775.95 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-130S | 3 | 130 | 30 | 844.18 | AISI 303 (EN 1.4305) Stainless Steel |
PSG3.0-50SL | 3 | 50 | 20 | 125.76 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-52SL | 3 | 52 | 20 | 134.99 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-55SL | 3 | 55 | 20 | 149.37 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-58SL | 3 | 58 | 20 | 164.4 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-60SL | 3 | 60 | 20 | 174.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-62SL | 3 | 62 | 25 | 185.43 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-65SL | 3 | 65 | 25 | 201.95 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-68SL | 3 | 68 | 25 | 219.08 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-70SL | 3 | 70 | 25 | 230.85 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-72SL | 3 | 72 | 25 | 242.9 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-75SL | 3 | 75 | 25 | 261.47 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-78SL | 3 | 78 | 25 | 280.65 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-80SL | 3 | 80 | 30 | 293.78 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-82SL | 3 | 82 | 30 | 307.17 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-85SL | 3 | 85 | 30 | 327.76 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-88SL | 3 | 88 | 30 | 348.93 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-90SL | 3 | 90 | 30 | 363.38 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-100SL | 3 | 100 | 30 | 439.5 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-110SL | 3 | 110 | 30 | 522.02 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-120SL | 3 | 120 | 30 | 610.8 | AISI 316 (EN 1.4401) Stainless Steel |
PSG3.0-130SL | 3 | 130 | 30 | 666.91 | AISI 316 (EN 1.4401) Stainless Steel |
PSG4.0-18 | 4 | 18 | 14 | 86 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-20 | 4 | 20 | 16 | 120 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-22 | 4 | 22 | 16 | 132 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-24 | 4 | 24 | 16 | 144 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-25 | 4 | 25 | 20 | 150 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-30 | 4 | 30 | 24 | 233 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-32 | 4 | 32 | 24 | 249 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-35 | 4 | 35 | 24 | 272 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-36 | 4 | 36 | 28 | 280 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-38 | 4 | 38 | 30 | 296 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-40 | 4 | 40 | 36 | 397 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-42 | 4 | 42 | 36 | 417 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-45 | 4 | 45 | 40 | 447 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-46 | 4 | 46 | 40 | 457 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-48 | 4 | 48 | 42 | 477 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
PSG4.0-50 | 4 | 50 | 42 | 589 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
