PSG4.0-18

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG4.0-18

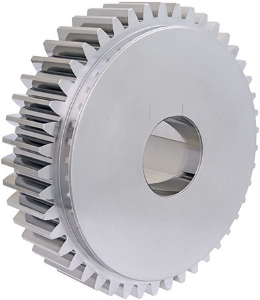

4.0 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]18
Torque T₂ [Nm] n1 100 r/min86
Ref. Diameter [d]72
Tip Diameter [da]80
Bore Diameter [di] H714
Hub Diameter [BD]42
Backlash (mm) jt.i (min)0.069
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²8.82 x 10-4
Mass [kg]1.311

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]18
Torque T₂ [Nm] n1 100 r/min86
Ref. Diameter [d]72
Tip Diameter [da]80
Bore Diameter [di] H714
Hub Diameter [BD]42
Backlash (mm) jt.i (min)0.069
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²8.82 x 10-4
Mass [kg]1.311
