PSG3.0-110SL Spur Gear

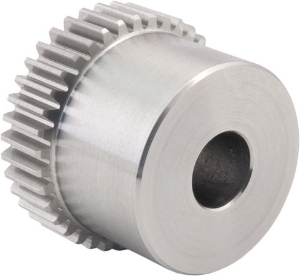

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG3.0-110SL Spur Gear

3.0 Module 316 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]110
Torque T₂ [Nm] n1 100 r/min522.02
Ref. Diameter [d]330
Tip Diameter [da]336
Bore Diameter [di] H730
Hub Diameter [BD]250
Backlash (mm) jt.i (min)0.130
Backlash (mm) jt.e (max)0.290
Inertia [I] kgm²3.70 x 10-1
Mass [kg]31.884

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]110
Torque T₂ [Nm] n1 100 r/min522.02
Ref. Diameter [d]330
Tip Diameter [da]336
Bore Diameter [di] H730
Hub Diameter [BD]250
Backlash (mm) jt.i (min)0.130
Backlash (mm) jt.e (max)0.290
Inertia [I] kgm²3.70 x 10-1
Mass [kg]31.884
