PSG2.5-20CI Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG2.5-20CI Spur Gear

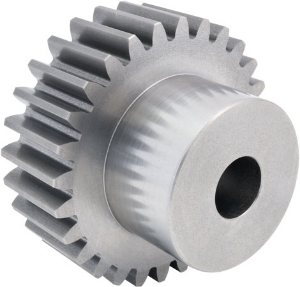

PSG2.5-20CI Spur Gear

2.5 Module Cast Iron Precision Spur Gears 20° PA Quality Grade 8e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PSG2.5-20CI Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG2.5-20CI Spur Gear

Product specifications

MaterialCast Iron GG25
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]20
Torque T₂ [Nm] n1 100 r/min14.51
Ref. Diameter [d]50
Tip Diameter [da]55
Bore Diameter [di] H714
Hub Diameter [BD]35
Backlash (mm) jt.i (min)0.051
Backlash (mm) jt.e (max)0.129
Inertia [I] kgm²1.38 x 10-4
Mass [kg]0.467

Product specifications

MaterialCast Iron GG25
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]20
Torque T₂ [Nm] n1 100 r/min14.51
Ref. Diameter [d]50
Tip Diameter [da]55
Bore Diameter [di] H714
Hub Diameter [BD]35
Backlash (mm) jt.i (min)0.051
Backlash (mm) jt.e (max)0.129
Inertia [I] kgm²1.38 x 10-4
Mass [kg]0.467
