PSG2.0-82 Spur Gear

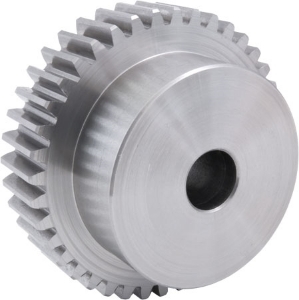

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG2.0-82 Spur Gear

2.0 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]82
Torque T₂ [Nm] n1 100 r/min211.34
Ref. Diameter [d]164
Tip Diameter [da]168
Bore Diameter [di] H725
Hub Diameter [BD]90
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²1.21 x 10-2
Mass [kg]4.143

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]82
Torque T₂ [Nm] n1 100 r/min211.34
Ref. Diameter [d]164
Tip Diameter [da]168
Bore Diameter [di] H725
Hub Diameter [BD]90
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²1.21 x 10-2
Mass [kg]4.143
