PSG2.0-27SL Spur Gear

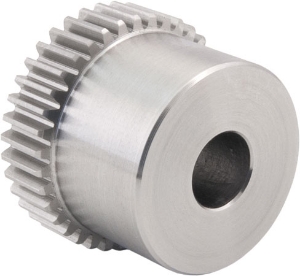

Ondrives Precision Gears and Gearboxes Part number PSG2.0-27SL Spur Gear

PSG2.0-27SL Spur Gear

2.0 Module 316 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PSG2.0-27SL Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG2.0-27SL Spur Gear

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]27
Torque T₂ [Nm] n1 100 r/min12.79
Ref. Diameter [d]54
Tip Diameter [da]58
Bore Diameter [di] H712
Hub Diameter [BD]35
Backlash (mm) jt.i (min)0.069
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²1.54 x 10-4
Mass [kg]0.471

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]27
Torque T₂ [Nm] n1 100 r/min12.79
Ref. Diameter [d]54
Tip Diameter [da]58
Bore Diameter [di] H712
Hub Diameter [BD]35
Backlash (mm) jt.i (min)0.069
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²1.54 x 10-4
Mass [kg]0.471
