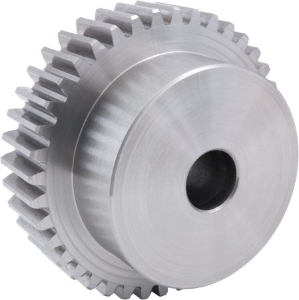

PSG1.5-52S Spur Gear
PSG1.5-52S Spur Gear
1.5 Module 303 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Product specifications
Material
AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN3967
7e25
Gear Tooth Type
Spur
Normal Module mn
1.5
Pressure Angle
20°
No. of Teeth [z]
52
Torque T₂ [Nm] n1 100 r/min
23.59
Ref. Diameter [d]
78
Tip Diameter [da]
81
Bore Diameter [di] H7
14
Hub Diameter [BD]
55
Backlash (mm) jt.i (min)
0.069
Backlash (mm) jt.e (max)
0.171
Inertia [I] kgm²
5.29 x 10-4
Mass [kg]
0.802
Specifications
Product PDF
Technical
Overview
Product specifications
Material
AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN3967
7e25
Gear Tooth Type
Spur
Normal Module mn
1.5
Pressure Angle
20°
No. of Teeth [z]
52
Torque T₂ [Nm] n1 100 r/min
23.59
Ref. Diameter [d]
78
Tip Diameter [da]
81
Bore Diameter [di] H7
14
Hub Diameter [BD]
55
Backlash (mm) jt.i (min)
0.069
Backlash (mm) jt.e (max)
0.171
Inertia [I] kgm²
5.29 x 10-4
Mass [kg]
0.802
