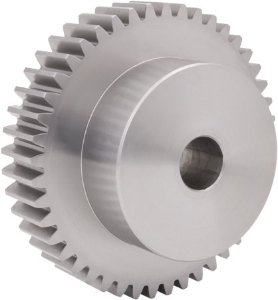

PSG1.5-50 Spur Gear

1.5 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)

Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material	817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN3967	7e25
Gear Tooth Type	Spur
Normal Module mn	1.5
Pressure Angle	20°
No. of Teeth [z]	50
Torque T₂ [Nm] n1 100 r/min	37.8
Ref. Diameter [d]	75
Tip Diameter [da]	78
Bore Diameter [di] H7	14
Hub Diameter [BD]	55
Backlash (mm) jt.i (min)	0.069
Backlash (mm) jt.e (max)	0.171
Inertia [I] kgm²	4.68 x 10-4
Mass [kg]	0.76
