PSG1.25-48DL Spur Gear

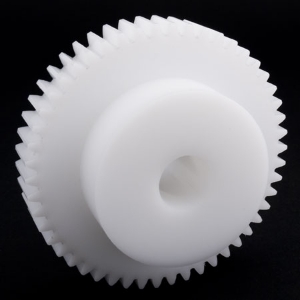

Ondrives Precision Gears and Gearboxes Part number PSG1.25-48DL Spur Gear

PSG1.25-48DL Spur Gear

1.25 Module Delrin POM (White) Precision Spur Gears 20° PA Quality Grade 8e25 DIN 3961/3967 (AGMA Q9)
Ondrives Precision Gears and Gearboxes Part number PSG1.25-48DL Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG1.25-48DL Spur Gear

Product specifications

MaterialDelrin POM
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn1.25
Pressure Angle20°
No. of Teeth [z]48
Torque T₂ [Nm] n1 100 r/min7.26
Ref. Diameter [d]60
Tip Diameter [da]62.5
Bore Diameter [di] H710
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.069
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²2.66 x 10-5
Mass [kg]0.069

Product specifications

MaterialDelrin POM
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn1.25
Pressure Angle20°
No. of Teeth [z]48
Torque T₂ [Nm] n1 100 r/min7.26
Ref. Diameter [d]60
Tip Diameter [da]62.5
Bore Diameter [di] H710
Hub Diameter [BD]40
Backlash (mm) jt.i (min)0.069
Backlash (mm) jt.e (max)0.171
Inertia [I] kgm²2.66 x 10-5
Mass [kg]0.069
