PSG10.0-40H

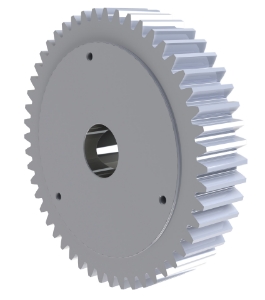

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG10.0-40H

10.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn10
Pressure Angle20°
No. of Teeth [z]40
Torque T₂ [Nm] n1 100 r/min18959
Ref. Diameter [d]400
Tip Diameter [da]420
Bore Diameter [di] H790
Hub Diameter [BD]350
Backlash (mm) jt.i (min)0.129
Backlash (mm) jt.e (max)0.291
Inertia [I] kgm²2.07
Mass [kg]99.79

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn10
Pressure Angle20°
No. of Teeth [z]40
Torque T₂ [Nm] n1 100 r/min18959
Ref. Diameter [d]400
Tip Diameter [da]420
Bore Diameter [di] H790
Hub Diameter [BD]350
Backlash (mm) jt.i (min)0.129
Backlash (mm) jt.e (max)0.291
Inertia [I] kgm²2.07
Mass [kg]99.79
