PSG1.0-30PK Spur Gear

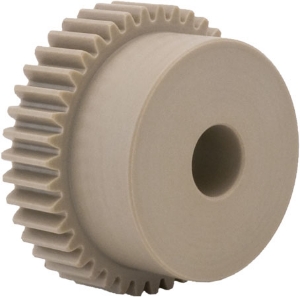

Ondrives Precision Gears and Gearboxes Part number PSG1.0-30PK Spur Gear

PSG1.0-30PK Spur Gear

1.0 Module PEEK GF30® (Light Brown) Precision Spur Gears 20° PA Quality Grade 8e25 DIN 3961/58405 (AGMA Q9)
Ondrives Precision Gears and Gearboxes Part number PSG1.0-30PK Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG1.0-30PK Spur Gear

Product specifications

MaterialPEEK GF30®
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]30
Torque T₂ [Nm] n1 100 r/min3.02
Ref. Diameter [d]30
Tip Diameter [da]32
Bore Diameter [di] H78
Hub Diameter [BD]25
Backlash (mm) jt.i (min)0.052
Backlash (mm) jt.e (max)0.128
Mass [kg]0.017

Product specifications

MaterialPEEK GF30®
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]30
Torque T₂ [Nm] n1 100 r/min3.02
Ref. Diameter [d]30
Tip Diameter [da]32
Bore Diameter [di] H78
Hub Diameter [BD]25
Backlash (mm) jt.i (min)0.052
Backlash (mm) jt.e (max)0.128
Mass [kg]0.017
