PSG0.8-72S Spur Gear

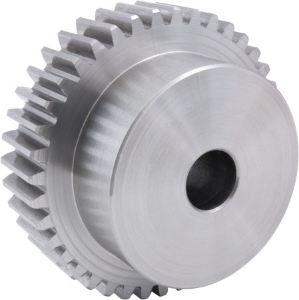

Ondrives Precision Gears and Gearboxes Part number PSG0.8-72S Spur Gear

PSG0.8-72S Spur Gear

0.8 Module 303 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)

Ondrives Precision Gears and Gearboxes Part number PSG0.8-72S Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG0.8-72S Spur Gear

Product specifications

Material	AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.8
Pressure Angle	20°
No. of Teeth [z]	72
Torque T₂ [Nm] n1 100 r/min	6.69
Ref. Diameter [d]	57.6
Tip Diameter [da]	59.2
Bore Diameter [di] H7	10
Hub Diameter [BD]	40
Backlash (mm) jt.i (min)	0.055
Backlash (mm) jt.e (max)	0.122
Inertia [I] kgm²	8.69 x 10-5
Mass [kg]	0.25

Product specifications

Material	AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.8
Pressure Angle	20°
No. of Teeth [z]	72
Torque T₂ [Nm] n1 100 r/min	6.69
Ref. Diameter [d]	57.6
Tip Diameter [da]	59.2
Bore Diameter [di] H7	10
Hub Diameter [BD]	40
Backlash (mm) jt.i (min)	0.055
Backlash (mm) jt.e (max)	0.122
Inertia [I] kgm²	8.69 x 10-5
Mass [kg]	0.25
