PSG0.5-75S Spur Gear

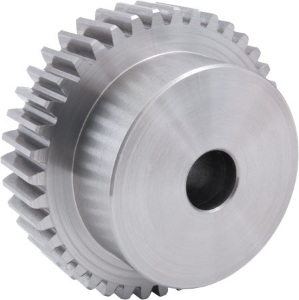

Ondrives Precision Gears and Gearboxes Part number PSG0.5-75S Spur Gear

PSG0.5-75S Spur Gear

0.5 Module 303 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (AGMA Q10

Ondrives Precision Gears and Gearboxes Part number PSG0.5-75S Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG0.5-75S Spur Gear

Product specifications

Material	AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	75
Torque T₂ [Nm] n1 100 r/min	1.87
Ref. Diameter [d]	37.5
Tip Diameter [da]	38.5
Bore Diameter [di] H7	8
Hub Diameter [BD]	20
Backlash (mm) jt.i (min)	0.044
Backlash (mm) jt.e (max)	0.098
Inertia [I] kgm²	8.75 x 10-6
Mass [kg]	0.062

Product specifications

Material	AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	75
Torque T₂ [Nm] n1 100 r/min	1.87
Ref. Diameter [d]	37.5
Tip Diameter [da]	38.5
Bore Diameter [di] H7	8
Hub Diameter [BD]	20
Backlash (mm) jt.i (min)	0.044
Backlash (mm) jt.e (max)	0.098
Inertia [I] kgm²	8.75 x 10-6
Mass [kg]	0.062
