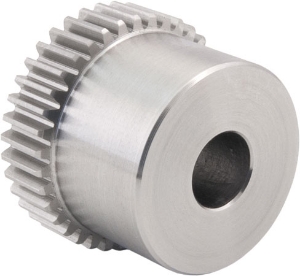

PSG0.5-28SL Spur Gear

0.5 Module 316 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)

Stainless Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Stainless Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material	AISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	28
Torque T₂ [Nm] n1 100 r/min	0.27
Ref. Diameter [d]	14
Tip Diameter [da]	15
Bore Diameter [di] H7	5
Hub Diameter [BD]	10
Backlash (mm) jt.i (min)	0.042
Backlash (mm) jt.e (max)	0.087
Inertia [I] kgm²	2.18 x 10-7
Mass [kg]	0.01

Product specifications

Material	AISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	28
Torque T₂ [Nm] n1 100 r/min	0.27
Ref. Diameter [d]	14
Tip Diameter [da]	15
Bore Diameter [di] H7	5
Hub Diameter [BD]	10
Backlash (mm) jt.i (min)	0.042
Backlash (mm) jt.e (max)	0.087
Inertia [I] kgm²	2.18 x 10-7
Mass [kg]	0.01
