PSG0.5-100H Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG0.5-100H Spur Gear

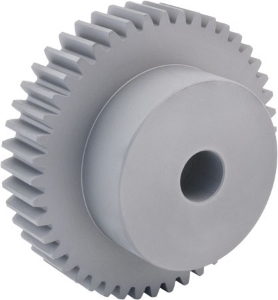

PSG0.5-100H Spur Gear

0.5 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PSG0.5-100H Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG0.5-100H Spur Gear

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]100
Torque T₂ [Nm] n1 100 r/min7.42
Ref. Diameter [d]50
Tip Diameter [da]51
Bore Diameter [di] H710
Hub Diameter [BD]30
Backlash (mm) jt.i (min)0.044
Backlash (mm) jt.e (max)0.098
Inertia [I] kgm²3.00 x 10-5
Mass [kg]0.123

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]100
Torque T₂ [Nm] n1 100 r/min7.42
Ref. Diameter [d]50
Tip Diameter [da]51
Bore Diameter [di] H710
Hub Diameter [BD]30
Backlash (mm) jt.i (min)0.044
Backlash (mm) jt.e (max)0.098
Inertia [I] kgm²3.00 x 10-5
Mass [kg]0.123
