UPSGS2.5-24H

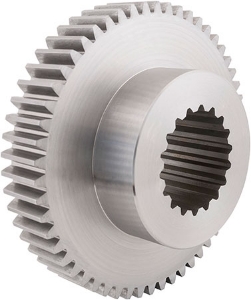

2.5 Module Case Hardened 805M20 (58-62HRC) Splined Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Product specifications

Quality DIN 3961 DIN3967	4f24
Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Gear Tooth Type	Spur Ground
Normal Module mn	2.5
Pressure Angle	20°
No. of Teeth [z]	24
Spline Din 5480 Gears	N25x1.25x30x18x9H
Torque T₂ [Nm] n1 100 r/min	175.80
Ref. Diameter [d]	60
Tip Diameter [da]	65
Hub Diameter [BD]	45
Backlash (mm) jt.i (min)	0.027
Backlash (mm) jt.e (max)	0.099
Inertia [I] kgm²	3.16 x 10-4
Mass kg	0.668
