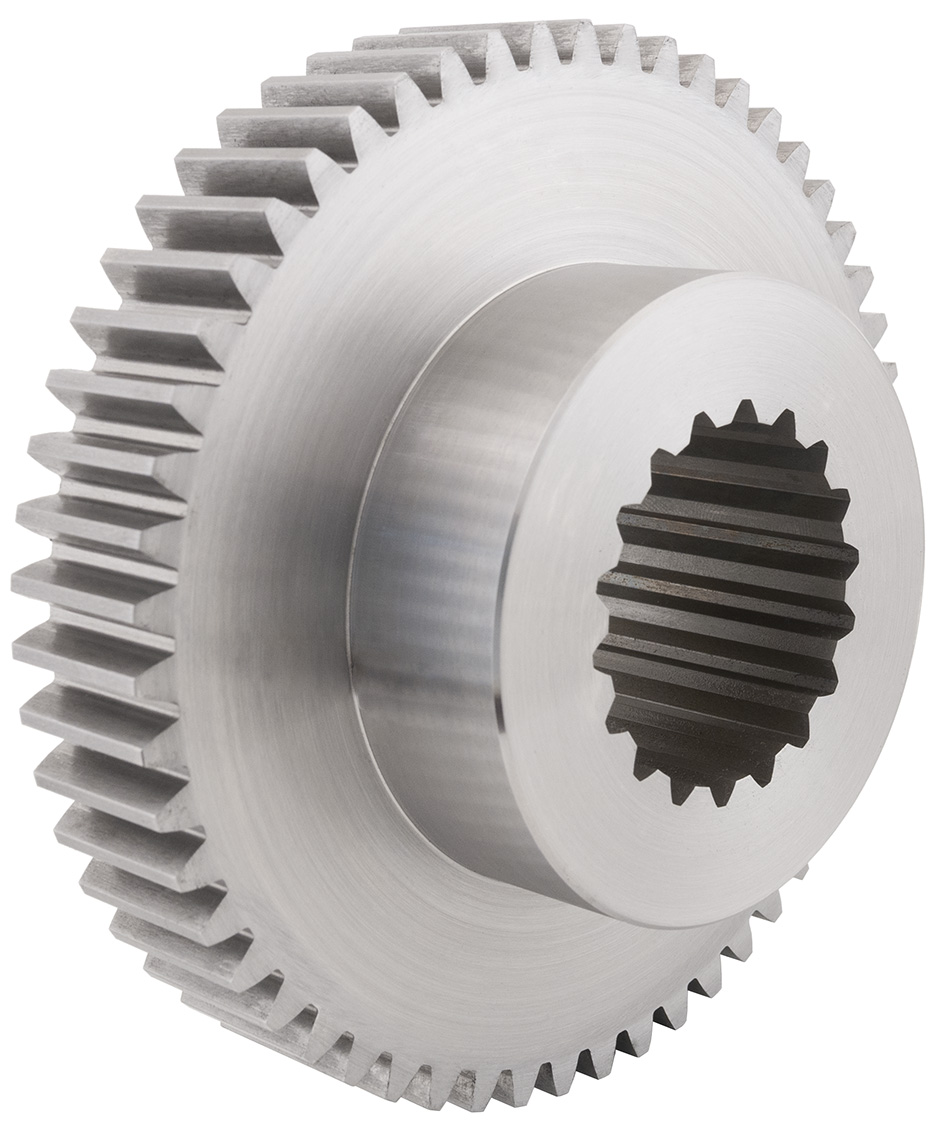

Splined Bore Ground Spur Gears

Sku
(Part No.)		Normal Module mn
No. of Teeth [z]
Torque T₂ [Nm] n1 100 r/min
Spline Din 5480 Gears
Material
UPSGS2.0-22H22270.62N20x1.25x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-23H22378.88N20x1.25x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-24H22487.58N20x1.25x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-25H22596.77N20x1.25x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-26H226104.64N20x1.25x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-28H228125.25N20x1.25x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-29H229136.28N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-30H230147.80N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-32H232172.33N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-35H235211.85N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-38H238254.05N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-40H240283.90N30x1.25x30x22x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-42H242315.50N30x1.25x30x22x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-45H245356.05N30x1.25x30x22x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-48H248380.92N30x1.25x30x22x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-50H250397.33N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-52H252413.58N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-55H255437.86N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-58H258461.45N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-60H260477.10N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-62H262492.60N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-65H265515.27N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-68H268537.85N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-70H270552.75N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-72H272567.45N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.0-22PH22256.50N20x1.25x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-23PH22363.10N20x1.25x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-24PH22470.06N20x1.25x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-25PH22577.42N20x1.25x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-26PH22683.71N20x1.25x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-28PH228100.20N20x1.25x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-29PH229109.02N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-30PH230118.24N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-32PH232137.86N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-35PH235169.48N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-38PH238203.24N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-40PH240227.12N30x1.25x30x22x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-42PH242252.40N30x1.25x30x22x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-45PH245284.84N30x1.25x30x22x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-48PH248304.74N30x1.25x30x22x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-50PH250317.86N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-52PH252330.86N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-55PH255350.14N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-58PH258369.16N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-60PH260381.68N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-62PH262394.08N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-65PH265412.22N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-68PH268430.28N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-70PH270442.20N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.0-72PH272453.96N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-24H2.524175.80N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-25H2.525194.20N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-26H2.526213.55N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-27H2.527233.80N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-28H2.528255.10N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-29H2.529277.30N35x2.00x30x16x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-30H2.530330.35N35x2.00x30x16x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-32H2.532347.00N35x2.00x30x16x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-35H2.535422.00N35x2.00x30x16x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-38H2.538504.50N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-40H2.540563.70N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-42H2.542626.30N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-45H2.545692.40N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-48H2.548740.35N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-50H2.550771.90N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-52H2.552803.20N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-55H2.555849.46N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-58H2.558894.95N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS2.5-24PH2.524140.64N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-25PH2.525155.36N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-26PH2.526170.84N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-27PH2.527187.04N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-28PH2.528204.08N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-29PH2.529221.84N35x2.00x30x16x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-30PH2.530240.28N35x2.00x30x16x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-32PH2.532277.60N35x2.00x30x16x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-35PH2.535337.60N35x2.00x30x16x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-38PH2.538403.60N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-40PH2.540450.96N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-42PH2.542501.04N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-45PH2.545553.92N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-48PH2.548592.28N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-50PH2.550617.52N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-52PH2.552642.56N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-55PH2.55570.62N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS2.5-58PH2.558715.96N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-20H320203.12N25x1.25x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-22H322257.19N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-23H323286.65N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-24H324317.80N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-25H325350.60N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-26H326385.05N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-27H327418.70N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-28H328453.75N32x2.00x30x14x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-29H329490.20N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-30H330528.22N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-32H332608.50N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-35H335739.80N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-38H338884.40N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-40H340988N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-42H3421097.50N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-45H3451192.45N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-48H3481274.50N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-20PH320162.50N25x1.25x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-22PH322205.75N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-23PH323229.32N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-24PH324254.24N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-25PH325280.48N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-26PH326308.04N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-27PH327334.96N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-28PH328363.00N32x2.00x30x14x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-29PH329492.16N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-30PH330422.58N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-32PH332486.80N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
UPSGS3.0-35PH335591.84N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-38PH338707.52N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-40PH340790.40N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-42PH342878.00N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-45PH345953.96N40x2.00x30x18x9H17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
UPSGS3.0-48PH3481019.60N40x2.00x30x18x9H805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
;
;
