UPSGS2.0-45H

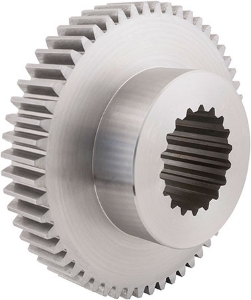

2.0 Module Case Hardened 805M20 (58-62HRC) Splined Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Product specifications

Quality DIN 3961 DIN3967	4f24
Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Gear Tooth Type	Spur Ground
Normal Module mn	2
Pressure Angle	20°
No. of Teeth [z]	45
Spline Din 5480 Gears	N30x1.25x30x22x9H
Torque T₂ [Nm] n1 100 r/min	356.05
Ref. Diameter [d]	90
Tip Diameter [da]	94
Hub Diameter [BD]	55
Backlash (mm) jt.i (min)	0.025
Backlash (mm) jt.e (max)	0.101
Inertia [I] kgm²	1.12 x 10-3
Mass kg	1.141

Quality DIN 3961 DIN3967	4f24
Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Gear Tooth Type	Spur Ground
Normal Module mn	2
Pressure Angle	20°
No. of Teeth [z]	45
Spline Din 5480 Gears	N30x1.25x30x22x9H
Torque T₂ [Nm] n1 100 r/min	356.05
Ref. Diameter [d]	90
Tip Diameter [da]	94
Hub Diameter [BD]	55
Backlash (mm) jt.i (min)	0.025
Backlash (mm) jt.e (max)	0.101
Inertia [I] kgm²	1.12 x 10-3
Mass kg	1.141
