SCS8-76

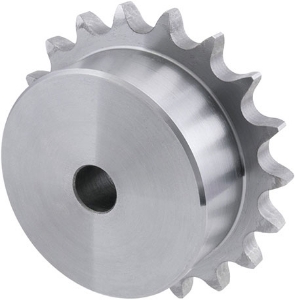

Ondrives Precision Gears and Gearboxes Part number SCS8-76

SCS8-76

Bossed Cast Iron GG20 Simplex Sprockets, 8mm Pitch (ISO 05B-1), 5mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number SCS8-76 Ondrives Precision Gears and Gearboxes Part number SCS8-76

Product specifications

MaterialCast Iron GG20
ISO No.05B-1
Pitch/Lead8
No. of Teeth [z]76
Tip Diameter [de]196.7
Ref. Diameter [dp]193.59
Hub Diameter [BD]80
Bore Diameter [di]20
Sprocket Width [E]34
Mass [kg]1.94

Product specifications

MaterialCast Iron GG20
ISO No.05B-1
Pitch/Lead8
No. of Teeth [z]76
Tip Diameter [de]196.7
Ref. Diameter [dp]193.59
Hub Diameter [BD]80
Bore Diameter [di]20
Sprocket Width [E]34
Mass [kg]1.94
