RTK-M-65

Ondrives Precision Gears and Gearboxes Part number RTK-M-65

RTK-M-65

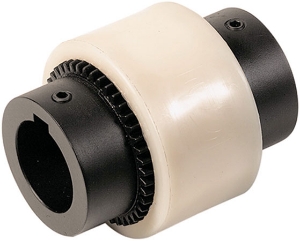

Bowex Toothed Driven Coupling with Steel Hubs, Double Cardonic Curved Tooth, Nylon Sleeve
Ondrives Precision Gears and Gearboxes Part number RTK-M-65 Ondrives Precision Gears and Gearboxes Part number RTK-M-65 Ondrives Precision Gears and Gearboxes Part number RTK-M-65

Product specifications

Max. Bore Diameter [d1] & [d2]65
Dimension [L1]55
Dimension [b]55
Dimension [E]4
Dimension [L]114
Dimension [LH]68
Dimension [M]23
Dimension [N]23
Dimension [L3]16
Diameter [D]96
Diameter [DH]132
Set ScrewM10
Dimension [T]15
Max. Speed [rpm]4000
Torque (Nm)380
Max. Torque (Nm)1140
Max. Axial Displacement±1
Radial Displacement at 1500 rpm (mm)±0.45
Angular Displacement at 1500 rpm [a°]±0.7°
Mass kg4.35
Coupling Size65

Product specifications

Max. Bore Diameter [d1] & [d2]65
Dimension [L1]55
Dimension [b]55
Dimension [E]4
Dimension [L]114
Dimension [LH]68
Dimension [M]23
Dimension [N]23
Dimension [L3]16
Diameter [D]96
Diameter [DH]132
Set ScrewM10
Dimension [T]15
Max. Speed [rpm]4000
Torque (Nm)380
Max. Torque (Nm)1140
Max. Axial Displacement±1
Radial Displacement at 1500 rpm (mm)±0.45
Angular Displacement at 1500 rpm [a°]±0.7°
Mass kg4.35
Coupling Size65
