RTK-M-19

Ondrives Precision Gears and Gearboxes Part number RTK-M-19

RTK-M-19

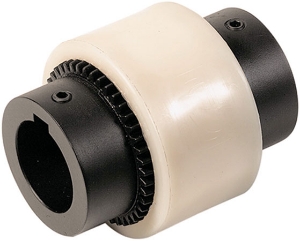

Bowex Toothed Driven Coupling with Steel Hubs, Double Cardonic Curved Tooth, Nylon Sleeve
Ondrives Precision Gears and Gearboxes Part number RTK-M-19 Ondrives Precision Gears and Gearboxes Part number RTK-M-19 Ondrives Precision Gears and Gearboxes Part number RTK-M-19

Product specifications

Max. Bore Diameter [d1] & [d2]20
Dimension [L1]25
Dimension [b]25
Dimension [E]4
Dimension [L]54
Dimension [LH]37
Dimension [M]8.50
Dimension [N]8.5
Dimension [L3]10
Diameter [D]32
Diameter [DH]47
Set ScrewM5
Dimension [T]6
Max. Speed [rpm]11800
Torque (Nm)16
Max. Torque (Nm)48
Max. Axial Displacement±1
Radial Displacement at 1500 rpm (mm)±0.30
Angular Displacement at 1500 rpm [a°]±1.0°
Max. Moment of Inertia (kgcm²)0.47
Mass [kg]0.23
Coupling Size19

Product specifications

Max. Bore Diameter [d1] & [d2]20
Dimension [L1]25
Dimension [b]25
Dimension [E]4
Dimension [L]54
Dimension [LH]37
Dimension [M]8.50
Dimension [N]8.5
Dimension [L3]10
Diameter [D]32
Diameter [DH]47
Set ScrewM5
Dimension [T]6
Max. Speed [rpm]11800
Torque (Nm)16
Max. Torque (Nm)48
Max. Axial Displacement±1
Radial Displacement at 1500 rpm (mm)±0.30
Angular Displacement at 1500 rpm [a°]±1.0°
Max. Moment of Inertia (kgcm²)0.47
Mass [kg]0.23
Coupling Size19
