RTE-90-98

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-90-98

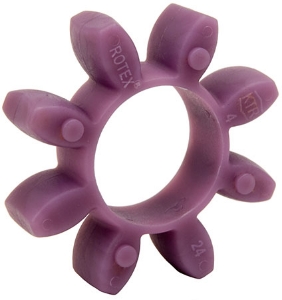

Rotex® Purple Spider, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)3600
Max. Torque (Nm)7200
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement3.4
Max. Parallel Offset at 1500 rpm0.50
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm4.30 mm
Coupling Size90

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)3600
Max. Torque (Nm)7200
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement3.4
Max. Parallel Offset at 1500 rpm0.50
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm4.30 mm
Coupling Size90
