RTE-65-92

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-65-92

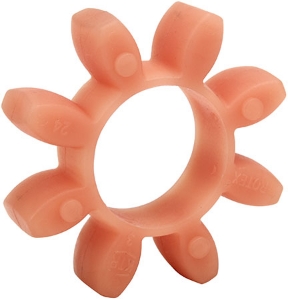

Rotex® Orange Spider, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)625
Max. Torque (Nm)1250
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2.6
Max. Parallel Offset at 1500 rpm0.42
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm2.70 mm
Coupling Size65

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)625
Max. Torque (Nm)1250
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2.6
Max. Parallel Offset at 1500 rpm0.42
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm2.70 mm
Coupling Size65
