RTE-55-64

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-55-64

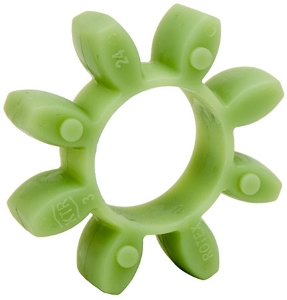

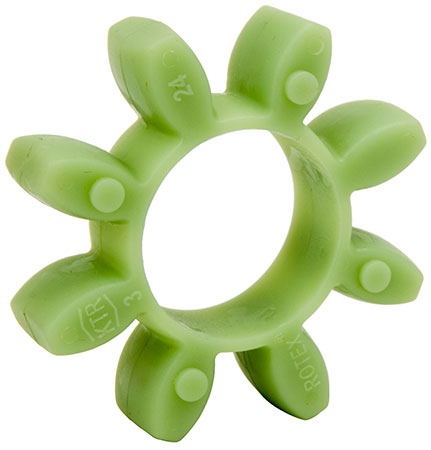

Rotex® Green Spider, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness64 Sh-D
Torque (Nm)825
Max. Torque (Nm)1650
Torsion Angle Rated Tkn2.5°
Torsion Angle Rated Tkn Max3.6°
Max. Axial Displacement2.2
Max. Parallel Offset at 1500 rpm0.27
Max. Angular Offset1.0°
Max. Angular Offset at 1500 rpm2.00 mm
Coupling Size55

Product specifications

Shore Hardness64 Sh-D
Torque (Nm)825
Max. Torque (Nm)1650
Torsion Angle Rated Tkn2.5°
Torsion Angle Rated Tkn Max3.6°
Max. Axial Displacement2.2
Max. Parallel Offset at 1500 rpm0.27
Max. Angular Offset1.0°
Max. Angular Offset at 1500 rpm2.00 mm
Coupling Size55
