RTE-48-98

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-48-98

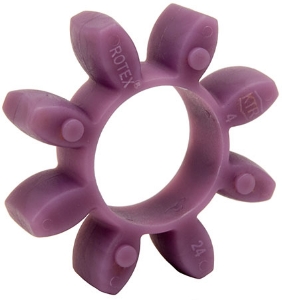

Rotex® Purple Spider, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2.1
Max. Parallel Offset at 1500 rpm0.36
Max. Angular Offset1.1°
Max. Angular Offset at 1500 rpm2.00 mm
Coupling Size48

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2.1
Max. Parallel Offset at 1500 rpm0.36
Max. Angular Offset1.1°
Max. Angular Offset at 1500 rpm2.00 mm
Coupling Size48
