RTE-48-92

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-48-92

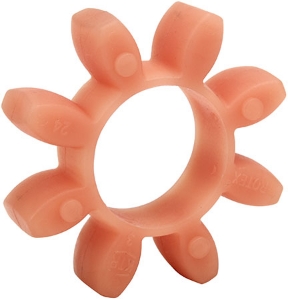

Rotex® Orange Spider, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)310
Max. Torque (Nm)620
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2.1
Max. Parallel Offset at 1500 rpm0.36
Max. Angular Offset1.1°
Max. Angular Offset at 1500 rpm2.00 mm
Coupling Size48

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)310
Max. Torque (Nm)620
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2.1
Max. Parallel Offset at 1500 rpm0.36
Max. Angular Offset1.1°
Max. Angular Offset at 1500 rpm2.00 mm
Coupling Size48
