RTE-42-98

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-42-98

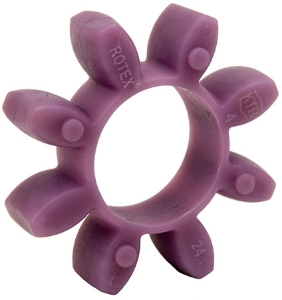

Rotex® Purple Spider, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)450
Max. Torque (Nm)900
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2
Max. Parallel Offset at 1500 rpm0.32
Max. Angular Offset1.0°
Max. Angular Offset at 1500 rpm1.70 mm
Coupling Size42

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)450
Max. Torque (Nm)900
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement2
Max. Parallel Offset at 1500 rpm0.32
Max. Angular Offset1.0°
Max. Angular Offset at 1500 rpm1.70 mm
Coupling Size42
