RTE-38-98

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-38-98

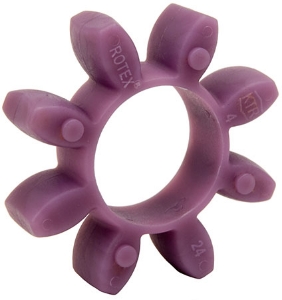

Rotex® Purple Spider, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)325
Max. Torque (Nm)650
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement1.8
Max. Parallel Offset at 1500 rpm0.28
Max. Angular Offset1.0°
Max. Angular Offset at 1500 rpm1.35 mm
Coupling Size38

Product specifications

Shore Hardness98 Sh-A
Torque (Nm)325
Max. Torque (Nm)650
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement1.8
Max. Parallel Offset at 1500 rpm0.28
Max. Angular Offset1.0°
Max. Angular Offset at 1500 rpm1.35 mm
Coupling Size38
