RTE-28-92

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-28-92

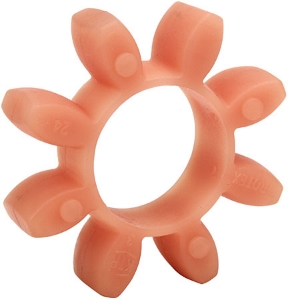

Rotex® Orange Spider, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)95
Max. Torque (Nm)190
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement1.5
Max. Parallel Offset at 1500 rpm0.25
Max. Angular Offset0.9°
Max. Angular Offset at 1500 rpm1.05 mm
Coupling Size28

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)95
Max. Torque (Nm)190
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement1.5
Max. Parallel Offset at 1500 rpm0.25
Max. Angular Offset0.9°
Max. Angular Offset at 1500 rpm1.05 mm
Coupling Size28
