RTE-24-64

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-24-64

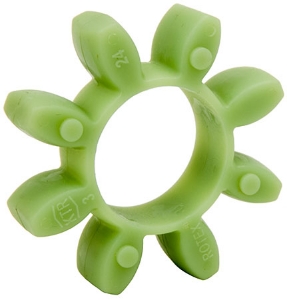

Rotex® Green Spider, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness64 Sh-D
Torque (Nm)75
Max. Torque (Nm)150
Torsion Angle Rated Tkn2.5°
Torsion Angle Rated Tkn Max3.6°
Max. Axial Displacement1.4
Max. Parallel Offset at 1500 rpm0.15
Max. Angular Offset0.8°
Max. Angular Offset at 1500 rpm0.77 mm
Coupling Size24

Product specifications

Shore Hardness64 Sh-D
Torque (Nm)75
Max. Torque (Nm)150
Torsion Angle Rated Tkn2.5°
Torsion Angle Rated Tkn Max3.6°
Max. Axial Displacement1.4
Max. Parallel Offset at 1500 rpm0.15
Max. Angular Offset0.8°
Max. Angular Offset at 1500 rpm0.77 mm
Coupling Size24
