RTE-19-92

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-19-92

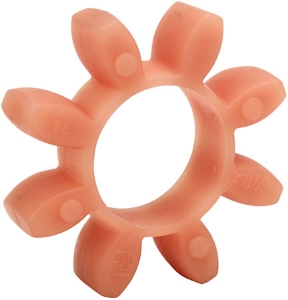

Rotex® Orange Spider, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)10
Max. Torque (Nm)20
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement1.2
Max. Parallel Offset at 1500 rpm0.20
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm0.82 mm
Coupling Size19

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)10
Max. Torque (Nm)20
Torsion Angle Rated Tkn3.2°
Torsion Angle Rated Tkn Max5°
Max. Axial Displacement1.2
Max. Parallel Offset at 1500 rpm0.20
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm0.82 mm
Coupling Size19
