RTE-19-64

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-19-64

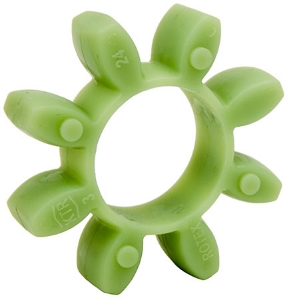

Rotex® Green Spider, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness64 Sh-D
Torque (Nm)21
Max. Torque (Nm)42
Torsion Angle Rated Tkn2.5°
Torsion Angle Rated Tkn Max3.6°
Max. Axial Displacement1.2
Max. Parallel Offset at 1500 rpm0.13
Max. Angular Offset1.1°
Max. Angular Offset at 1500 rpm0.77 mm
Coupling Size19

Product specifications

Shore Hardness64 Sh-D
Torque (Nm)21
Max. Torque (Nm)42
Torsion Angle Rated Tkn2.5°
Torsion Angle Rated Tkn Max3.6°
Max. Axial Displacement1.2
Max. Parallel Offset at 1500 rpm0.13
Max. Angular Offset1.1°
Max. Angular Offset at 1500 rpm0.77 mm
Coupling Size19
