RTE-14-92

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-14-92

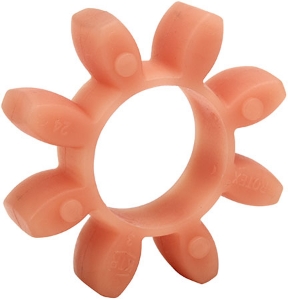

Rotex® Orange Spider, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)7.5
Max. Torque (Nm)15
Torsion Angle Rated Tkn6.4°
Torsion Angle Rated Tkn Max10°
Max. Axial Displacement1
Max. Parallel Offset at 1500 rpm0.17
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm0.67 mm
Coupling Size14

Product specifications

Shore Hardness92 Sh-A
Torque (Nm)7.5
Max. Torque (Nm)15
Torsion Angle Rated Tkn6.4°
Torsion Angle Rated Tkn Max10°
Max. Axial Displacement1
Max. Parallel Offset at 1500 rpm0.17
Max. Angular Offset1.2°
Max. Angular Offset at 1500 rpm0.67 mm
Coupling Size14
