RTE-SS-24-64-1A-1A

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SS-24-64-1A-1A

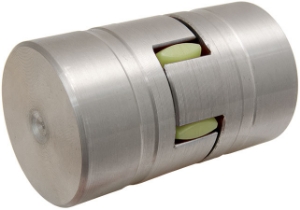

Rotex® Torsionally Flexible Stainless Steel Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Dimension [L]78
Dimension [L1]30
Dimension [b]30
Dimension [E]18
Dimension [b]14
Dimension [S]2
Dimension [DH]55
Dimension [dH]27
Dimension [D1]55
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1a - 1a
Shore Hardness64 Sh-D
Torque (Nm)75
Max. Torque (Nm)150
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]35
Coupling Size24

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Dimension [L]78
Dimension [L1]30
Dimension [b]30
Dimension [E]18
Dimension [b]14
Dimension [S]2
Dimension [DH]55
Dimension [dH]27
Dimension [D1]55
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1a - 1a
Shore Hardness64 Sh-D
Torque (Nm)75
Max. Torque (Nm)150
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]35
Coupling Size24
