RTE-SL-65-98-1-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-65-98-1-1B

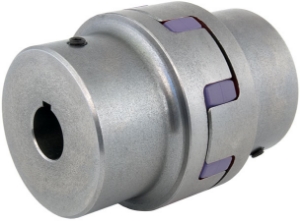

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]210
Dimension [L1]75
Dimension [b]100
Dimension [E]35
Dimension [b]26
Dimension [S]4.5
Dimension [DH]135
Dimension [dH]68
Dimension [D]115
Dimension [D1]135
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1 - 1b
Shore Hardness98 Sh-A
Torque (Nm)940
Max. Torque (Nm)1880
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]80
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]80
Coupling Size65

Product specifications

MaterialSteel 11SMn30C
Dimension [L]210
Dimension [L1]75
Dimension [b]100
Dimension [E]35
Dimension [b]26
Dimension [S]4.5
Dimension [DH]135
Dimension [dH]68
Dimension [D]115
Dimension [D1]135
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1 - 1b
Shore Hardness98 Sh-A
Torque (Nm)940
Max. Torque (Nm)1880
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]80
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]80
Coupling Size65
