RTE-SL-65-92-1-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-65-92-1-1B

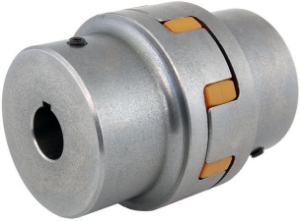

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]210
Dimension [L1]75
Dimension [b]100
Dimension [E]35
Dimension [b]26
Dimension [S]4.5
Dimension [DH]135
Dimension [dH]68
Dimension [D]115
Dimension [D1]135
Dimension [N]47
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1 - 1b
Shore Hardness92 Sh-A
Torque (Nm)625
Max. Torque (Nm)1250
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]80
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]80
Coupling Size65

Product specifications

MaterialSteel 11SMn30C
Dimension [L]210
Dimension [L1]75
Dimension [b]100
Dimension [E]35
Dimension [b]26
Dimension [S]4.5
Dimension [DH]135
Dimension [dH]68
Dimension [D]115
Dimension [D1]135
Dimension [N]47
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1 - 1b
Shore Hardness92 Sh-A
Torque (Nm)625
Max. Torque (Nm)1250
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]80
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]80
Coupling Size65
