RTE-SL-55-64-1B-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-55-64-1B-1B

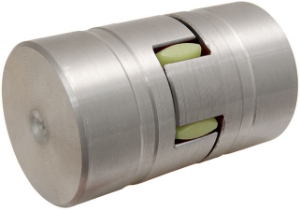

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]210
Dimension [L1]90
Dimension [b]90
Dimension [E]30
Dimension [b]22
Dimension [S]4
Dimension [DH]120
Dimension [dH]60
Dimension [D1]120
Dimension [N]37
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1b - 1b
Shore Hardness64 Sh-D
Torque (Nm)825
Max. Torque (Nm)1650
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]74
Coupling Size55

Product specifications

MaterialSteel 11SMn30C
Dimension [L]210
Dimension [L1]90
Dimension [b]90
Dimension [E]30
Dimension [b]22
Dimension [S]4
Dimension [DH]120
Dimension [dH]60
Dimension [D1]120
Dimension [N]37
Thread [G]M10
Dimension [t]20
Tightening Torque TA Nm17
Hub Combination1b - 1b
Shore Hardness64 Sh-D
Torque (Nm)825
Max. Torque (Nm)1650
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]74
Coupling Size55
