RTE-SL-48-98-1-1

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-48-98-1-1

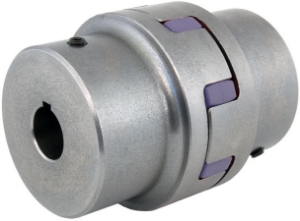

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]140
Dimension [L1]56
Dimension [b]56
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D]95
Dimension [N]32
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]62
Coupling Size48

Product specifications

MaterialSteel 11SMn30C
Dimension [L]140
Dimension [L1]56
Dimension [b]56
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D]95
Dimension [N]32
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1
Shore Hardness98 Sh-A
Torque (Nm)525
Max. Torque (Nm)1050
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]62
Coupling Size48
