RTE-SL-48-64-1-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-48-64-1-1B

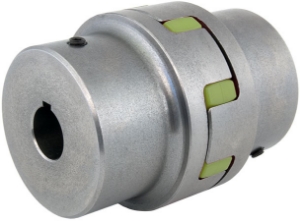

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]164
Dimension [L1]56
Dimension [b]80
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D]95
Dimension [D1]105
Dimension [N]32
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1b
Shore Hardness64 Sh-D
Torque (Nm)655
Max. Torque (Nm)1310
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]62
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]62
Coupling Size48

Product specifications

MaterialSteel 11SMn30C
Dimension [L]164
Dimension [L1]56
Dimension [b]80
Dimension [E]28
Dimension [b]21
Dimension [S]3.5
Dimension [DH]105
Dimension [dH]51
Dimension [D]95
Dimension [D1]105
Dimension [N]32
Thread [G]M8
Dimension [t]20
Tightening Torque TA Nm10
Hub Combination1 - 1b
Shore Hardness64 Sh-D
Torque (Nm)655
Max. Torque (Nm)1310
Hub 1 Min. Bore Diameter [d]Blank
Hub 1 Max. Bore Diameter [d]62
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]62
Coupling Size48
