RTE-SL-38-92-1B-1B

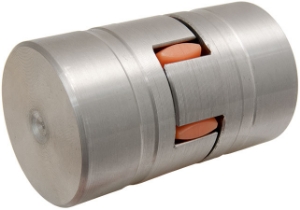

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-38-92-1B-1B

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]164
Dimension [L1]70
Dimension [b]70
Dimension [E]24
Dimension [b]18
Dimension [S]3
Dimension [DH]80
Dimension [dH]38
Dimension [D1]80
Dimension [N]27
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)190
Max. Torque (Nm)380
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]48
Coupling Size38

Product specifications

MaterialSteel 11SMn30C
Dimension [L]164
Dimension [L1]70
Dimension [b]70
Dimension [E]24
Dimension [b]18
Dimension [S]3
Dimension [DH]80
Dimension [dH]38
Dimension [D1]80
Dimension [N]27
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)190
Max. Torque (Nm)380
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]48
Coupling Size38
