RTE-SL-28-92-1B-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

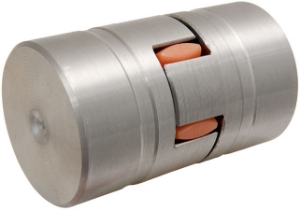

RTE-SL-28-92-1B-1B

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]140
Dimension [L1]60
Dimension [b]60
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]65
Dimension [dH]30
Dimension [D1]65
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)95
Max. Torque (Nm)190
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]40
Coupling Size28

Product specifications

MaterialSteel 11SMn30C
Dimension [L]140
Dimension [L1]60
Dimension [b]60
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]65
Dimension [dH]30
Dimension [D1]65
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)95
Max. Torque (Nm)190
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]40
Coupling Size28
