RTE-SL-28-64-1A-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

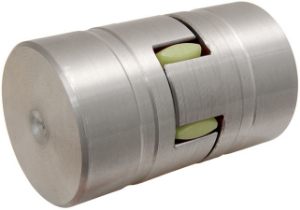

RTE-SL-28-64-1A-1B

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]115
Dimension [L1]35
Dimension [b]60
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]65
Dimension [dH]30
Dimension [D1]65
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1a - 1b
Shore Hardness64 Sh-D
Torque (Nm)200
Max. Torque (Nm)400
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]40
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]40
Coupling Size28

Product specifications

MaterialSteel 11SMn30C
Dimension [L]115
Dimension [L1]35
Dimension [b]60
Dimension [E]20
Dimension [b]15
Dimension [S]2.5
Dimension [DH]65
Dimension [dH]30
Dimension [D1]65
Thread [G]M8
Dimension [t]15
Tightening Torque TA Nm10
Hub Combination1a - 1b
Shore Hardness64 Sh-D
Torque (Nm)200
Max. Torque (Nm)400
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]40
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]40
Coupling Size28
