RTE-SL-24-98-1A-1A

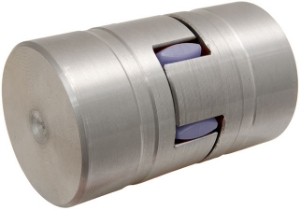

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-24-98-1A-1A

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 98 Sh-A

Product specifications

MaterialSteel 11SMn30C
Dimension [L]78
Dimension [L1]30
Dimension [b]30
Dimension [E]18
Dimension [b]14
Dimension [S]2
Dimension [DH]55
Dimension [dH]27
Dimension [D1]55
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1a - 1a
Shore Hardness98 Sh-A
Torque (Nm)60
Max. Torque (Nm)120
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]35
Coupling Size24

Product specifications

MaterialSteel 11SMn30C
Dimension [L]78
Dimension [L1]30
Dimension [b]30
Dimension [E]18
Dimension [b]14
Dimension [S]2
Dimension [DH]55
Dimension [dH]27
Dimension [D1]55
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1a - 1a
Shore Hardness98 Sh-A
Torque (Nm)60
Max. Torque (Nm)120
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]35
Coupling Size24
