RTE-SL-19-92-1B-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-19-92-1B-1B

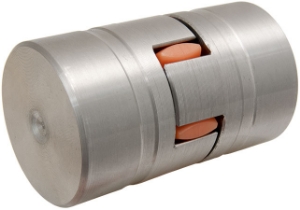

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 92 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]90
Dimension [L1]37
Dimension [b]37
Dimension [E]16
Dimension [b]12
Dimension [S]2
Dimension [DH]40
Dimension [dH]18
Dimension [D1]40
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)10
Max. Torque (Nm)20
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]25
Coupling Size19

Product specifications

MaterialSteel 11SMn30C
Dimension [L]90
Dimension [L1]37
Dimension [b]37
Dimension [E]16
Dimension [b]12
Dimension [S]2
Dimension [DH]40
Dimension [dH]18
Dimension [D1]40
Thread [G]M5
Dimension [t]10
Tightening Torque TA Nm2
Hub Combination1b - 1b
Shore Hardness92 Sh-A
Torque (Nm)10
Max. Torque (Nm)20
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]25
Coupling Size19
