RTE-SL-14-98-1A-1B

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-14-98-1A-1B

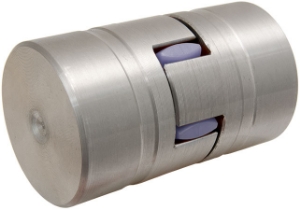

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 98 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]42.5
Dimension [L1]11
Dimension [b]18.5
Dimension [E]13
Dimension [b]10
Dimension [S]1.5
Dimension [DH]30
Dimension [dH]10
Dimension [D1]30
Thread [G]M4
Dimension [t]5
Tightening Torque TA Nm1.5
Hub Combination1a - 1b
Shore Hardness98 Sh-A
Torque (Nm)12.5
Max. Torque (Nm)25
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]16
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]16
Coupling Size14

Product specifications

MaterialSteel 11SMn30C
Dimension [L]42.5
Dimension [L1]11
Dimension [b]18.5
Dimension [E]13
Dimension [b]10
Dimension [S]1.5
Dimension [DH]30
Dimension [dH]10
Dimension [D1]30
Thread [G]M4
Dimension [t]5
Tightening Torque TA Nm1.5
Hub Combination1a - 1b
Shore Hardness98 Sh-A
Torque (Nm)12.5
Max. Torque (Nm)25
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]16
Hub 1b Min. Bore Diameter [d]Blank
Hub 1b Max. Bore Diameter [d]16
Coupling Size14
