RTE-SL-14-64-1A-1A

rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

RTE-SL-14-64-1A-1A

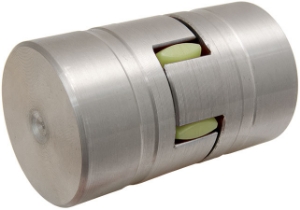

Rotex® Torsionally Flexible Steel Coupling, Shore Hardness 64 Sh-A
rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer rotex coupling servo Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 11SMn30C
Dimension [L]35
Dimension [L1]11
Dimension [b]11
Dimension [E]13
Dimension [b]10
Dimension [S]1.5
Dimension [DH]30
Dimension [dH]10
Dimension [D1]30
Thread [G]M4
Dimension [t]5
Tightening Torque TA Nm1.5
Hub Combination1a - 1a
Shore Hardness64 Sh-D
Torque (Nm)16
Max. Torque (Nm)32
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]16
Coupling Size14

Product specifications

MaterialSteel 11SMn30C
Dimension [L]35
Dimension [L1]11
Dimension [b]11
Dimension [E]13
Dimension [b]10
Dimension [S]1.5
Dimension [DH]30
Dimension [dH]10
Dimension [D1]30
Thread [G]M4
Dimension [t]5
Tightening Torque TA Nm1.5
Hub Combination1a - 1a
Shore Hardness64 Sh-D
Torque (Nm)16
Max. Torque (Nm)32
Hub 1a Min. Bore Diameter [d]Blank
Hub 1a Max. Bore Diameter [d]16
Coupling Size14
